Product Description

Optical Material: UV Fused Silica
High Damage Threshold
Application: Light Path Deflection
Working Wavelengths: 262 nm-268 nm, 349 nm-358 nm, 523 nm-537 nm, 1046 nm-1074 nm optional

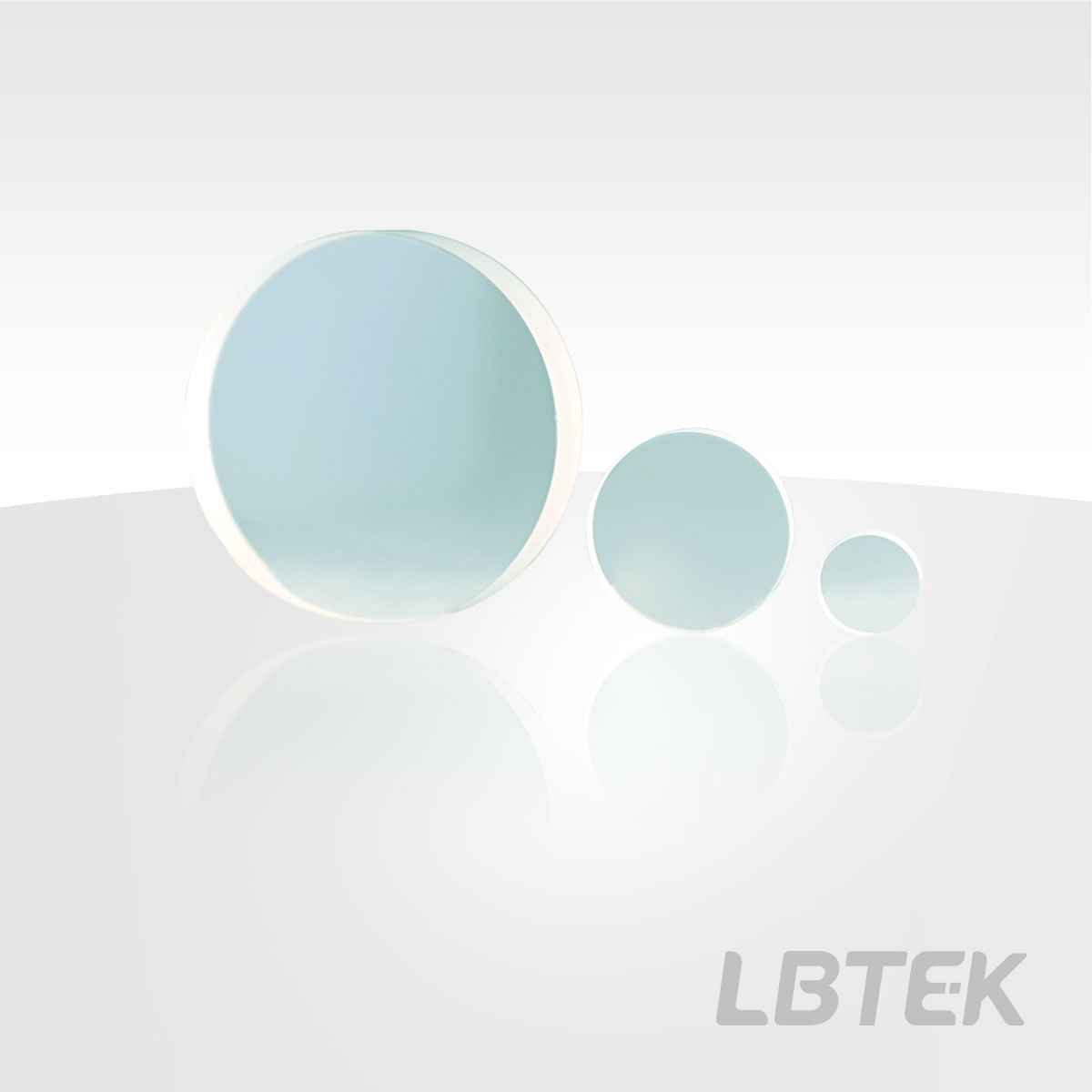

The LBTEK Nd:YAG laser line mirrors are manufactured using high-purity UV fused silica and ultra-high laser-induced damage threshold (LIDT) dielectric coatings, capable of withstanding high-energy pulses with superior damage thresholds. Designed for the fundamental, second, third, and fourth harmonics of Nd:YAG lasers, LBTEK's Nd:YAG laser line mirrors feature UV fused silica substrates that offer better uniformity and lower thermal expansion coefficients. This ensures superior performance under temperature fluctuations and enhanced resistance to environmental influences. The LBTEK high-power laser line mirrors operate at wavelengths of 262 nm-268 nm, 349 nm-358 nm, 523 nm-537 nm, and 1046 nm-1074 nm, with an incident angle range of 0° to 45°. They achieve reflectivity exceeding 99% for both S- and P-polarized light.

Attribute

Optical component materialUV fused silica

Clear Aperture85%CA，90%CA

Diameter12.7 mm，25.4 mm，50.8 mm

Surface finish (scratches/pits)10/5

Surface Flatness (@633 nm)λ/10

Surface Parallelism＜3 arcmin

Product Model	Diameter	Operating Wavelength	Backside Processing	Unit Price	Lead Time
NPM20-1064-HP	50.8 mm	1046 nm-1074 nm	Matte	$247.89	8 weeks
NPM10-1064-HP	25.4 mm	1046 nm-1074 nm	Matte	$146.04	8 weeks
NPM05-1064-HP	12.7 mm	1046 nm-1074 nm	Matte	$101.85	8 weeks
NPM20-532-HP	50.8 mm	523 nm-537 nm	Matte	$247.89	8 weeks
NPM10-532-HP	25.4 mm	523 nm-537 nm	Matte	$146.04	8 weeks
NPM05-532-HP	12.7 mm	523 nm-537 nm	Matte	$101.85	8 weeks
NPM20-355-HP	50.8 mm	349 nm-358 nm	Matte	$247.89	8 weeks
NPM10-355-HP	25.4 mm	349 nm-358 nm	Matte	$146.04	8 weeks
NPM05-355-HP	12.7 mm	349 nm-358 nm	Matte	$101.85	8 weeks
NPM20-266P-HP	50.8 mm	262 nm-268 nm	Polishing	$247.89	8 weeks
NPM20-266-HP	50.8 mm	262 nm-268 nm	Matte	$247.89	8 weeks
NPM10-266P-HP	25.4 mm	262 nm-268 nm	Polishing	$146.04	8 weeks
NPM10-266-HP	25.4 mm	262 nm-268 nm	Matte	$146.04	8 weeks
NPM05-266P-HP	12.7 mm	262 nm-268 nm	Polishing	$101.85	8 weeks
NPM05-266-HP	12.7 mm	262 nm-268 nm	Matte	$101.85	8 weeks

Nd:YAG Laser Line Mirrors
