Product Description
- Dual-objective nosepieces for quick objective switching
- Featuring two M32×0.75 internal threads for objective mounting
- Includes one D1T dovetail

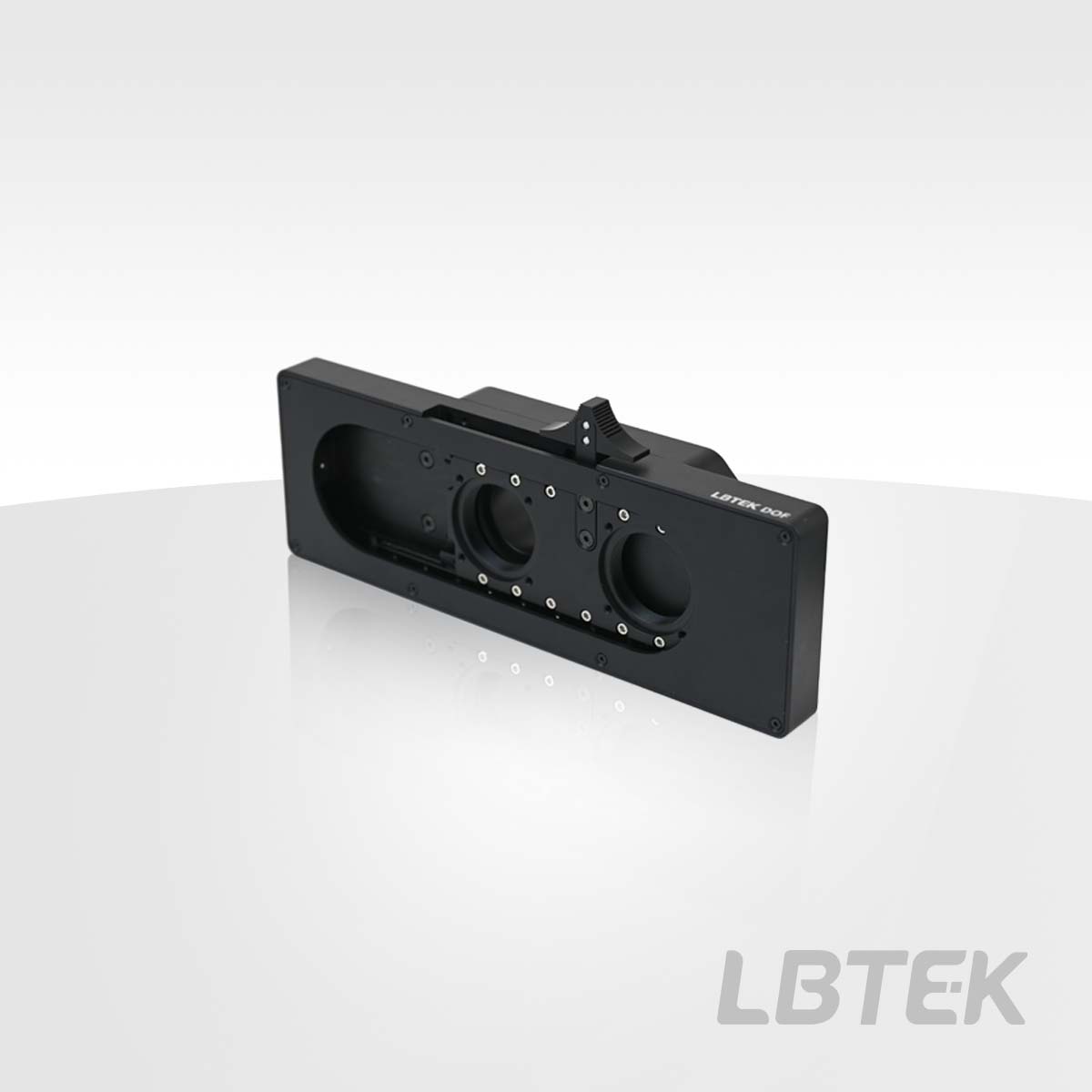

The LBTEKS Dual-Objective Nosepiece is used to mount objectives or other optical components along the experimental optical path. Its two mounting ports allow for quick switching between objectives, making it ideal for systems where a low-magnification objective is used to locate the target area and a high-magnification objective is used to image the target area. A manual slider with a detent is used to switch objectives. Note that the mount does not include objectives.
Attribute
Material6061-T6 Aluminum Alloy
Surface treatmentBlack anodized
Sliding Dual-Objective Nosepieces
- Installing two objectives in the experimental system
- Two M32×0.75 internal threads included
- Manual switching
The LBTEK Dual-Objective Nosepiece is constructed from 6061-T6 aluminum alloy for high precision and excellent rigidity. It features two M32 x 0.75 threaded holes with a center distance of 63.5 mm, accommodating objectives of varying magnifications. For objectives with other thread sizes, LBTEK thread adapters are available, or you may contact technical support for custom installations.
The Dual-Objective Nosepiece is typically equipped with two objectives of different magnifications.
Product Model | Thread specification | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| DMA | M3 | $162.9 | 6 weeks | |||
| DOF | M32×0.75 | $1236.94 | 6 weeks |
