Quartz Air-Spaced Zero-Order Quarter-Wave Plates, clear aperture: Ø10.0 mm, with 1-inch mount

Mount diameter: Ø25.4 mm
Clear aperture: Ø10.0 mm
With 1-inch mount, non-removable
Both surfaces coated with V-type anti-reflection coating Rabs<0.25%@design wavelength

LBTEK Zero-Order Quarter-Wave Plates are temperature-insensitive and provide a retardation of λ/4, commonly used to convert linearly polarized light into circularly polarized light. When the polarization direction of linearly polarized light forms a 45° angle with the fast axis of the waveplate, the emergent light becomes circularly polarized light. All LBTEK waveplates are mounted in a black anodized aluminum ring, with fine lines engraved on the front and rear surfaces of the housing to indicate the fast-axis direction. The model number, specific retardation, and design wavelength are also engraved around the body.

The LBTEK Rotation Mount CRM-1A is commonly used for mounting optical components such as waveplates.

Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Lead Time
QWP10-266B	266 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-480B	480 nm	25.4 mm	Ø10.0 mm	$346.46	7 weeks
QWP10-405B	405 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-355B	355 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-442B	442 nm	25.4 mm	Ø10.0 mm	$334.83	6 weeks
QWP10-532B	532 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-633B	633 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-780B	780 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-808B	808 nm	25.4 mm	Ø10.0 mm	$363.46	7 weeks
QWP10-850B	850 nm	25.4 mm	Ø10.0 mm	$363.46	7 weeks
QWP10-980B	980 nm	25.4 mm	Ø10.0 mm	$363.46	7 weeks
QWP10-1030B	1030 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-1064B	1064 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks
QWP10-1550B	1550 nm	25.4 mm	Ø10.0 mm	$363.46	6 weeks

Quartz Air-Spaced Zero-Order Quarter-Wave Plates, clear aperture: Ø20.0 mm, with 1-inch mount

Mount diameter: Ø25.4 mm
Clear aperture: Ø20.0 mm
With 1-inch mount, non-removable
Both surfaces coated with V-type anti-reflection coating Rabs<0.25%@design wavelength

LBTEK Zero-Order Quarter-Wave Plates are temperature-insensitive and provide a retardation of λ/4, commonly used to convert linearly polarized light into circularly polarized light. When the polarization direction of linearly polarized light forms a 45° angle with the fast axis of the waveplate, the emergent light becomes circularly polarized light. All LBTEK waveplates are mounted in a black anodized aluminum ring, with fine lines engraved on the front and rear surfaces of the housing to indicate the fast-axis direction. The model number, specific retardation, and design wavelength are also engraved around the body.

The LBTEK Rotation Mount CRM-1A is commonly used for mounting optical components such as waveplates.

Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Lead Time
QWP20-420B-SP	420 nm	25.4 mm	Ø20.0 mm	$344.24	8 weeks
QWP20-1310B	1310 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-905B	905 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
QWP20-800B	800 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
QWP20-670B	670 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-520B	520 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
QWP20-488B	488 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-445B	445 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-355B	355 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-308B	308 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-266B	266 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-405B	405 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-442B	442 nm	25.4 mm	Ø20.0 mm	$407.52	6 weeks
QWP20-532B	532 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-633B	633 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-780B	780 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-808B	808 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-850B	850 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-980B	980 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-1030B	1030 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-1064B	1064 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks
QWP20-1550B	1550 nm	25.4 mm	Ø20.0 mm	$442.43	6 weeks

Quartz Air-Spaced Zero-Order Quarter-Wave Plates, clear aperture: Ø10.0 mm, with SM05 threaded mount

Optical element diameter: Ø12.7 mm
Clear aperture: Ø10.0 mm
With SM05 threaded mount, detachable
Both surfaces coated with V-type anti-reflection coating Rabs<0.25%@design wavelength

The LBTEK Zero-Order Quarter-Wave Plate is temperature-insensitive and provides a retardation of λ/4, commonly used to convert linearly polarized light into circularly polarized light. The waveplate with an SM05 threaded mount is housed in a black anodized SM05-8A lens tube, with a fine line engraved on the end face indicating the fast-axis direction of the waveplate. The model number, specific retardation, and design wavelength are engraved around the body. This waveplate can be connected to other components via SM05 internal and external threads. The waveplate in the SM05 threaded mount is secured with an SM05R retaining ring and an O-ring. The unmounted waveplate can be removed using the OWR-05A wrench for standalone use, with the fast-axis direction marked by a pencil line on the side of the unmounted waveplate.

The LBTEK Rotation Mount AMMR-05A can be used to mount waveplates with SM05 threaded mounts.

Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Lead Time
QWPSM05-1550B	1550 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-1064B	1064 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-1030B	1030 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-980B	980 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-808B	808 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-780B	780 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-633B	633 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-532B	532 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-480B	480 nm	12.7 mm	Ø10.0 mm	$358.23	8 weeks
QWPSM05-442B	442 nm	12.7 mm	Ø10.0 mm	$358.23	8 weeks
QWPSM05-405B	405 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-355B	355 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks
QWPSM05-266B	266 nm	12.7 mm	Ø10.0 mm	$363.46	8 weeks

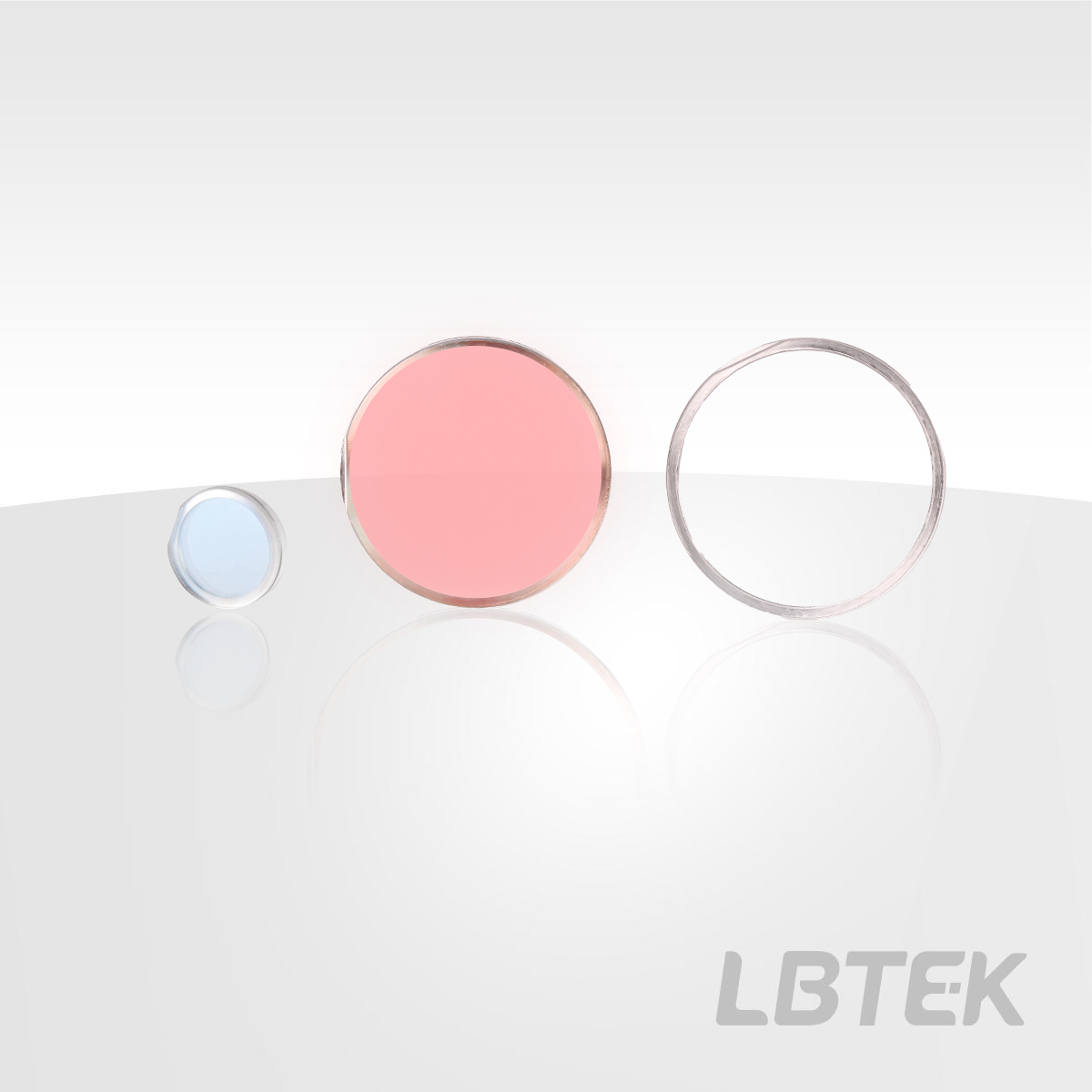

Quartz Air-Spaced Zero-Order Quarter-Wave Plates, clear aperture: Ø10.0 mm, without mount

Waveplate size: 12.7 mm
Clear aperture: Ø10.0 mm
Both surfaces coated with V-type anti-reflection coating, Rabs<0.25%@design wavelength

The LBTEK Zero-Order Quarter-Wave Plate is temperature-insensitive and provides a retardation of λ/4, commonly used for converting linearly polarized light to circularly polarized light. The waveplate surface is engraved with a fine line indicating the fast-axis direction. This waveplate can be mounted in an SM05 rotation lens tube to connect with other components. It can also be directly installed on a rotating SM05 mount, with the fast-axis direction marked by a pencil line on the side of the waveplate.

The LBTEK Rotation Mount CMRM-05 is commonly used for mounting optical components such as waveplates.

Product Model	Diameter	Design wavelength	Clear Aperture	Unit Price	Lead Time
QWP50-1064B-SP New	50.0 mm	1064 nm	Ø45.0 mm	$653.71	3 weeks
QWP50-532B-SP New	50.0 mm	532 nm	Ø45.0 mm	$653.71	3 weeks
QWP10-852B-SP	12.7 mm	852 nm	Ø10.0 mm	$356.27	6 weeks

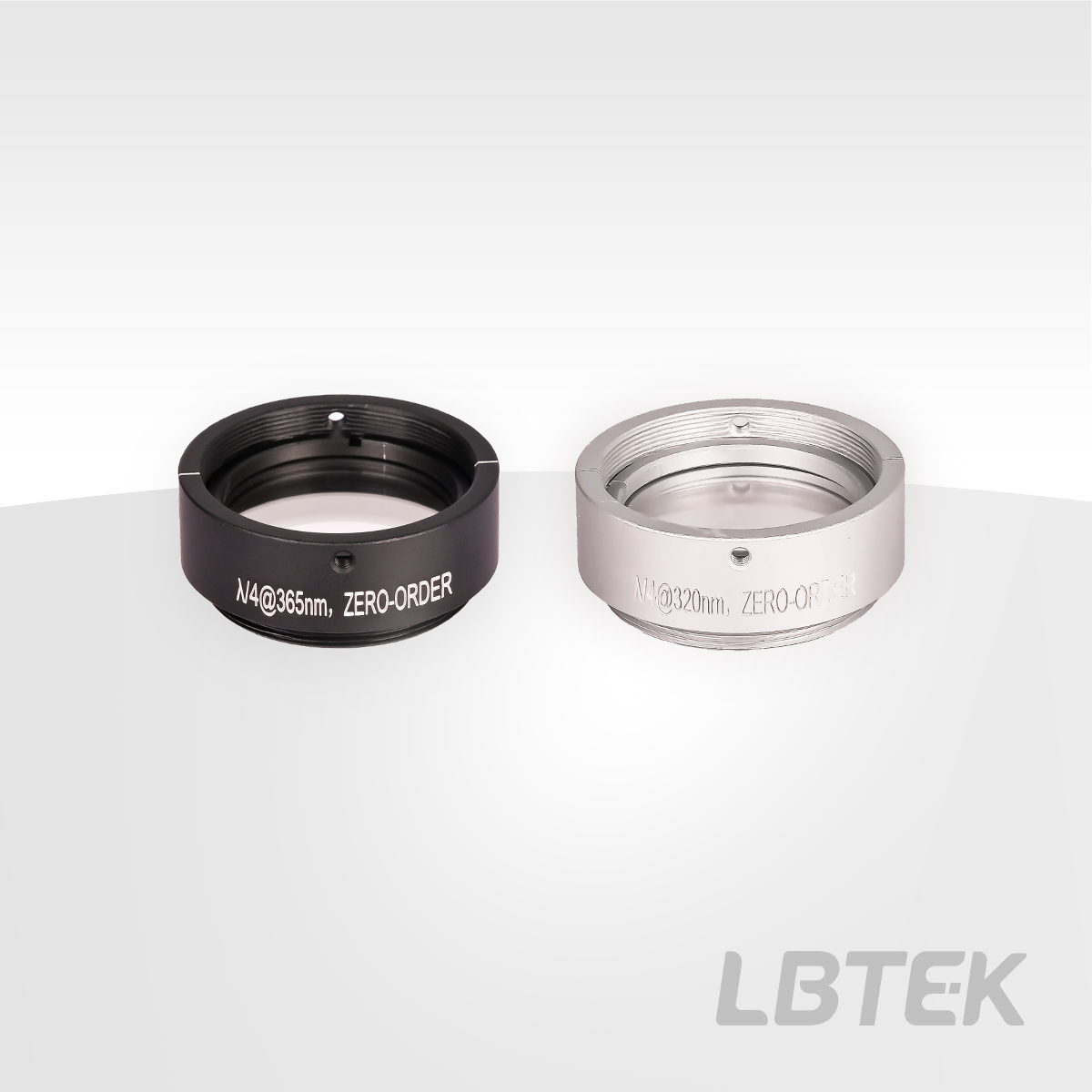

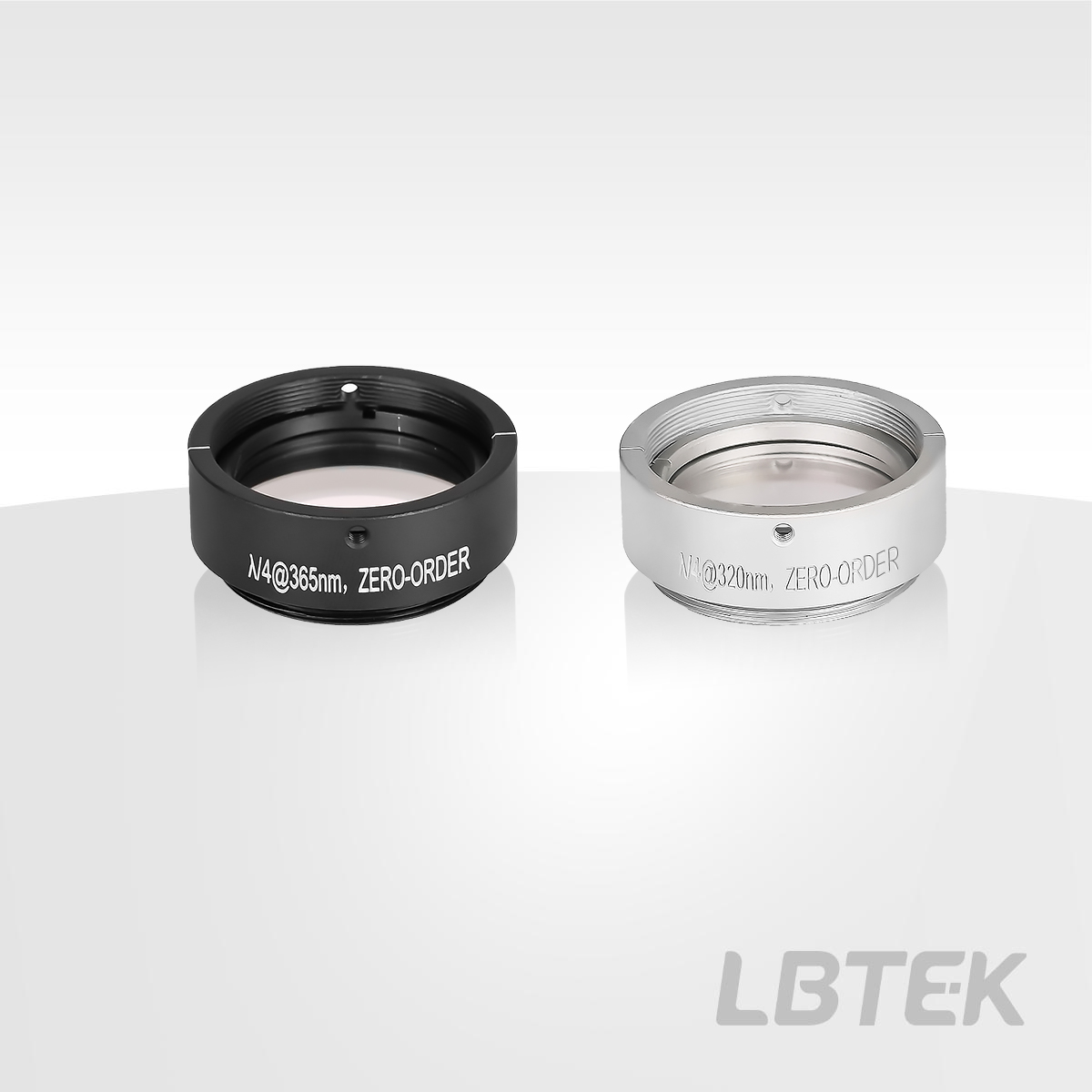

Quartz Air-Spaced Zero-Order Quarter Wave Plate, Clear Aperture: Ø20.0 mm, with SM1 Threaded Mount

Optical Element Diameter: Ø25.4 mm
Clear Aperture: Ø20.0 mm
With SM1 Threaded Mount

LBTEK zero-order quarter-wave plates are temperature-insensitive and feature a retardation of λ/4, commonly used to convert linearly polarized light into circularly polarized light. The waveplate with an SM1 threaded mount is installed in an anodized SM1-8A lens sleeve. A fine line is engraved on the end face of the housing to indicate the fast axis direction of the waveplate, and the model number, retardation, and design wavelength are engraved around the body. This waveplate can be connected to other components via SM1 internal and external threads. Note: If quartz air-spaced zero-order waveplates need to operate under high-power ultraviolet conditions for extended periods, waveplates with custom stainless steel housings are recommended.

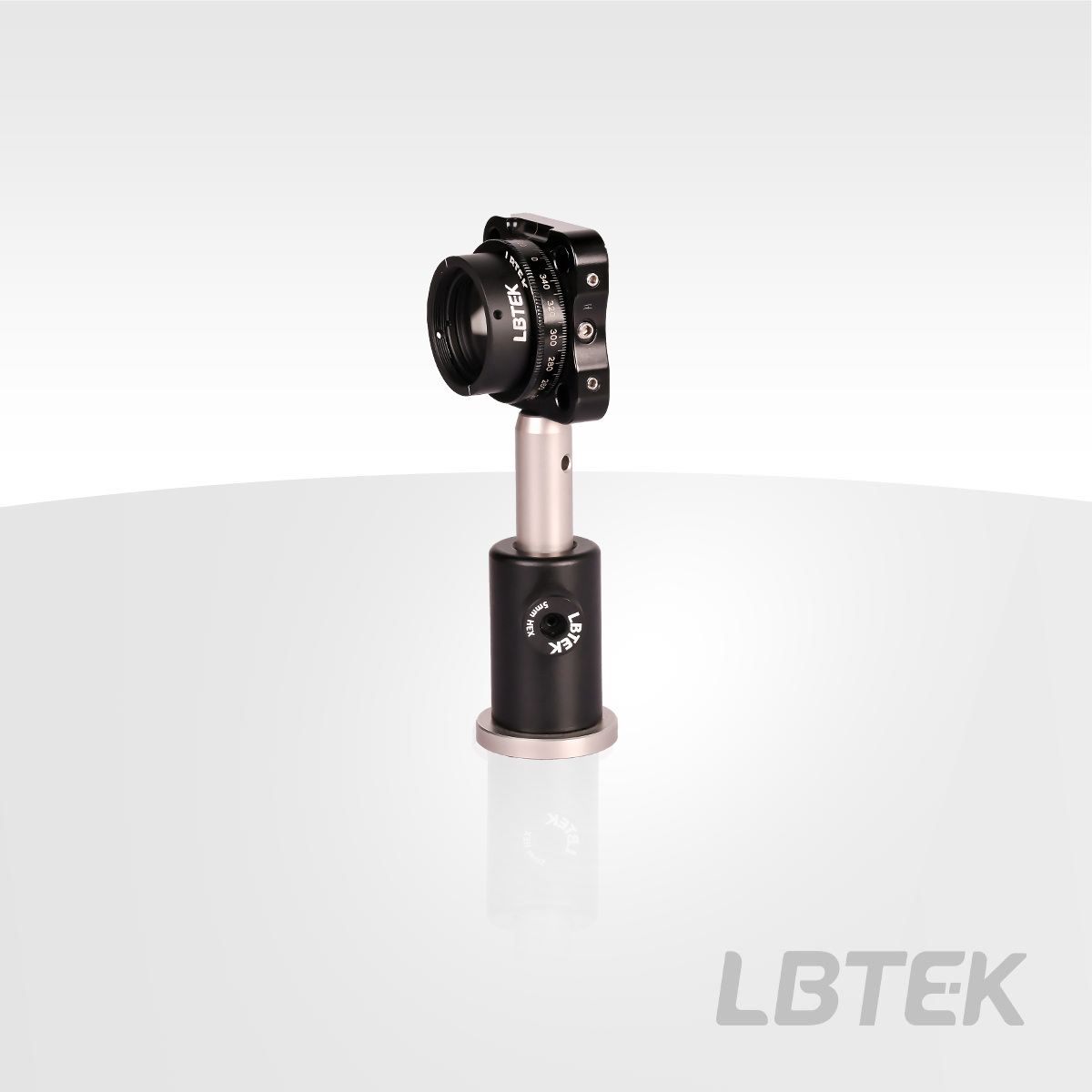

LBTEK Rotation Mount AMMR-1A can be used to install wave plates with SM1 threaded mounts.

	Product Model	Design wavelength	Diameter	Clear Aperture	Unit Price	Compare	Lead Time
	QWP10-365B-SP New	365±5 nm	25.4 mm	Ø20.0 mm	$326.85		3 weeks
	QWP10-320B-SP New	320±5 nm	25.4 mm	Ø20.0 mm	$326.85		3 weeks

Quartz Zero-Order Quarter-Wave Plates
