Added two degrees of freedom to the three-axis bending stage system

±4° total tilt per axis

Precision micrometer head actuators

360° continuous rotation

Unidirectional repeatability of ±0.003°

Integrated motor controller, no external controller required

Equipped with a 23-bit encoder, resolution up to 0.00004°;

High rotation speed, up to 300rpm;

Integrated direct-drive rotating motor with closed-loop feedback;

Compatible with LMDT series and ESM-RP100 series products provided by LBTEK

Encoder feedback for closed-loop speed and position control

Front touch screen and remote PC operation available

Main Material: 6061-T6 Aluminum Alloy

Differential Head Controls Pitch, Yaw, and Rotation

Table Surface with M4 Threaded Holes

Pure rotary motion around a virtual point;

It can be assembled into multi-axis angular translation stages;

It can be fully locked;

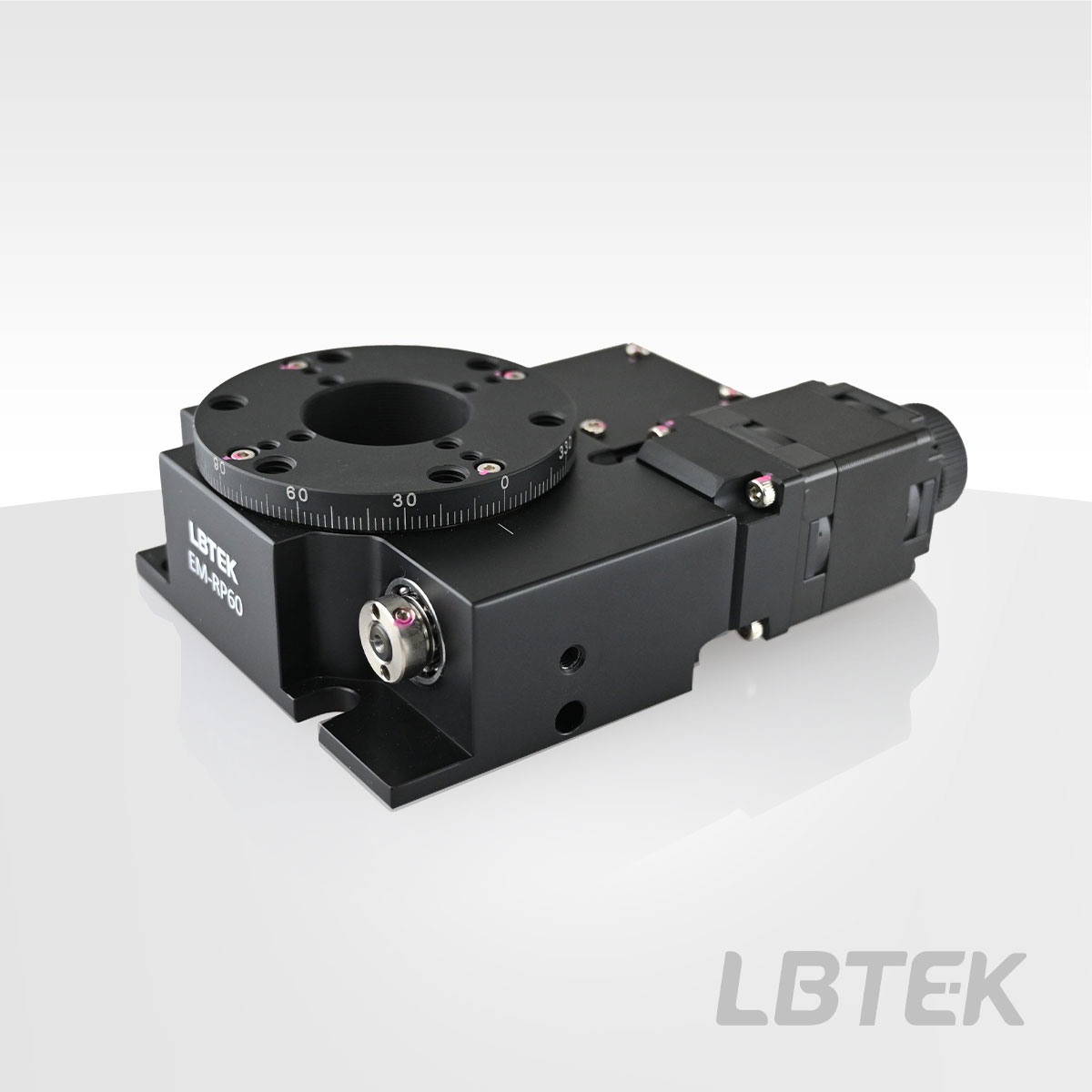

Motorized angular translation stages;

High repeat positioning accuracy；

Ball screw drive;

Stepper motor controller, two-phase and five-phase, 1 to 3 axes optional

External triggering available

Easy integration, supports secondary development in multiple languages

Combined deep groove ball bearing slide guide mechanism with certain load capacity and high positioning accuracy;

Worm gear transmission mechanism with high precision and high transmission efficiency;

Five-phase stepping motor drive with high resolution;

360° continuous rotation;

Platform tapped holes are compatible with standard optomechanics；

The side has an M4 or M6 tapped hole for direct mounting of Ø12.7 mm optical posts;
