Absorption-type Neutral Density Attenuator
Anti-reflection Coating: 700 nm-1100 nm
OD: 0.1-6.0
Low Power Applications

LBTEK absorptive neutral density filters utilize a high-performance neutral density glass substrate, with an anti-reflection coating applied to one side of the substrate (specifications: Ravg < 0.5% @ 700-1100 nm). These absorptive neutral density filters not only exhibit stable absorption characteristics within the 700-1100 nm wavelength band but also effectively reduce internal light reflection within the product, making them suitable for various low-power laser energy attenuation applications. The product is currently available in 17 optical density specifications (OD 0.1-6.0) and 3 size options (Ø12.7 mm, Ø25.4 mm, Ø50 mm), which can fully meet diverse experimental requirements. Among them, the circular absorptive neutral density filters are also offered in a mounted version (MNDFA series), where the products are pre-installed in standard lens barrels of corresponding sizes (supporting disassembly). Furthermore, LBTEK can provide custom services for filters with specific sizes and optical density values. For customization inquiries, please feel free to contact technical support.

Diagram

Attribute

Clear Aperture＞90% CA

Surface finish (scratches/pits)40/20

Parallelism＜10 arcsec

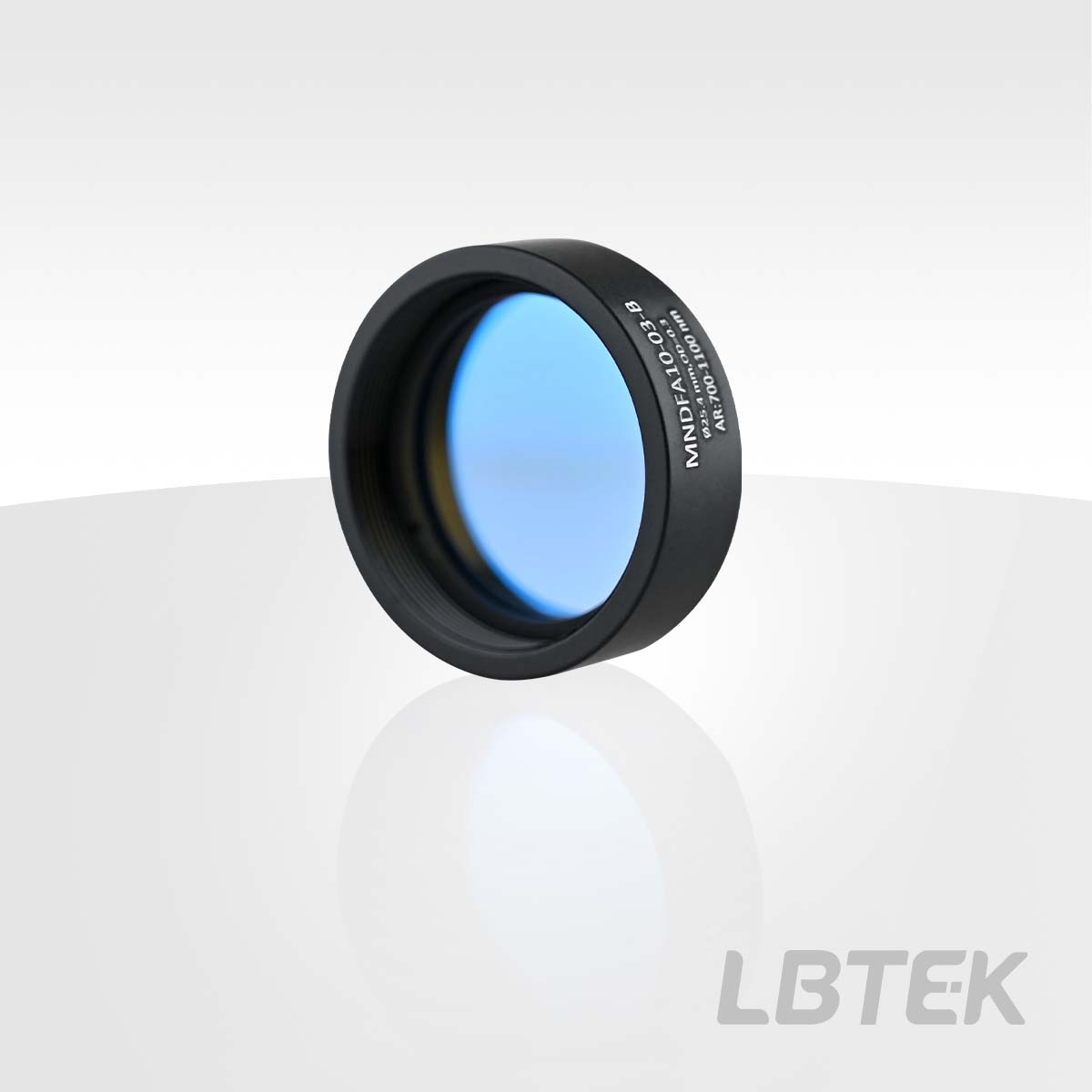

Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Installed

Low Power Applications
Anti-Reflection Coating: 700 nm-1100 nm
Pre-installed mechanical housing, removable

LBTEK absorptive neutral density attenuators utilize neutral density glass coated with anti-reflection coatings (Ravg<0.5%@700-1100 nm), which not only provide stable absorption characteristics but also effectively reduce internal reflections of light within the product in the 700-1100 nm range. By precisely controlling the thickness and material type of the neutral density glass, high-precision OD attenuation can be achieved (OD tolerance ≤5%@850 nm). The MNDFA series are pre-installed in standard lens tubes (removable) and offer various optical densities and size specifications. The tube surface is engraved with product model, operating wavelength, OD value, and other parameters for easy user identification. The corresponding tube models for 0.5-inch, 1-inch, and 2-inch neutral density attenuators are: SM05-8A, SM1-8A, and SM2-8A. Note: The thickness of absorptive neutral density filters is for reference only; the actual thickness depends on the optical density of the glass batch used.

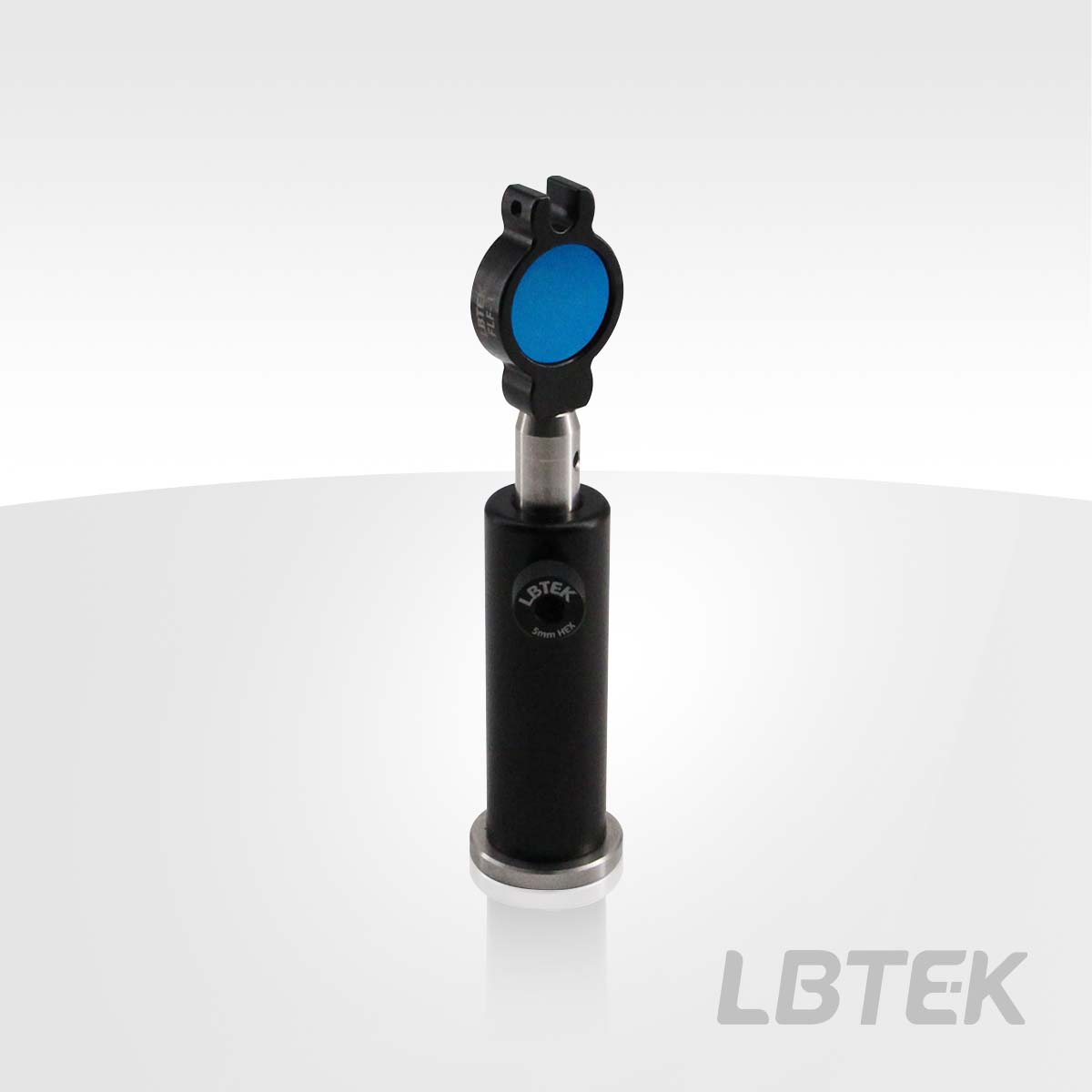

LBTEK Absorption Neutral Density Attenuator with Mounting Installed on Coaxial Mounting Plate

Product Model	Diameter	OD	Operating Wavelength	Unit Price	Lead Time
MNDFA10-60-B	Ø25.4 mm	6.0±0.30@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-50-B	Ø25.4 mm	5.0±0.25@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-40-B	Ø25.4 mm	4.0±0.20@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-30-B	Ø25.4 mm	3.0±0.15@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-20-B	Ø25.4 mm	2.0±0.10@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-15-B	Ø25.4 mm	1.5±0.075@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-13-B	Ø25.4 mm	1.3±0.065@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-10-B	Ø25.4 mm	1.0±0.06@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-09-B	Ø25.4 mm	0.9±0.045@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-08-B	Ø25.4 mm	0.8±0.04@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-07-B	Ø25.4 mm	0.7±0.035@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-06-B	Ø25.4 mm	0.6±0.03@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-05-B	Ø25.4 mm	0.5±0.03@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-04-B	Ø25.4 mm	0.4±0.02@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-03-B	Ø25.4 mm	0.3±0.015@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-02-B	Ø25.4 mm	0.2±0.01@850 nm	700 nm-1100 nm	$68.77	today
MNDFA10-01-B	Ø25.4 mm	0.1±0.005@850 nm	700 nm-1100 nm	$68.77	today
MNDFA05-03-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-700 nm	$42.49	4 weeks
MNDFA05-05-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-700 nm	$42.49	4 weeks
MNDFA20-03-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-650 nm	$137.15	4 weeks
MNDFA05-10-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-700 nm	$42.49	today
MNDFA20-05-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-650 nm	$137.15	4 weeks
MNDFA05-20-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-700 nm	$42.49	4 weeks
MNDFA20-10-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-650 nm	$137.15	today
MNDFA05-30-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-700 nm	$42.49	today
MNDFA20-20-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-650 nm	$137.15	4 weeks
MNDFA05-40-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-700 nm	$42.49	4 weeks
MNDFA20-30-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-650 nm	$137.15	today
MNDFA20-40-B New	Ø25.4 mm	0.3±0.015@550 nm	400 nm-650 nm	$137.15	4 weeks

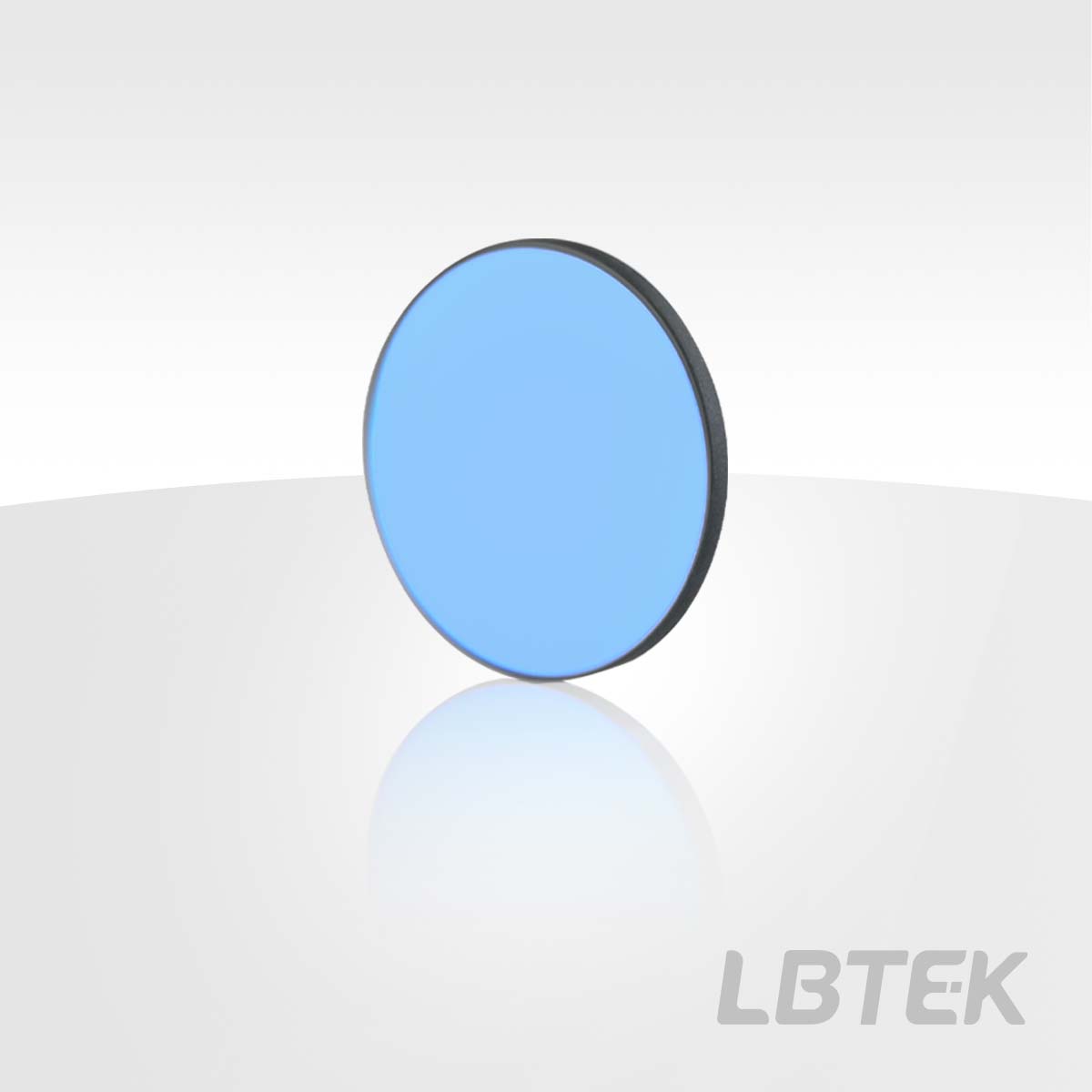

Neutral Density Filter, Anti-Reflection Coating 700 nm-1100 nm, Unmounted

Low Power Applications
Absorptive Neutral Density Filters
Anti-Reflection Coating 700 nm-1100 nm

LBTEK's absorptive neutral density attenuators utilize neutral density glass coated with an anti-reflection coating (Ravg<0.5%@700-1100 nm). While offering a flat absorption profile, they effectively minimize internal reflections within the product across the 700-1100 nm range. By precisely controlling the thickness and material type of the neutral density glass, highly accurate OD attenuation can be achieved (OD tolerance ≤5%@850 nm). Currently, the absorptive neutral density attenuators (with AR coating 700 nm-1100 nm, unmounted) are available in various optical densities and sizes. They can be installed into corresponding standard lens tubes, fixed lens mounts, and various coaxial mounting plates, allowing customers to flexibly choose the optimal mounting method based on their specific application scenarios. Note: The thickness of the absorptive neutral density filter is for reference only; the actual thickness depends on the optical density of the glass batch used.

LBTEK absorptive neutral density filters installed in fixed lens mounts

Product Model	Diameter	OD	Operating Wavelength	Unit Price	Lead Time
NDFA10-60-B	Ø25.4 mm	6.0±0.30@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-50-B	Ø25.4 mm	5.0±0.25@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-15-B	Ø25.4 mm	1.5±0.075@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-13-B	Ø25.4 mm	1.3±0.065@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-10-B	Ø25.4 mm	1.0±0.06@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-09-B	Ø25.4 mm	0.9±0.045@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-08-B	Ø25.4 mm	0.8±0.04@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-07-B	Ø25.4 mm	0.7±0.035@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-06-B	Ø25.4 mm	0.6±0.03@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-05-B	Ø25.4 mm	0.5±0.03@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-04-B	Ø25.4 mm	0.4±0.02@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-03-B	Ø25.4 mm	0.3±0.015@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-02-B	Ø25.4 mm	0.2±0.01@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-01-B	Ø25.4 mm	0.1±0.005@850 nm	700 nm-1100 nm	$59.36	today
NDFA10-40-B	Ø25.4 mm	4.0±0.20@850 nm	700 nm-1100 nm	$57.92	today
NDFA10-30-B	Ø25.4 mm	3.0±0.15@850 nm	700 nm-1100 nm	$57.92	today
NDFA10-20-B	Ø25.4 mm	2.0±0.10@850 nm	700 nm-1100 nm	$57.92	today
NDFA05-03-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$33.47	today
NDFA20-03-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$122.77	today
NDFA05-05-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$33.47	today
NDFA20-05-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$122.77	today
NDFA05-10-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$33.47	today
NDFA20-10-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$122.77	today
NDFA05-20-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$33.47	today
NDFA20-20-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$122.77	today
NDFA05-30-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$33.47	today
NDFA20-30-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$122.77	today
NDFA05-40-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$33.47	today
NDFA20-40-B New	Ø25.4 mm	0.1±0.005@550 nm	400 nm-650 nm	$122.77	today

Absorptive Neutral Density (ND) Filters, AR Coating: 700-1100nm
