Product Description

AR Coating: 1100 nm-1700 nm
Attenuating low power lasers
OD: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1, 1.3, 1.5, 2, 3, 4

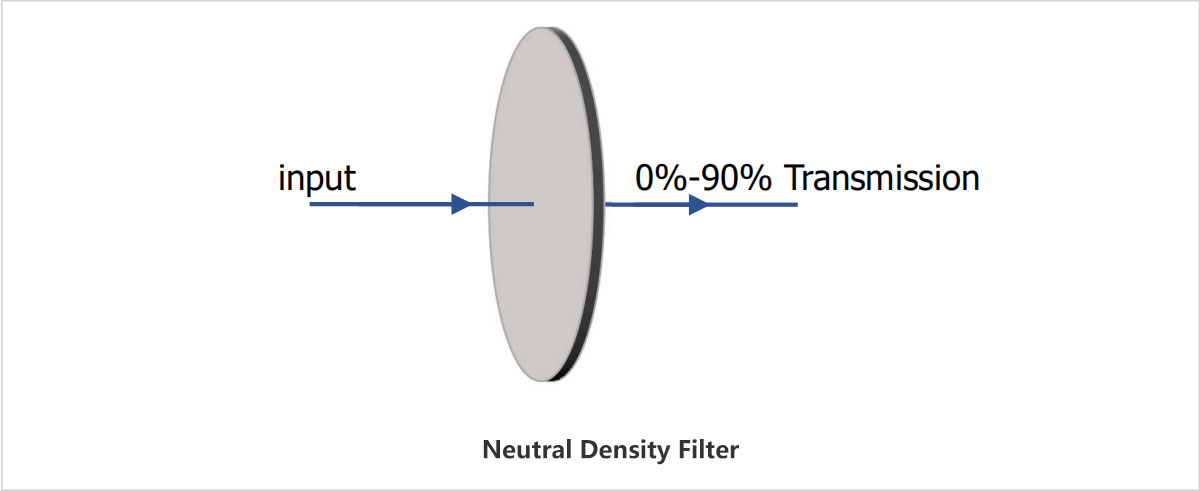

LBTEK's 1100 nm-1700 nm AR-Coated Absorptive Neutral Density (ND) Filters offer an optical density (OD) range of 0.1-4.0. The AR-Coating effectively reduces reflected light energy. The LBTKE filter is round and Ø25.4 mm in diameter. The thickness depends on the material and optical density (OD). The Ø25.4 mm filter can be mounted on a threaded tube or a 30 mm coaxial mounting plate (OPM-12.5BS) for use in LBTEK coaxial systems. We also offer optomechanical components for other mounting methods. LBTEK also offers custom filters with special sizes and optical density values. Please contact technical support for inquiries.

Attribute

Surface Flatness (@633 nm)λ/4

Clear Aperture＞90% CA

Surface finish (scratches/pits)60/40

Parallelism＜10 arcsec

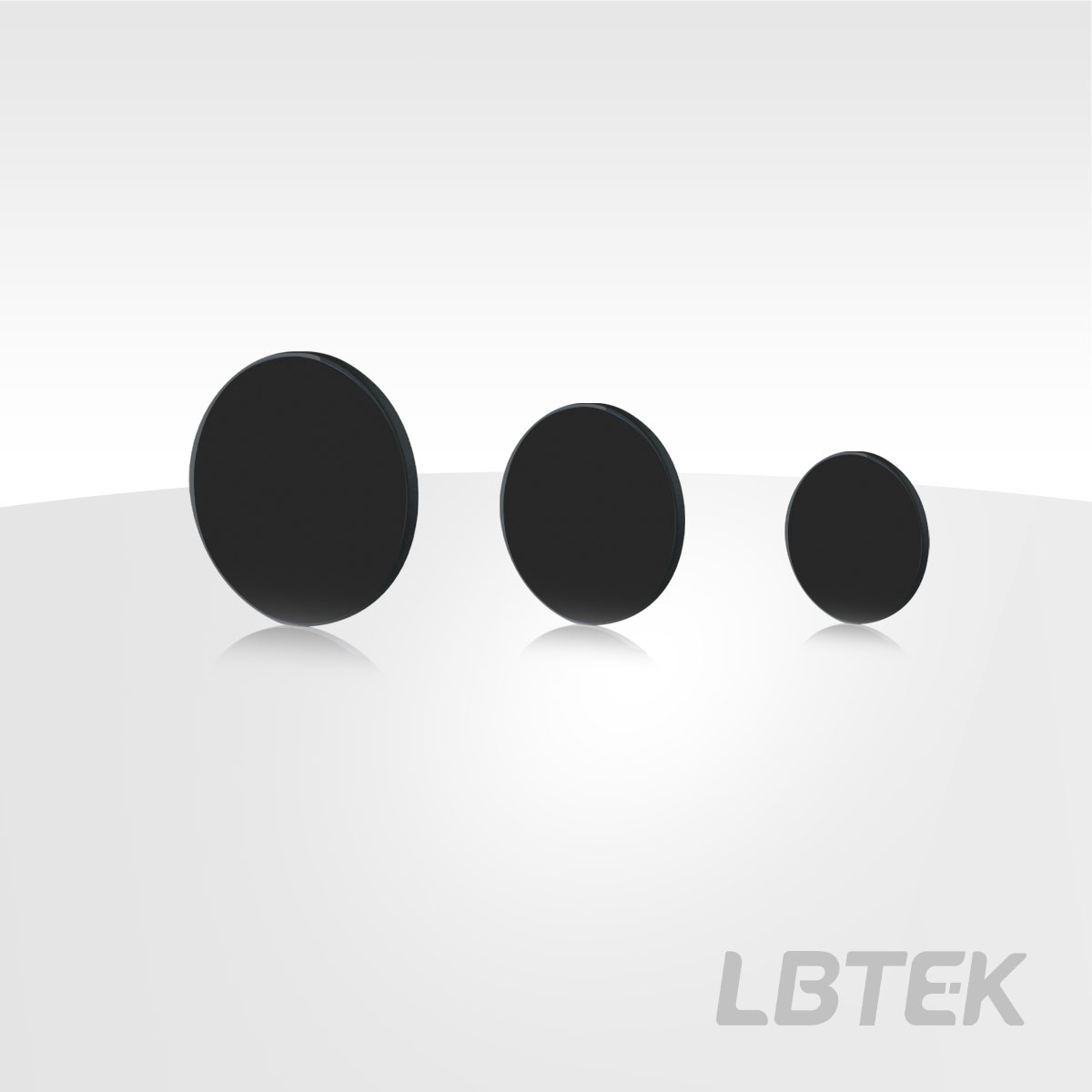

Absorptive Neutral Density (ND) Filters, AR Coating: 1100-1700nm, Unmounted

Low power applications
Absorptive neutral density filters
Anti-reflection coating: 1100 nm-1700 nm

LBTEK absorptive neutral density filters are coated with an AR coating on one side for the 1100 nm-1650 nm wavelength range. Using the coated surface as the incident side can effectively reduce reflected light energy. LBTEK currently offers filters with optical densities ranging from OD0.1 to OD4.0. All three filters have a diameter of 25.4 mm and can be mounted in LBTEK standard lens sleeves, fixed lens mounts, and various coaxial mounting plates. Customers can choose the optimal mounting method according to application scenarios. Note: The thickness of the absorptive neutral density filter is for reference only. The actual thickness depends on the optical density of the batch of glass used.

LBTEK Absorptive Neutral Density Filter Mounted on FLF1

Product Model	OD	Diameter	Operating Wavelength	Unit Price	Lead Time
NDFA10-15-C	1.5±0.075@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-13-C	1.3±0.065@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-10-C	1.0±0.06@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-09-C	0.9±0.045@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-08-C	0.8±0.04@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-07-C	0.7±0.035@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-06-C	0.6±0.03@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-05-C	0.5±0.03@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-04-C	0.4±0.02@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-03-C	0.3±0.015@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-02-C	0.2±0.01@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-01-C	0.1±0.005@1300 nm	Ø25.4 mm	700 nm-1700 nm	$59.36	7 weeks
NDFA10-40-C	4.0±0.20@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$59.23	6 weeks
NDFA10-30-C	3.0±0.15@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$59.23	6 weeks
NDFA10-20-C	2.0±0.10@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$59.23	6 weeks

Absorptive Neutral Density (ND) Filters, AR Coating: 1100-1700nm, Mounted

Low power applications
Anti-reflection coating: 1100 nm-1700 nm

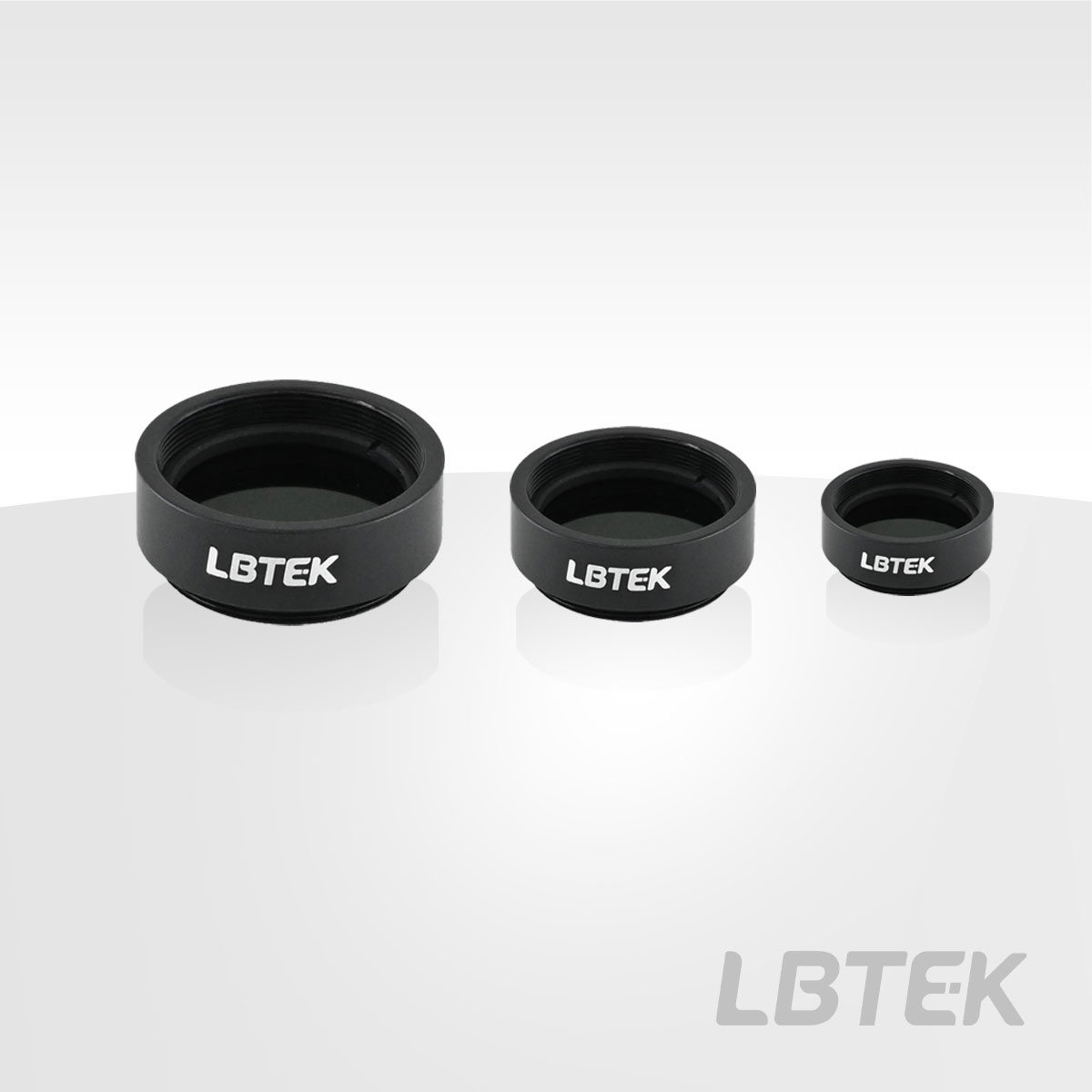

Mounted in mechanical housing, detachable

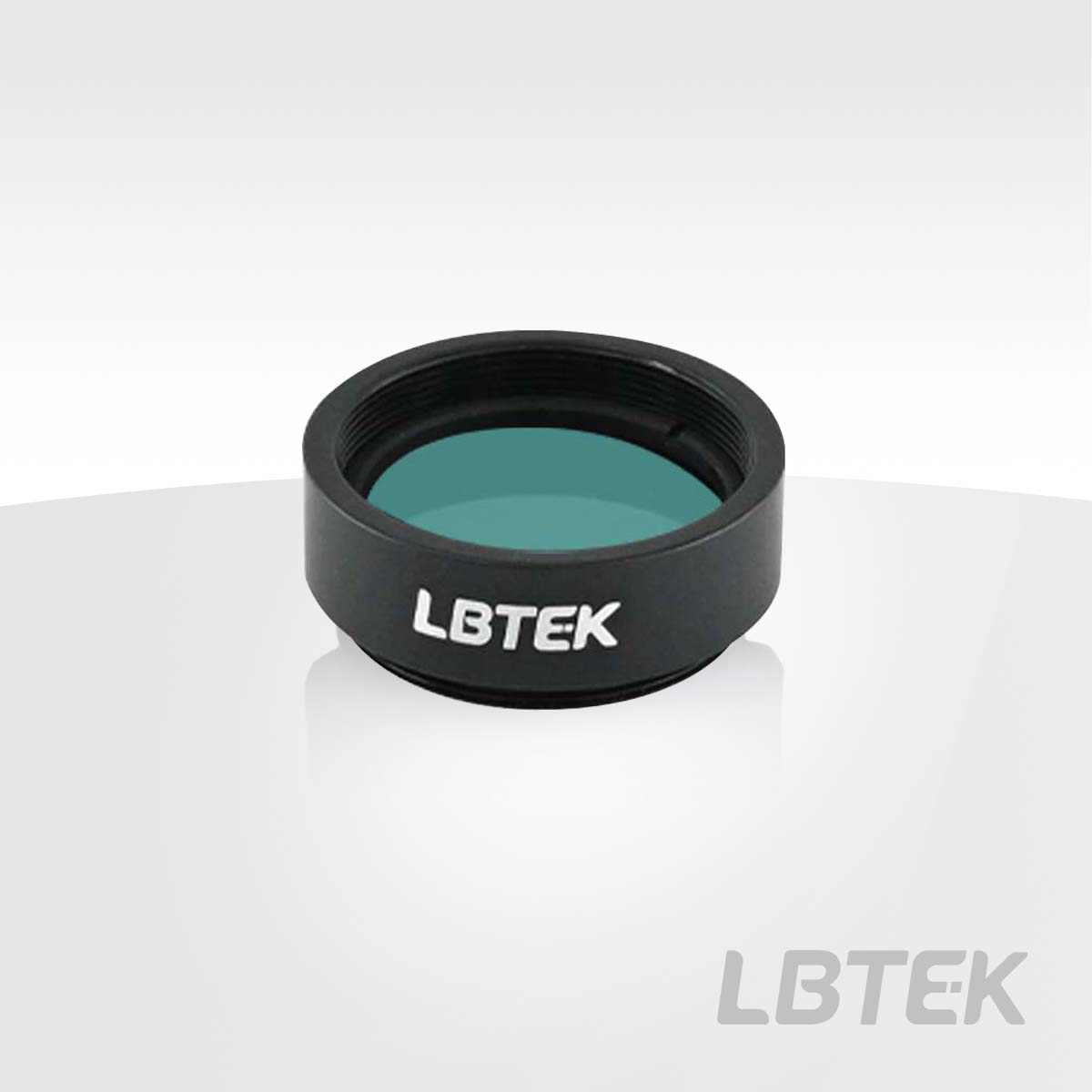

LBTEK absorptive neutral density filters have an optical density (OD) range of 0.1-4.0, with a size of 1 inch, and are coated with an anti-reflection coating for 1100 nm-1700 nm. The MNDFA series absorptive neutral density filters come mounted in detachable standard lens tubes, with the product model, working wavelength, and OD value engraved on the surface for easy identification. Note: The thickness of the absorptive neutral density filter is for reference only. The actual thickness depends on the optical density of the batch of glass used.

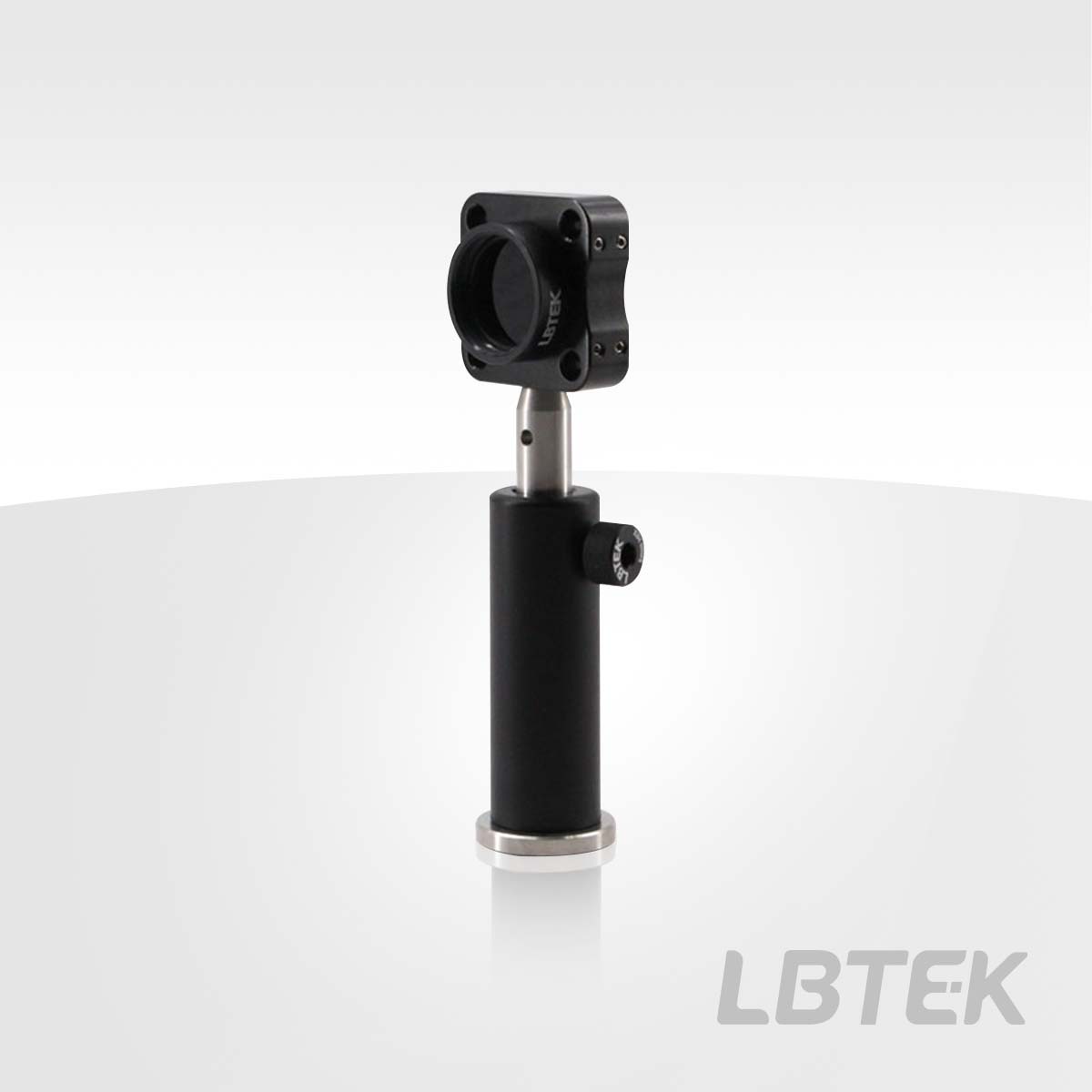

The filter can be installed into other mechanical components with SM1 threads

Product Model	OD	Diameter	Operating Wavelength	Unit Price	Lead Time
MNDFA10-40-C	4.0±0.20@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-30-C	3.0±0.15@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-20-C	2.0±0.10@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-15-C	1.5±0.075@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-13-C	1.3±0.065@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-10-C	1.0±0.06@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-09-C	0.9±0.045@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-08-C	0.8±0.04@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-07-C	0.7±0.035@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-06-C	0.6±0.03@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-05-C	0.5±0.03@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-04-C	0.4±0.02@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-03-C	0.3±0.015@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-02-C	0.2±0.01@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
MNDFA10-01-C	0.1±0.005@1300 nm	Ø25.4 mm	1100 nm-1700 nm	$68.77	7 weeks
