- The mounting holes are orthogonally distributed at 90°, compatible with both left-handed and right-handed operation habits, offering flexible layout.
- Supports bidirectional adjustment in pitch and yaw, with an adjustment range of up to ±4°
- Equipped with two precision adjustment knobs, enabling high-precision fine-tuning operations
- Features a thickened backplate design and enhanced spring structure, significantly improving overall rigidity and stability
- Material: 6061-T6 Aluminum Alloy
- Two Precision Regulators
- Fixed with M4 Rubber-Tipped Set Screws
- Thick Back Plate and Heavy-Duty Spring for Better Stability

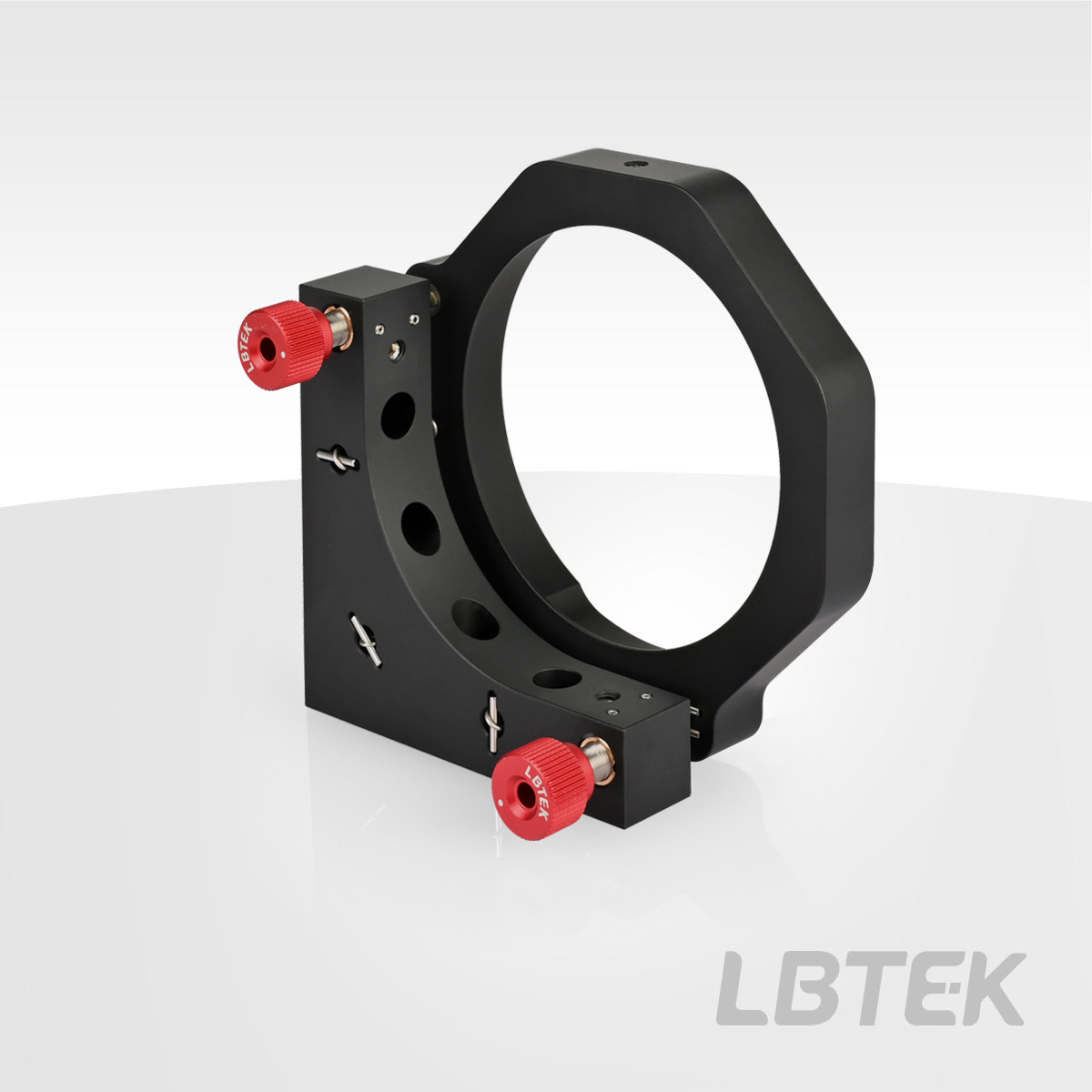

LBTEK AMM series precision optical mounts feature a smooth, threadless optical wall and secure optical components with set screws. The AMM-3B precision optical mount is specifically designed for Ø3-inch optical elements, supporting ±4° of pitch and yaw adjustment. To enhance overall performance, the mount incorporates high-rigidity springs and wear-resistant inserts while maintaining structural strength, effectively balancing the load and improving durability.

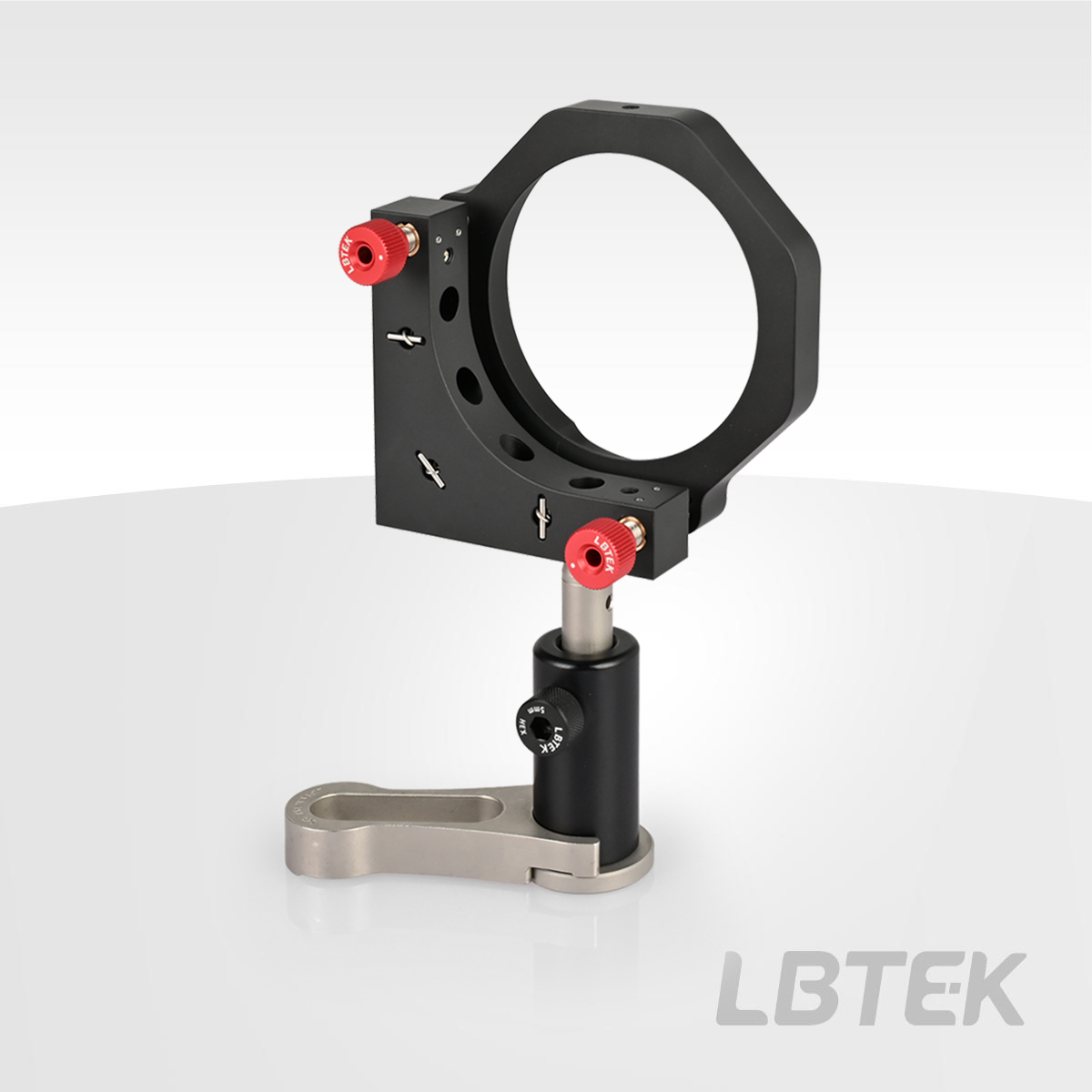

This mount is equipped with two M6×0.25 precision adjusters, enabling precise angular control of ±4°. The stainless steel lead screw paired with a brass bushing ensures smooth and accurate adjustment. The base features four M4 countersunk holes, supporting left- or right-handed installation of connecting rods to accommodate various assembly scenarios.
AMM series products are commonly used for mounting optical components such as mirrors.
Product Model | Applicable optical component size | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|
| AMM-3B New | Ø76.2mm | $204.74 | today |
