Product Description
- Added two degrees of freedom to the three-axis bending stage system
- ±4° total tilt per axis
- Precision micrometer head actuators
- Pitch and yaw tilt platforms

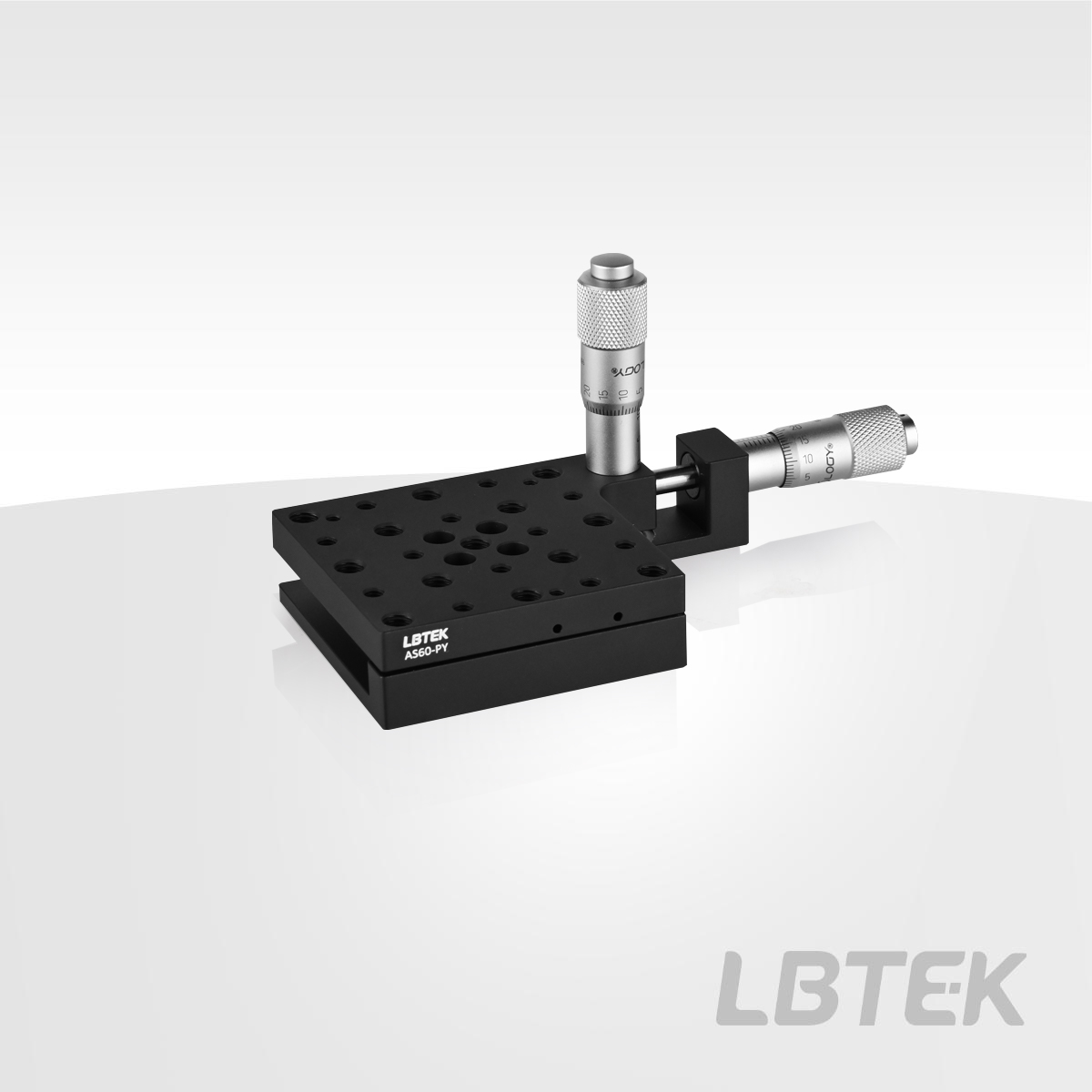

The AS60-PY tilt platform provides ±4° of micron-level adjustment in pitch and yaw. It is designed to offer a compact pitch and yaw adjustable mounting platform, equipped with M3 and M4 threaded mounting holes.
Attribute
Main material6061-T6 aluminum alloy
Surface treatmentBlack anodized
Affiliate Platform
- Add two degrees of freedom to the LS60-XYZ series translation stage system
- ±4° angular adjustment per axis
- Precision micrometer head drive
- Pitch & Yaw adjustment platform
The AS60-PY tilt stage provides ±4° of pitch and yaw adjustment via micrometer head adjusters. It is an adjustable pitch and yaw mounting platform featuring M4 threaded mounting holes and four M3 through-holes. When used in conjunction with a 3-axis stage, this pitch and yaw platform can replace the top mounting plate of the 3-axis stage, allowing the beam height on the upper surface to meet application requirements.

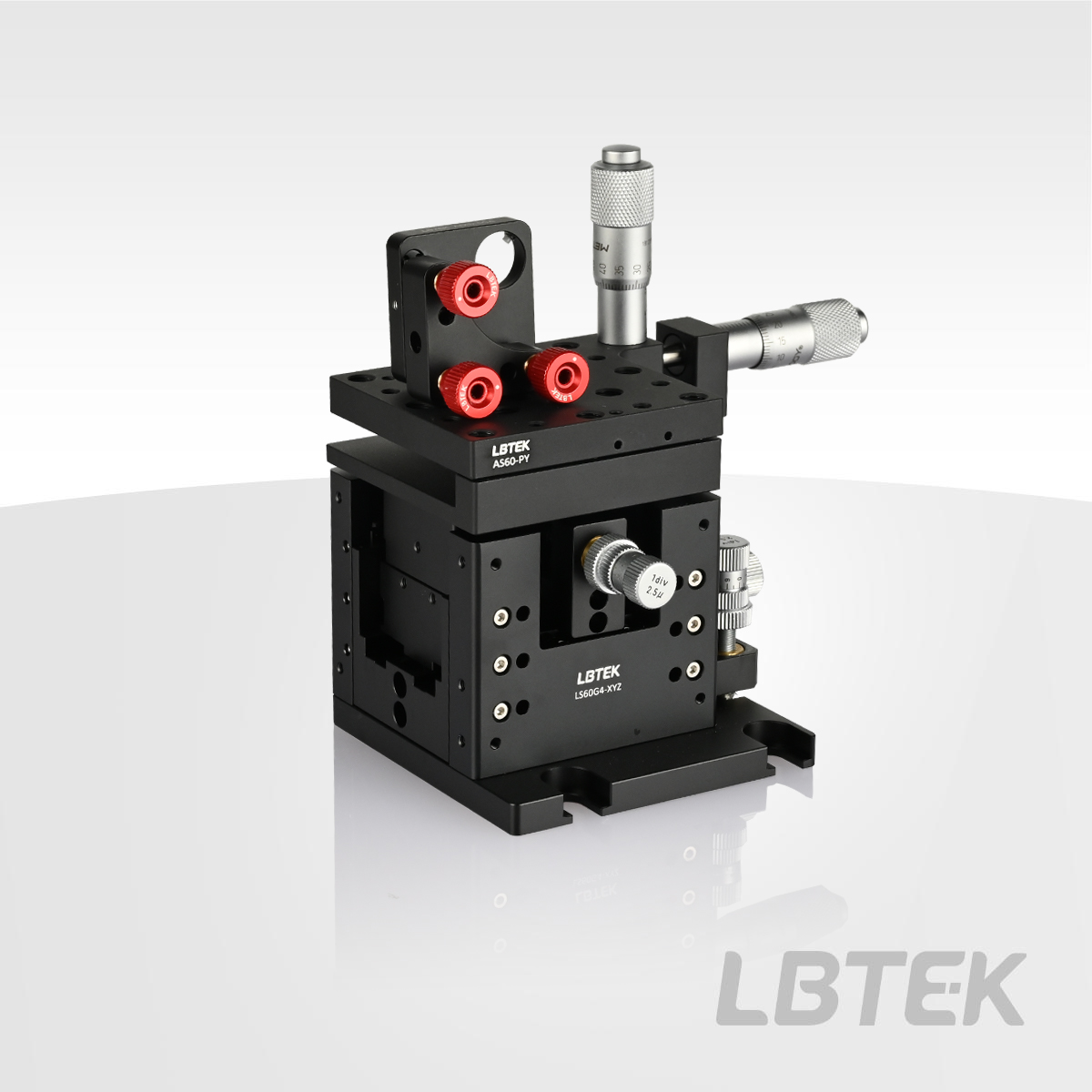

Mount the AMD-05A lens holder onto the LS60G-XYZ stage using the AS60-PY.
Product Model | Load-bearing | Pitch/Yaw Angle | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AS60-PY New | 3 Kg | ±4° | $239.65 | today |
