Product Description

Suitable for building compact optical systems
Thread specification SM05
Available in four versions: double-ended internal and external threads (SM05-xxA), internal threads (SM05-xxB), external threads (SM05-xxC), and double-ended internal and external threaded slotted lens sleeves (SM05-xxD)
Light-blocking, mounts Ø12.7 mm optical components

LBTEK's SM05 lens sleeves are commonly used to secure optical components with a diameter of Ø12.7 mm or to block stray light in optical paths, preventing ambient light from affecting the system. LBTEK's SM05 lens sleeves are available in four versions: with internal and external threads at both ends (SM05-xxA), with internal threads at both ends (SM05-xxB), with external threads at both ends (SM05-xxC), and slotted lens sleeves with internal and external threads at both ends (SM05-xxD). Lens sleeves can be combined to extend their length, facilitating the rapid assembly of compact optical systems. By using a retaining ring wrench, the retaining ring can be positioned at the desired location inside the lens sleeve to separate and secure optical components. In addition to the standard SM05 lens sleeves, LBTEK also offers SM1 and SM2 lens sleeves, as well as compatible accessories such as lens sleeve adapters, retaining rings, and retaining ring wrenches.

Attribute

Material6061-T6 Aluminum Alloy

Applicable optical element diameterØ12.7 mm

Thread specificationSM05 Thread

Surface treatmentBlack anodized

SM05 lens sleeve, internal and external threads

One end with SM05 external thread, the other end with SM05 internal thread
Suitable for mounting Ø12.7 mm optical elements. Expandable design allows building multi-component optical systems
Includes 1 SM05R retaining ring
Multiple lengths available

The LBTEK internal and external threaded lens sleeve features SM05 external threads on one end and SM05 internal threads on the other, designed to secure optical components with a diameter of Ø12.7 mm. Its expandable design makes it ideal for quickly assembling compact optical systems. Each lens sleeve comes with an SM05R retaining ring for securing optical components.

One end with SM05 external thread, the other end with SM05 internal thread

Product Model	Internal thread size	Unit Price	Lead Time
SM05-75A	75 mm	$13.73	today
SM05-50A	50 mm	$14.38	today
SM05-38A	38 mm	$11.51	today
SM05-12.5A	12.5 mm	$9.81	today
SM05-25A	25 mm	$10.98	today
SM05-8A	8 mm	$9.41	today

SM05 lens sleeve, with internal threads on both ends

SM05 internal threads on both ends
Idea for mounting Ø12.7 mm optical elements
Can use SM05-xxA or SM05-xxC or SM05-12.5T to extend lens tube length
Includes 2 SM05R retaining rings

The LBTEK internally threaded lens sleeve features SM05 internal threads on both ends, allowing direct installation of Ø12.7 mm optical components using retaining rings. It can be combined with SM05-xxA, SM05-25C, or SM05-12.5T to extend its length. Each lens sleeve comes with two SM05R retaining rings for securing optical components.

Both ends come with SM05 internal thread

Product Model	Internal thread size	Unit Price	Lead Time
SM05-75B	75 mm	$10.59	today
SM05-50B	50 mm	$9.41	today
SM05-38B	38 mm	$8.89	today
SM05-12.5B	12.5 mm	$9.28	today
SM05-25B	25 mm	$10.72	today

SM05 lens sleeve, external threads on both ends

SM05 external threads on both ends
Extends lens tube length by mating with internal/external threads and thread adapters
Not for direct mounting of optical elements

The LBTEK external threaded lens sleeve has SM05 external threads on both ends, commonly used to extend the length of lens sleeves. It can also be combined with internal-external threaded adapters and internal threaded sleeves to stack multiple lens sleeves.

Both ends with SM05 external thread

	Product Model	Internal thread size	Unit Price	Compare	Lead Time
	SM05-25C	25 mm	$9.67		today

SM05 Slotted Lens Tube

Side slot for easy optical component operation
Rotatable sliding cover protects optical components
One end with SM05 external thread, the other end with SM05 internal thread
Includes 2 SM05R retaining rings

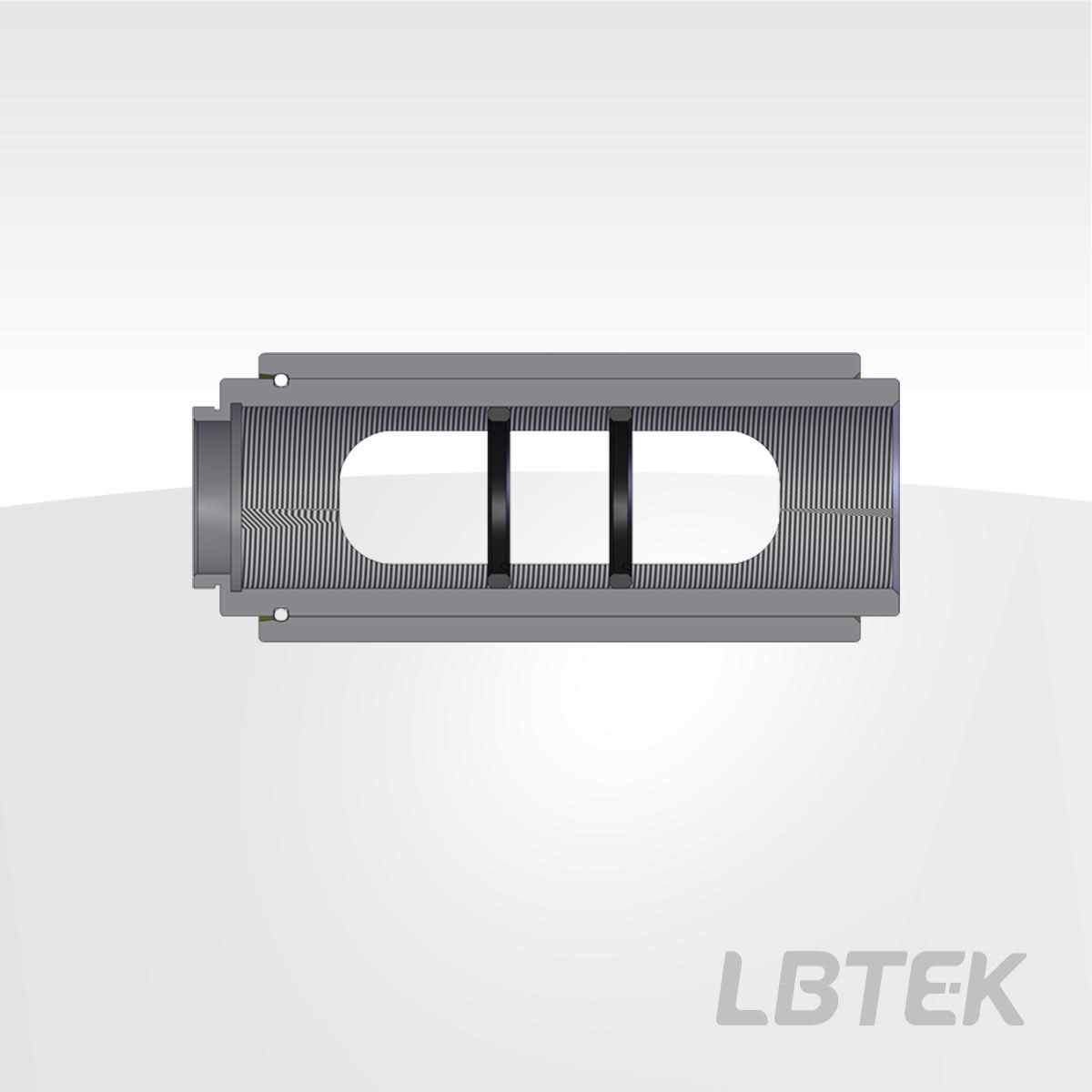

LBTEK 0.5-inch stackable slotted lens tubes feature side slots, enabling quick and easy assembly of complex optical setups and allowing for adjustment of optical elements without disassembling the device. Multiple optical elements can be mounted within a single lens tube using several retaining rings. First, screw the first retaining ring to the desired depth, place the optical element, and then secure it with a second retaining ring. Optical elements can be manually adjusted through the side slots without the need for a spanner wrench. The lens tubes come with a rotatable sliding cover that can close the tube's slots, preventing stray light from entering the system while keeping the optical setup clean. Each lens tube includes two retaining rings.

Side slotted, one end with SM05 external thread, the other end with SM05 internal thread

	Product Model	Internal thread size	Unit Price	Compare	Lead Time

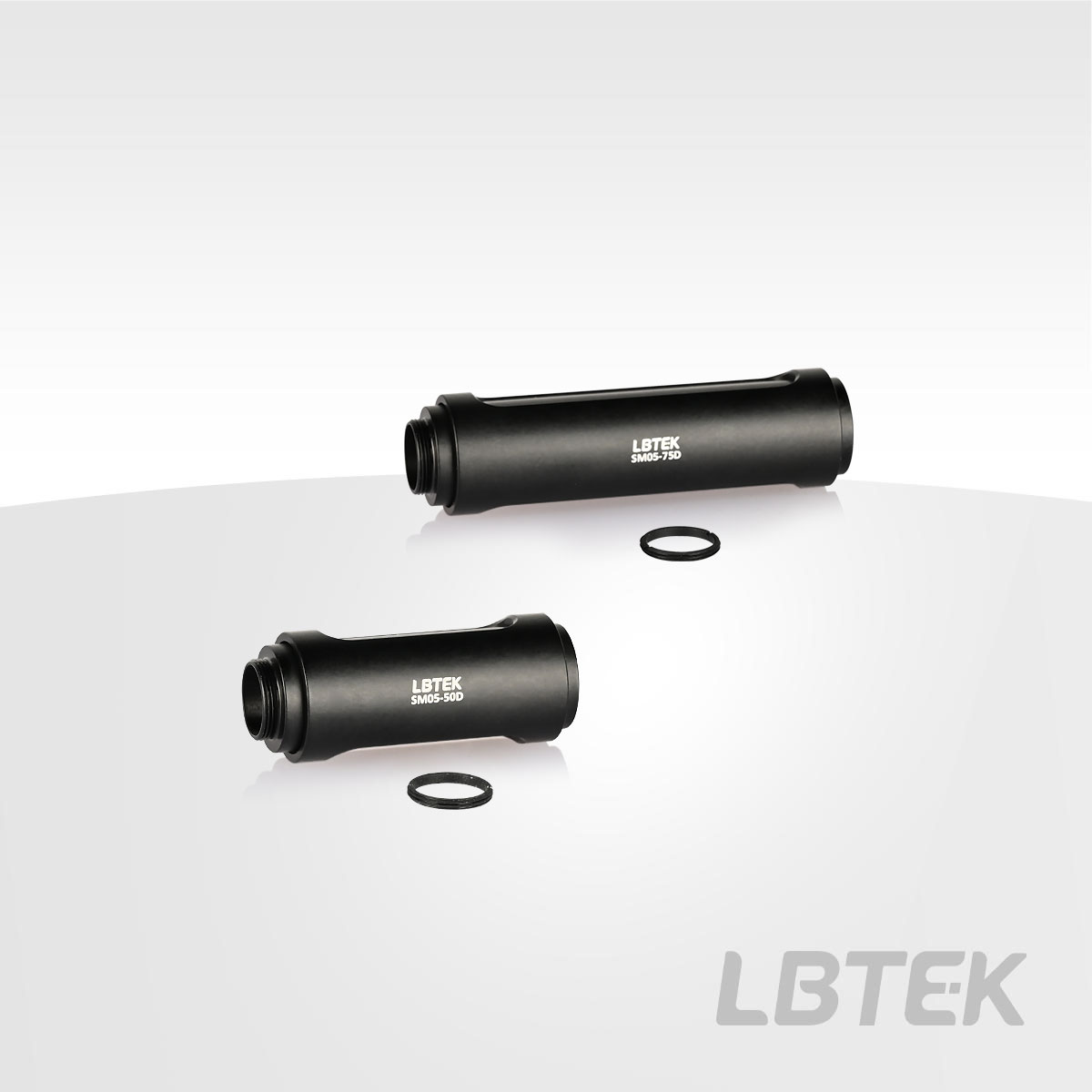

	SM05-75D New	75 mm	$46.15		today
	SM05-50D New	50 mm	$46.15		today

SM05 Lens Sleeve
