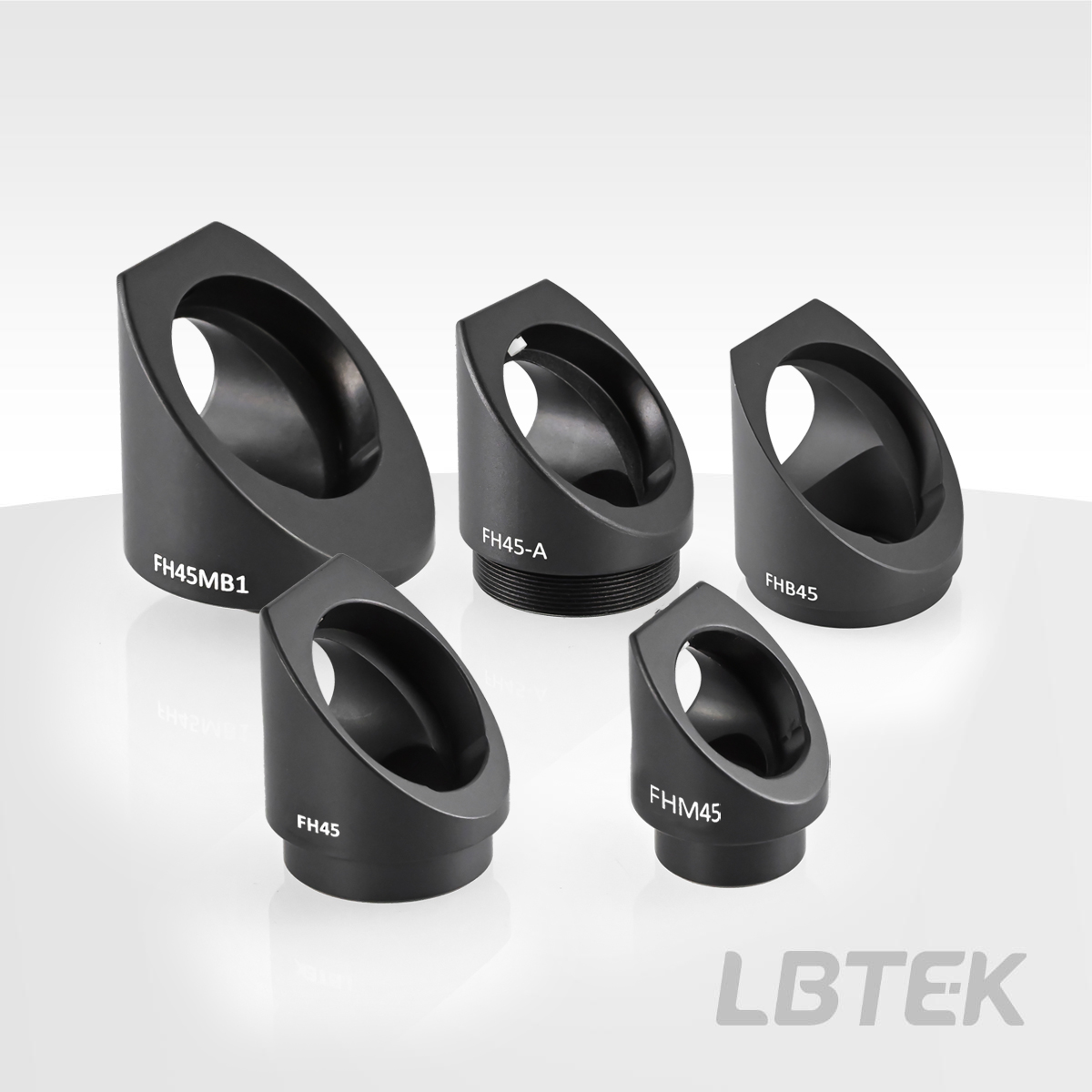

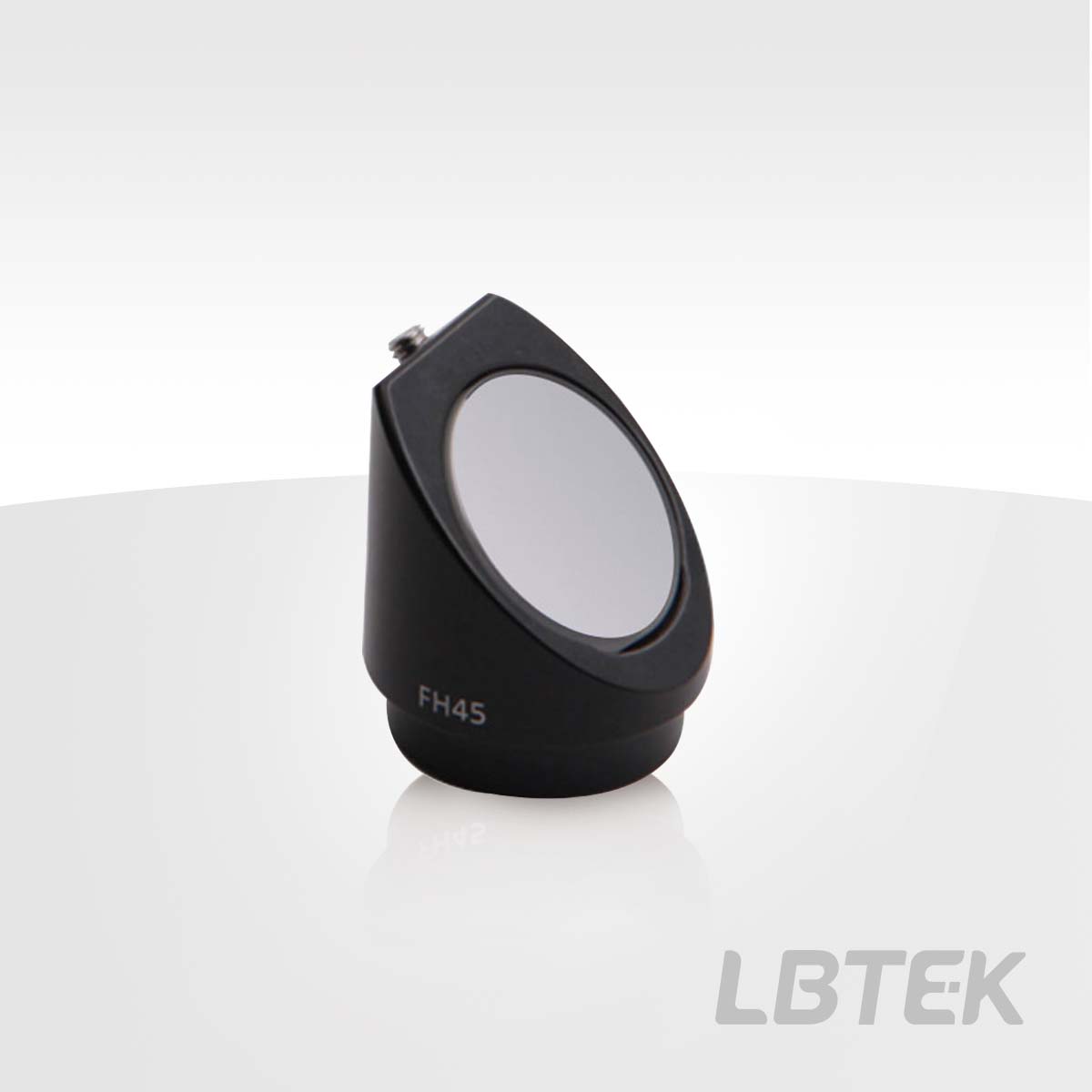

The 45° Mount provided by LBTEK enables a 90° deflection of the light path. The 45° fixed mount can accommodate optical components with three standard sizes: 12.7 mm, 25.4 mm, and 50.8 mm in diameter, secured by top screws. The clamping part offers two connection methods: smooth bores and tapped holes. The fixed mirror mount is compatible with standard O-type mirror mounts and can be integrated into a 30 mm coaxial system.

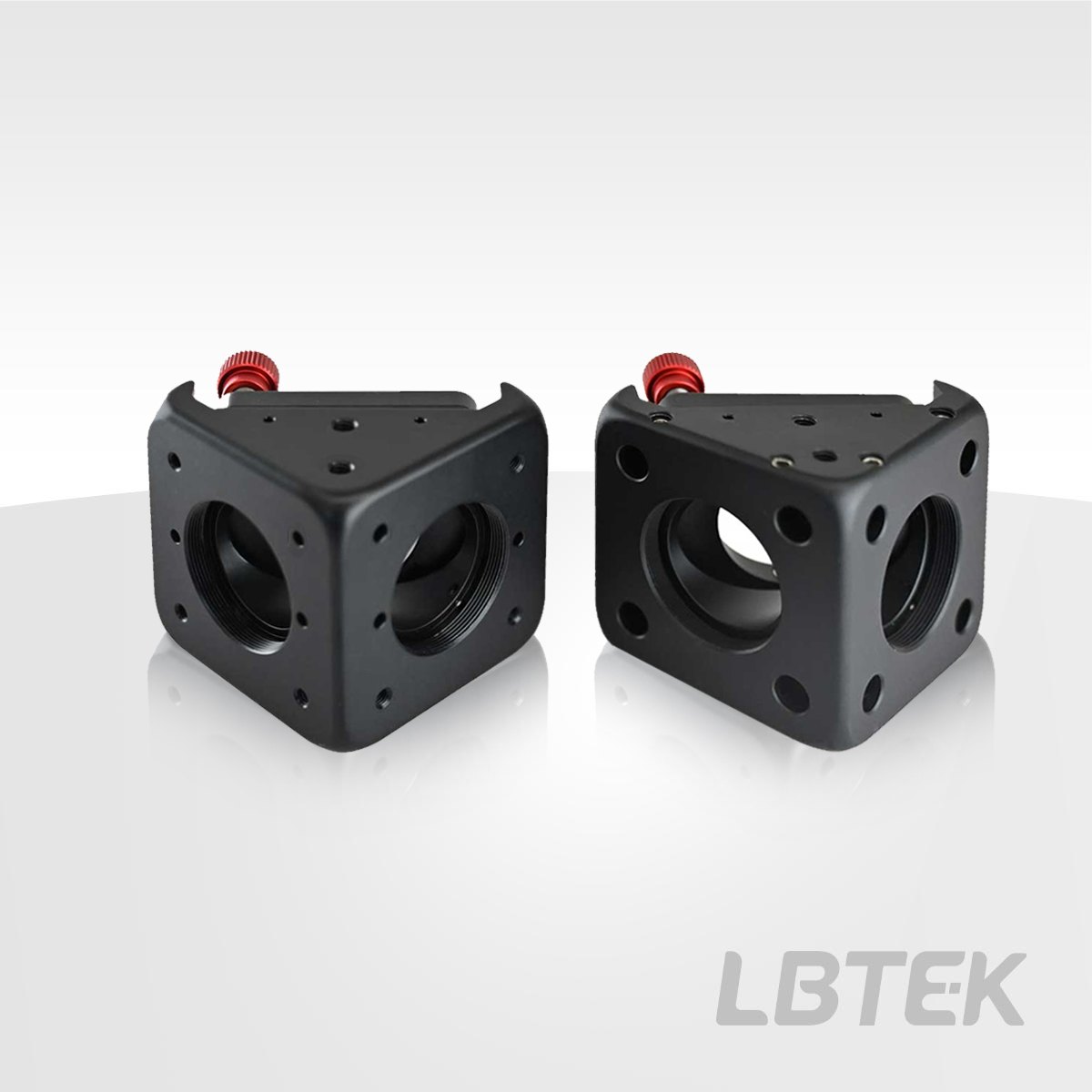

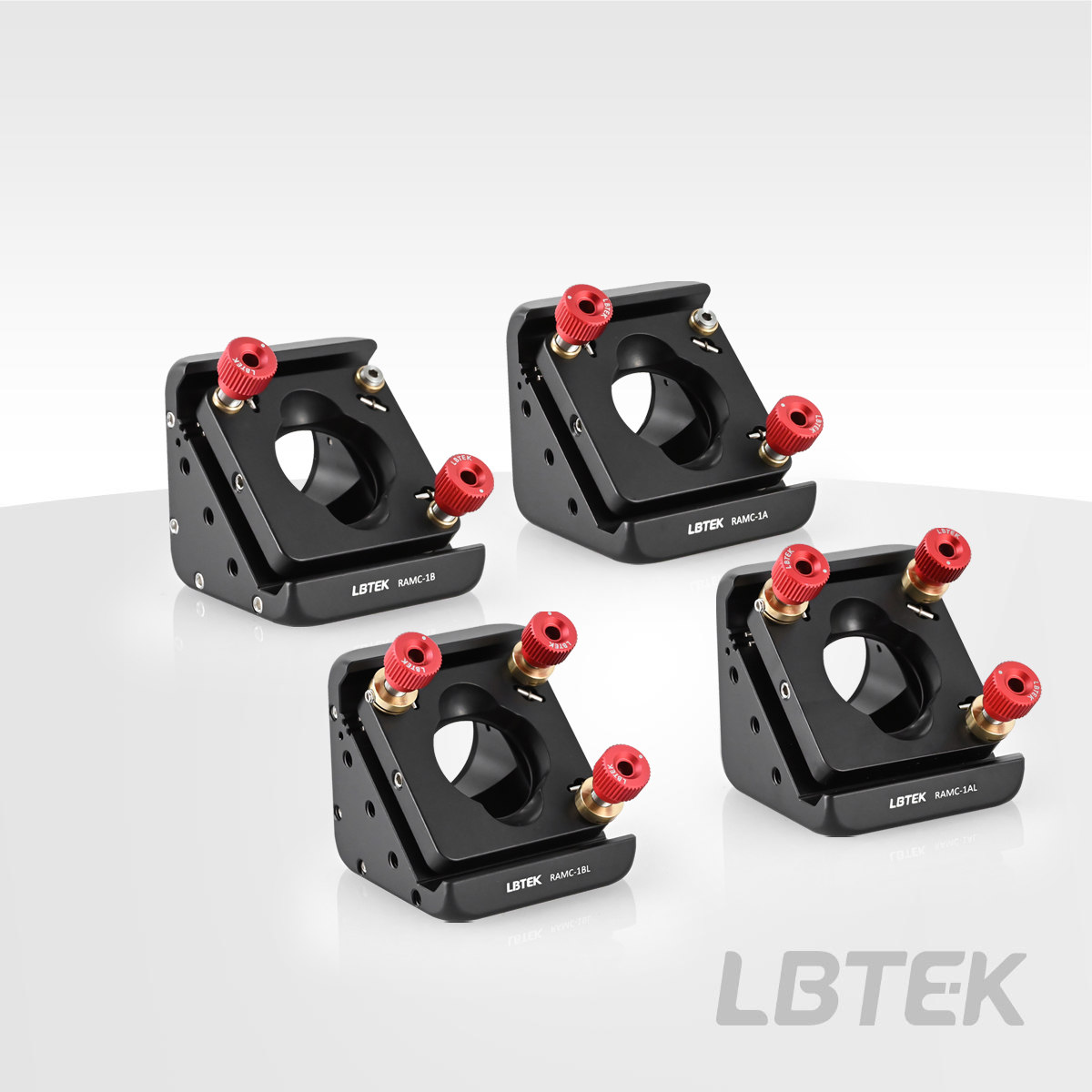

The LBTEK Coaxial System Right-Angle Mount is designed for mounting mirrors at a 45° angle relative to the optical axis. It is compatible with 30 mm coaxial systems and optimized for compact system integration. This mount features an SM1 tapped holes on both the input and output end faces, making it compatible with Ø25.4 mm lens tubes. The beveled surface accommodates Ø25.4 mm optical components with a minimum thickness of 3 mm, secured by set screws. Equipped with three adjusters, it allows for ±4° pitch and yaw adjustments, as well as ±2.5 mm linear displacement adjustments. The end faces are perpendicular. Two mounting options are available for fixing Ø6 mm coaxial post to the end faces: smooth bores and tapped holes. Adjusters are available with or without locking.

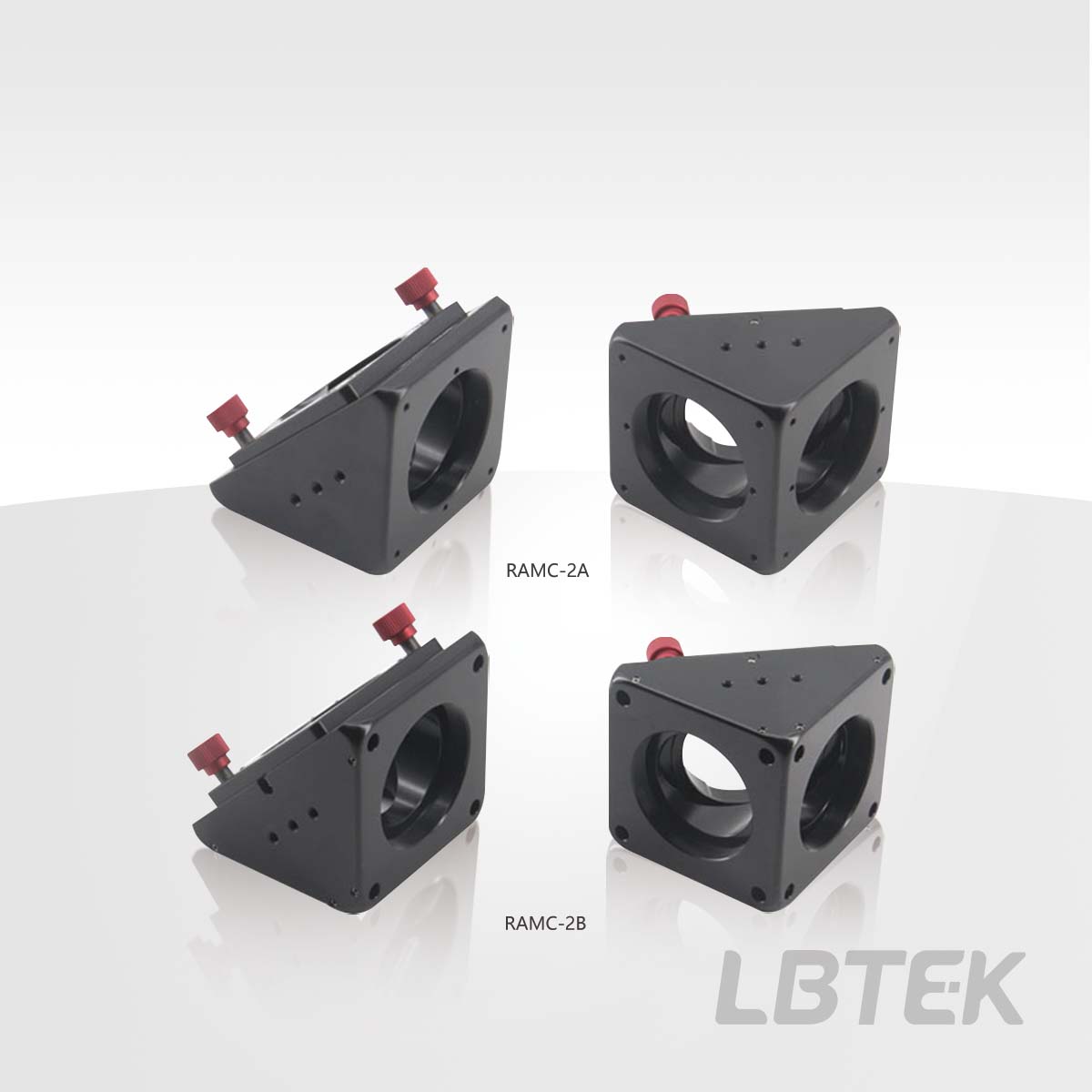

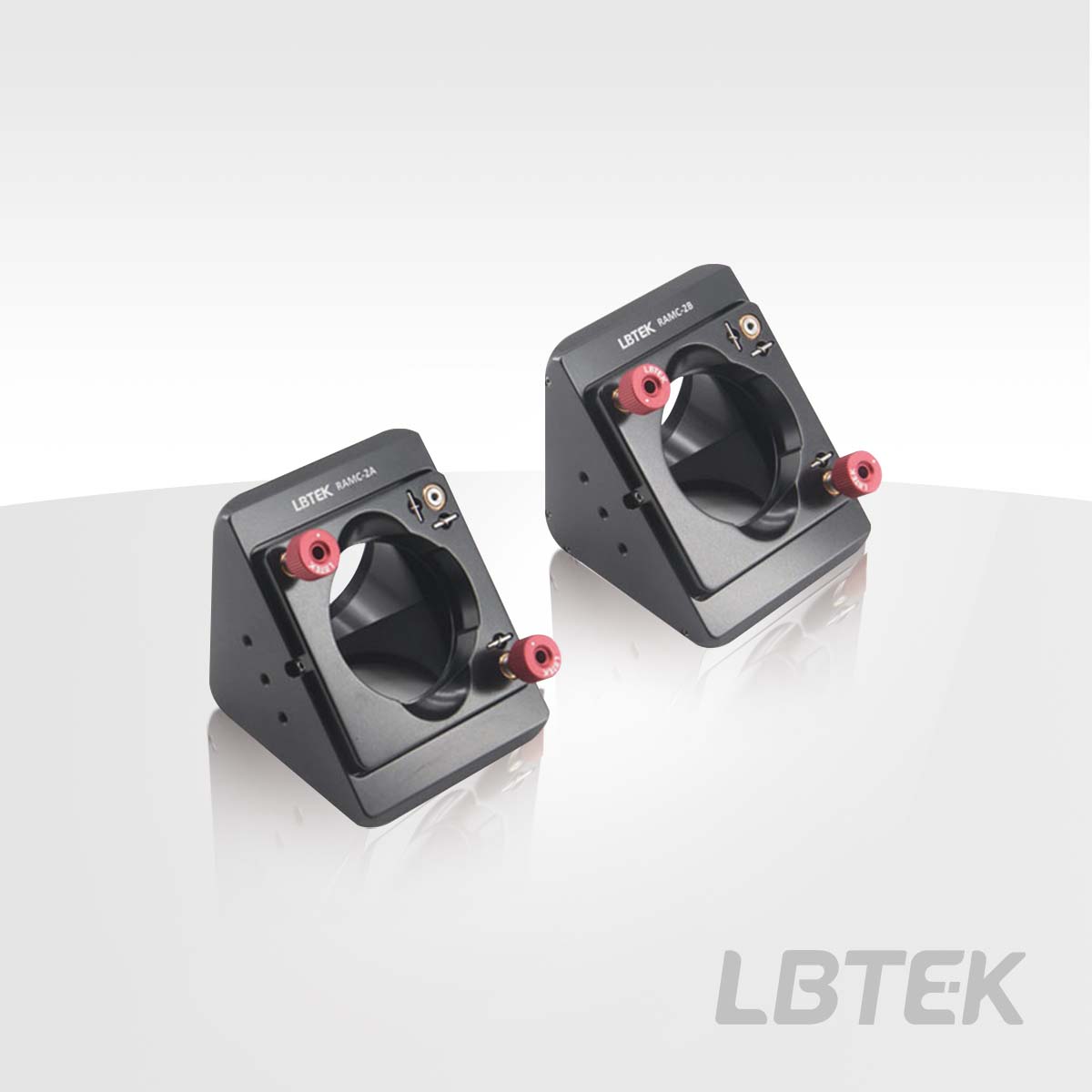

The LBTEK Coaxial System Right-Angle Mount is designed for mounting mirrors at a 45° angle relative to the optical axis. It is compatible with 60 mm coaxial systems and optimized for compact system integration. This mount features SM2 tapped holes on both the input and output end faces, allowing compatibility with SM2 lens tubes. The beveled surface is designed for mounting Ø50.8 mm optical components with a minimum thickness of 6 mm, secured by set screws. Equipped with three adjusters, it enables ±4° pitch and yaw adjustments, along with ±3 mm linear displacement. The end faces are perpendicular. Two adjusters come with knobs, while the third has a hex socket at the end. All three adjusters can be fine-tuned using a 2 mm hex key. The upper and lowwer surfaces include M4 tapped holes (3 in total), suitable for attaching optical posts.

The Fixed 45° Elliptical Mount provided by LBTEK can accommodate elliptical optical components measuring 35.9 mm (major axis) × 25.4 mm (minor axis) × 5.5 mm (thickness), and another at 18 mm(major axis) × 12.7 mm(minor axis) × 6 mm(thickness). The 1-inch fixed elliptical mount features bottom and rear clear apertures of 10.2 mm and 16.7 mm, while the 0.5-inch fixed elliptical mount has bottom and rear clear apertures of 9.1 mm and 10.7 mm. The mount is compatible with standard O-type mirror holders. Note: Gently tighten the M2.5×10 and M2×4 cylindrical head socket screws using the long side of a hex key (torque must not exceed 2 cN·m to to prevent edge damage), securing the optical component with the pressure cap. When the optical component is secured under compression, a gentle push does not cause loosening, and placing the component on its side does not result in falling.

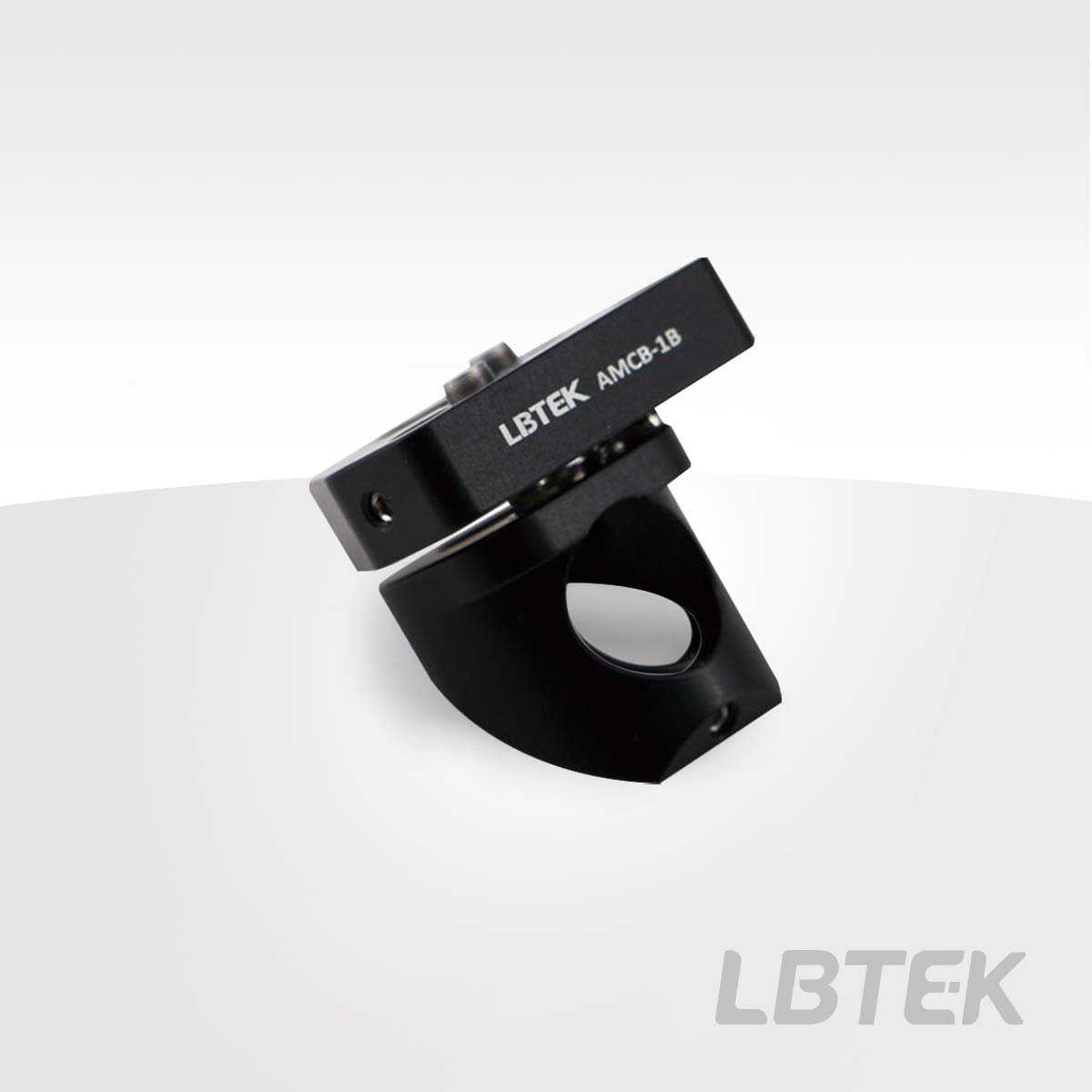

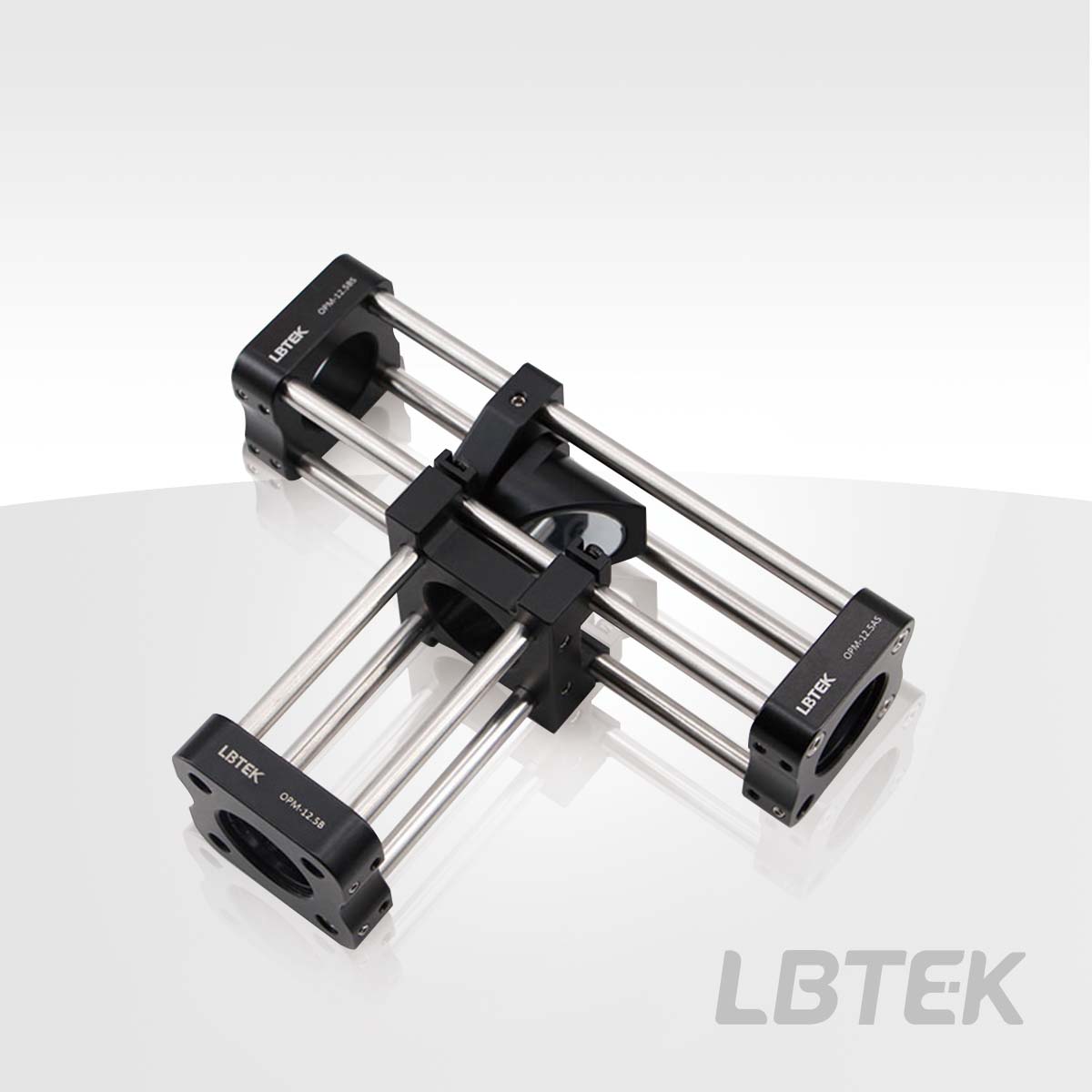

The LBTEK Coaxial System Right-Angle Mount AMCB-1B is designed for 30 mm coaxial systems, allowing sliding within the coaxial system while providing ±2.5° pitch and yaw adjustment with a precision of 0.95° per revolution. The smooth bore is used for mounting optical components with a diameter of Ø25.4 mm and a minimum thickness of 3 mm. Note: When adjusting within the coaxial system, be careful not to over-tighten the adjusters. The pitch and yaw should remain within ±2.5°; exceeding this range may cause interference between the mount and the coaxial system, affecting the product's adjustment accuracy.

The LBTEK Coaxial System Right-Angle Mirror Mount is designed for 45° elliptical mirrors, compatible with 30 mm coaxial systems and suitable for compact system integration. The mount features SM1 tapped holes on both input and output end faces, compatible with Ø25.4 mm lens tubes. Its bevel accommodates elliptical optical components (major axis 35.9 mm, minor axis 25.4 mm, thickness 6 mm). Optical components are secured by spring-loaded set screws (screw penetration depth adjustable for component thickness). Three integrated adjusters provide ±4º pitch/yaw adjustment and ±2.5 mm linear displacement. The end faces are perpendicular, compatible with Ø6 mm coaxial rods, available in smooth bores or threaded holes configurations.

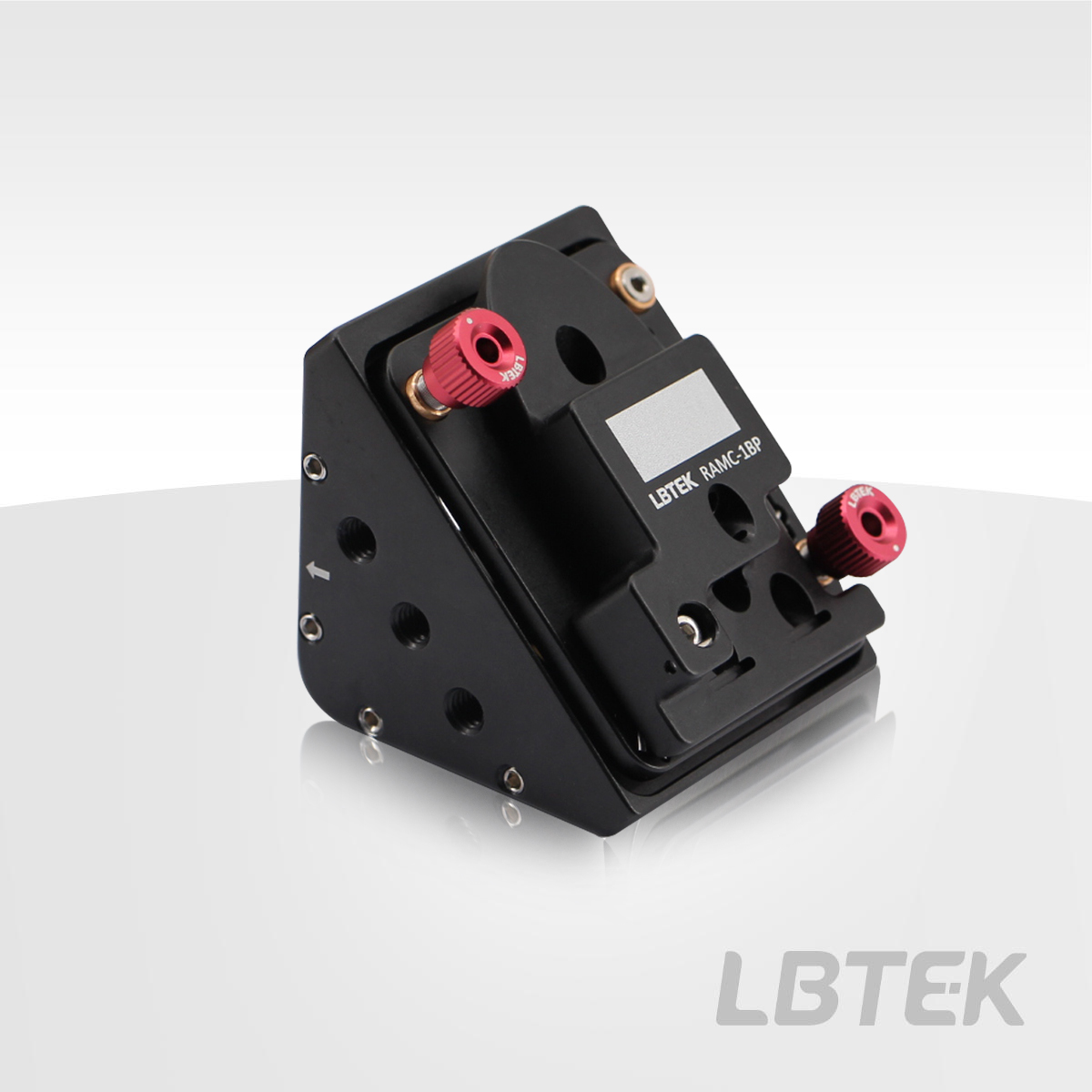

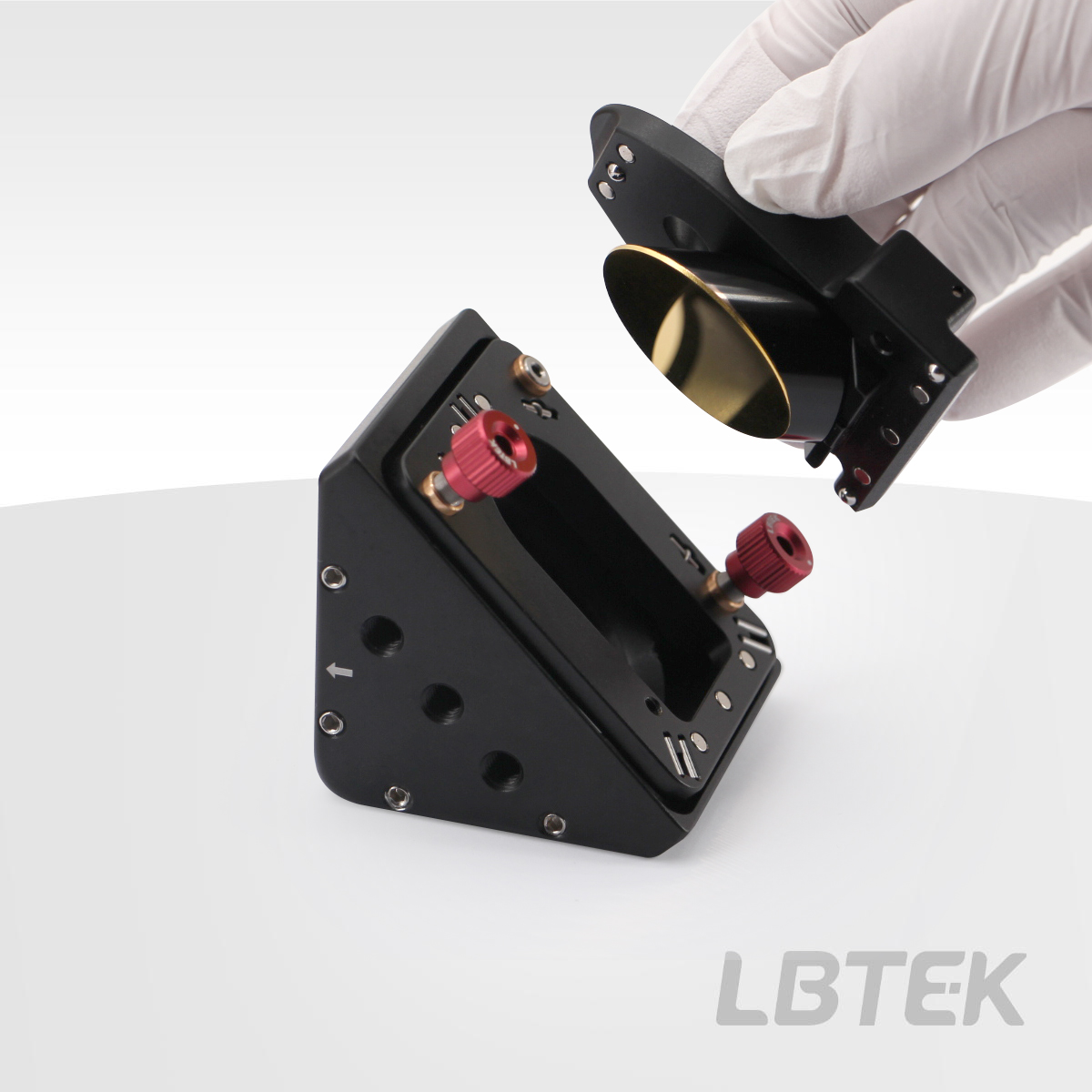

The LBTEK Coaxial System Right Angle Mount RAMC-1BP can be used to mount off-axis parabolic mirrors, compatible with 30 mm coaxial systems, and suitable for compact system integration. This mirror mount features an SM1 tapped hole on both the input and output end faces, compatible with lens tubes of 25.4 mm diameter. The off-axis parabolic mirror is mounted to the quick-detachment mounting plate using the included screws and pins. Through a steel ball and dual-wire positioning structure, it allows for quick detachment while providing high repeatability. After positioning, it is secured with non-removable M3 screws. Equipped with three adjusters, it enables ±3.4° pitch and yaw adjustments, as well as ±2.5 mm linear displacement adjustments. The input and output end faces are perpendicular to each other.

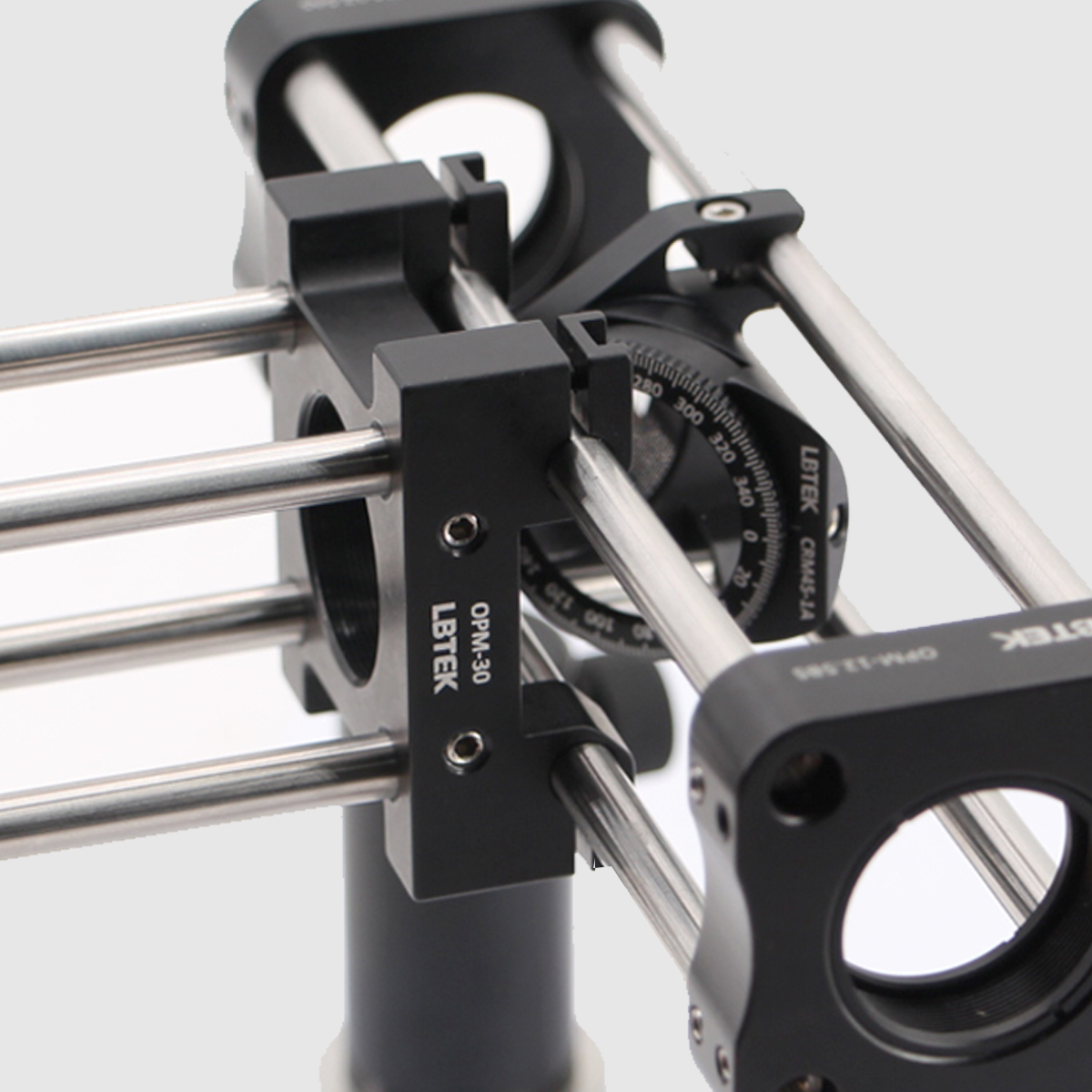

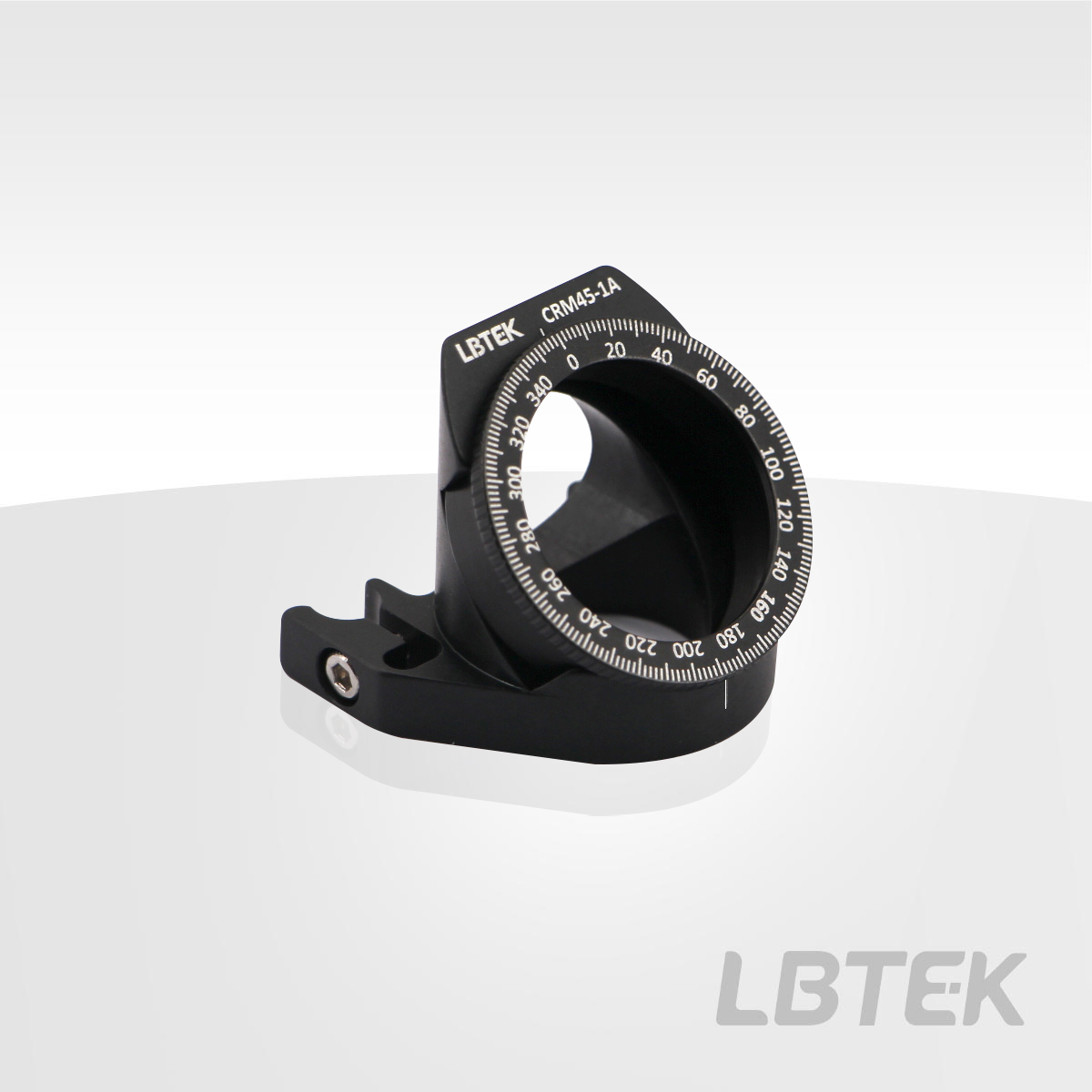

The LBTEK Coaxial System Right Angle Rotation Adjuster CRM45-1A is designed for 30 mm coaxial systems, featuring a flexible locking mechanism for quick detachment. The embedded mount CRM45-1AS is secured with set screws, allowing for quick detachment and is sold separately. Note: The embedded mount must be removed before mounting the adjuster into the coaxial system. After locking the adjuster onto the coaxial post, reattach the embedded mount to the base for final fixation.

The LBTEK Coaxial System Right-Angle Mount is designed for 45° elliptical mirrors, compatible with 60 mm coaxial systems and suitable for compact system integration. The mount features SM2 tapped holes on both input and output end faces, compatible with SM2 lens tubes. Its bevel accommodates elliptical optical components (major axis 71.8 mm, minor axis 50.8 mm, thickness 12 mm).The optical component is secured by side rubber-tipped set screws and an arm-mounted rubber-tipped screw (screw penetration depth adjustable for component thickness). Three integrated adjusters provide ±3° pitch and yaw adjustment and ±3 mm linear translation. The end faces are perpendicular with smooth bores, compatible with Ø6 mm coaxial posts. Side-mounted M6 and M4 tapped holes enable mounting onto optical posts.
