- Combining the features of optical mounts and manual rotation mounts
- Providing ±3° or ±4° of pitch and yaw adjustment
- Capable of continuous 360° rotation with 2° scale precision, can be individually locked
- Designed for holding rotationally asymmetric optical components
- Applicable to optical components diameter: Ø12.7mm
- Maximum thickness of mounted optical components: 7.2 mm
- Two lockable adjusters
- Pitch/yaw adjustment range ±4°, 0.72° per rotation
- 360° continuous rotation , scale accuracy 2°
- Adjusters and rotation mount can be individually locked with locking screws
- Including 1 SM05R retaining ring

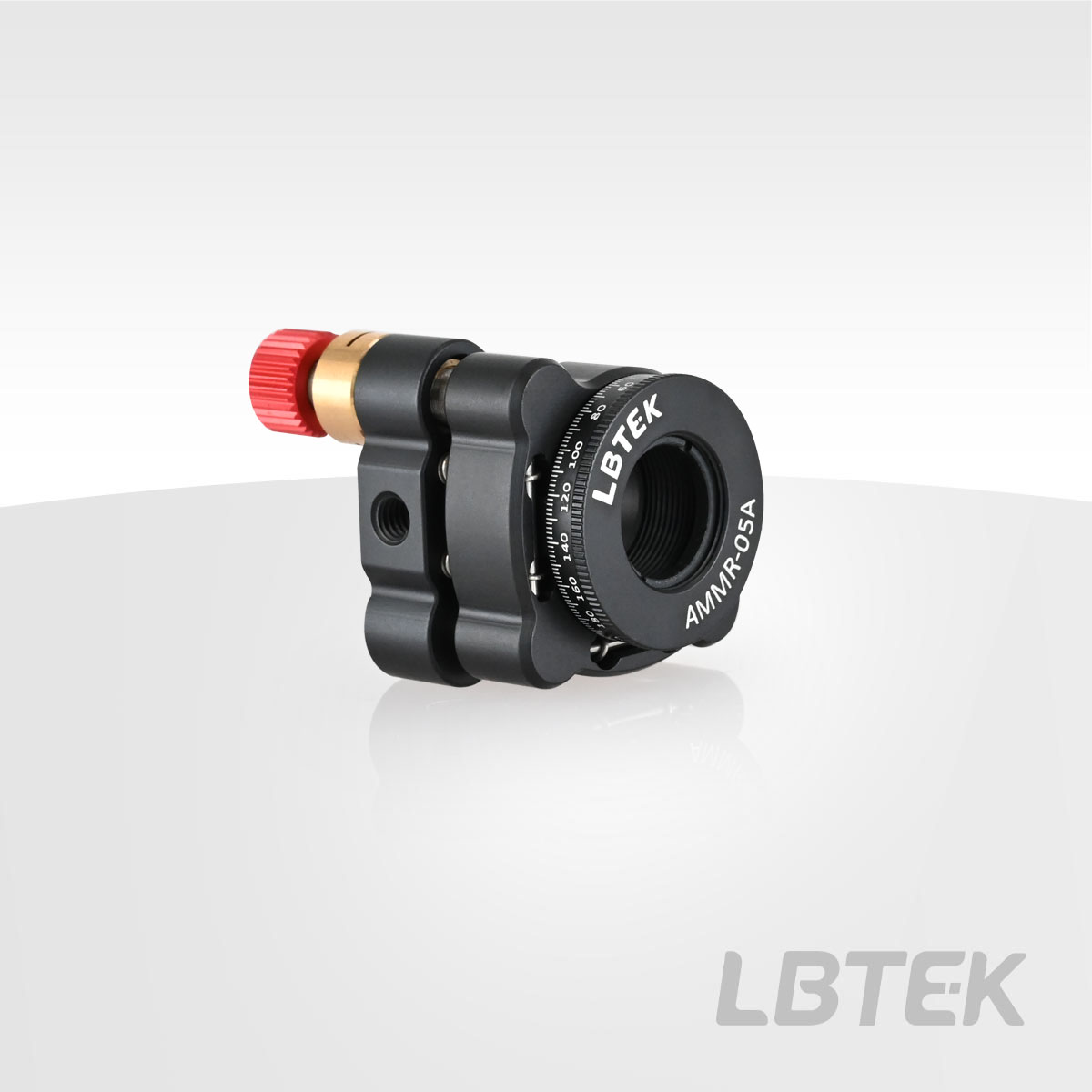

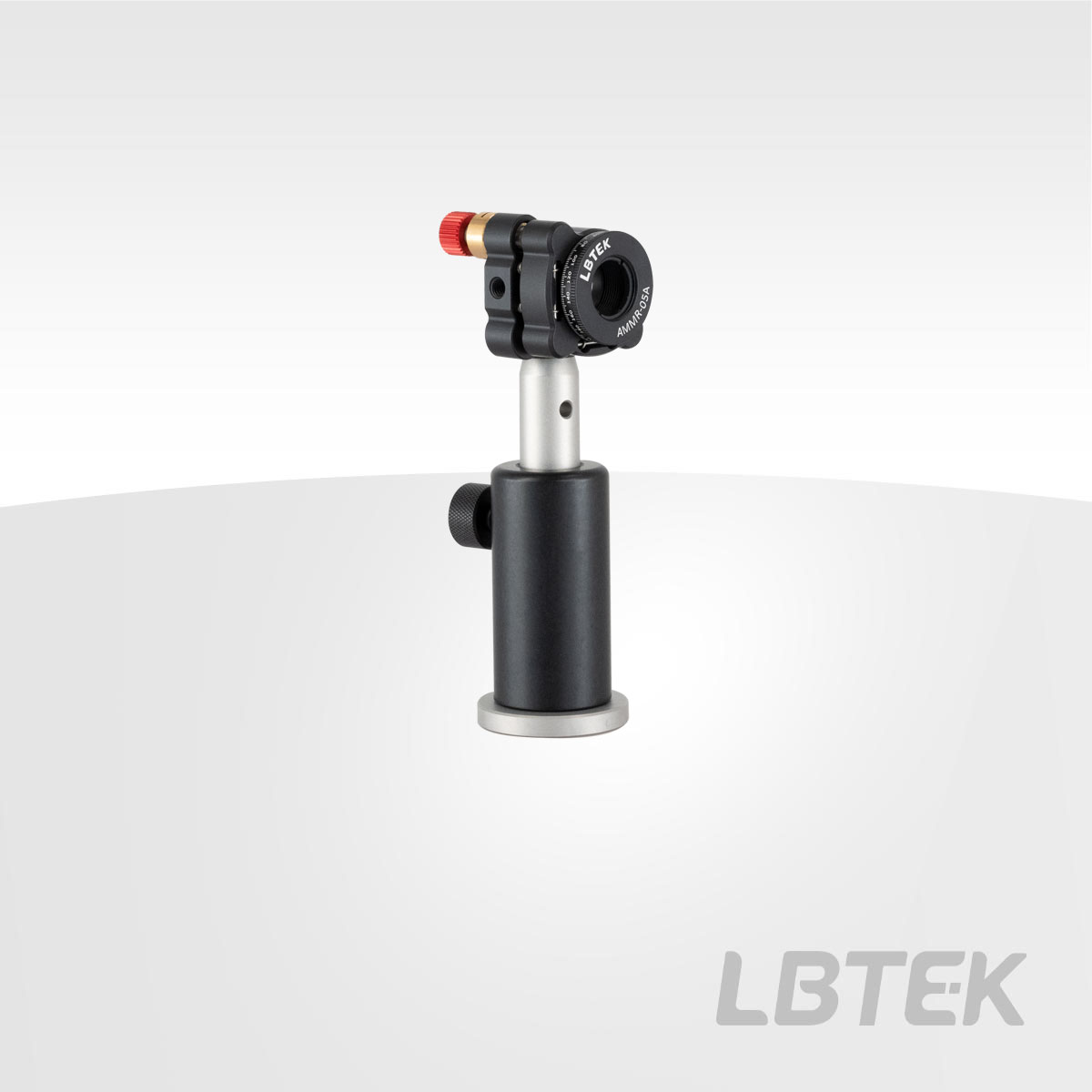

The LBTEK Optical Precision Rotation Mount features an SM05 tapped hole at its center, allowing the installation of optical components with a diameter of Ø12.7 mm and a maximum thickness of 7.2 mm using the included SM05R retaining ring. Additionally, an SM05 lens tube can be threaded into the mount to secure thicker optical components. The mount is equipped with two M5X025-25KL precision adjustment screw pairs, each featuring an M3 locking screw in the threaded bushing. These locking screws can be secured using a 1.5 mm hex wrench. The rotation of the mount can be fixed using an M4 locking screw, which can be tightened or loosened with a 2.0 mm hex wrench.
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AMMR-05A | Ø12.7 mm | 7.2 mm | $137.28 | 6 weeks |
- Applicable to optical component diameter: Ø25.4 mm
- Maximum thickness of mounted optical components: 9.4 mm
- Three lockable adjusters supporting Z-axis displacement
- Pitch/yaw adjustment range ±4°, 0.4° per rotation
- 360° continuous rotation, scale accuracy 2°
- Adjusters and rotation mount can be individually locked with screws
- Including 1 SM1R retaining ring

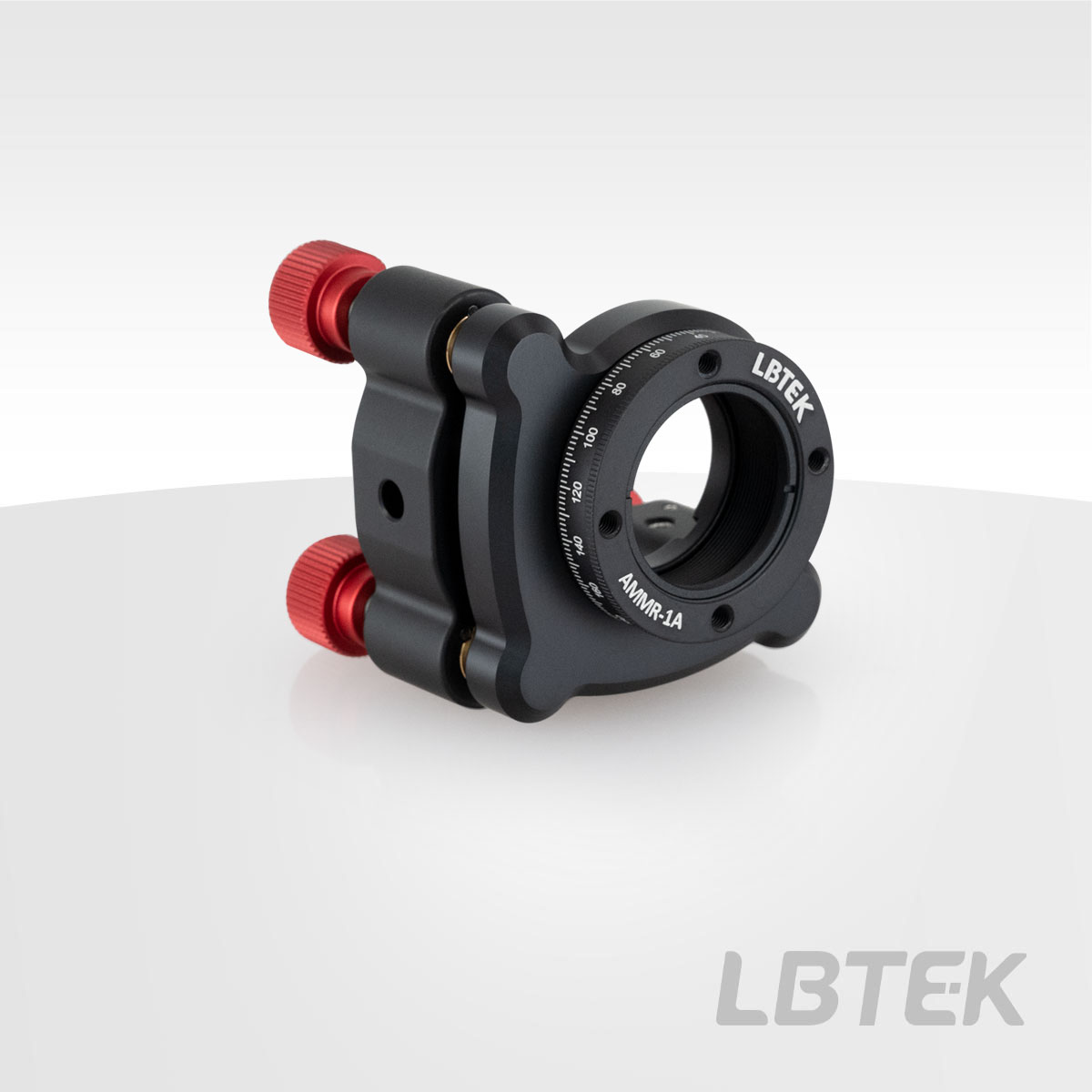

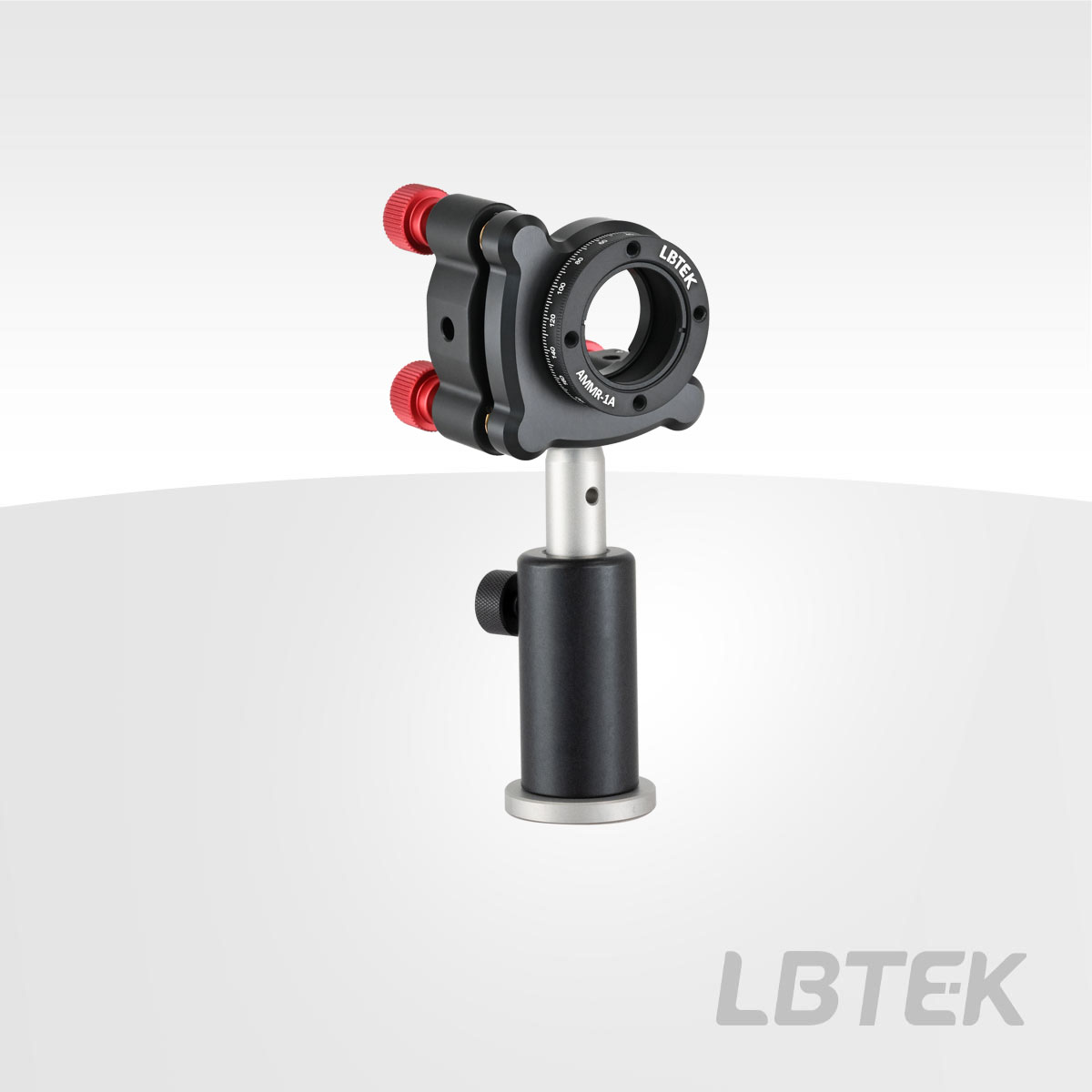

The LBTEK Optical Rotation Mount is commonly used in requiring control over the angular position and rotation of optical components. It features a central SM2 tapped hole for mounting Ø25.4 mm diameter optical elements (up to 9.4 mm thickness) using the included SM2R retaining ring. Additionally, an SM1 lens tube can be threaded into the mount to secure thicker optical components. The mount is equipped with three M6 precision adjustment screws. On the sidewall where the screws are installed, there is an M4 locking screw that can be tightened or loosened using a 2.0 mm hex wrench to secure the adjustment screws. The 360° rotation of the mount can also be independently locked using an M4 locking screw, which can be adjusted with a 2.0 mm hex wrench. Purchasing the LBTEK Optical Rotation Mount includes one 2.0 mm hex wrench.
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AMMR-1A | Ø25.4 mm | 9.4 mm | $139.11 | 6 weeks |
- Applicable to optical component diameter: Ø50.8 mm
- Maximum thickness of mounted optical component: 12 mm
- Two lockable adjusters
- Pitch/yaw adjustable angle range ±3°, 0.23° per rotation
- 360° continuous rotation, scale accuracy 2°
- Adjusters and rotation mount can be individually locked with locking screws
- Including one SM2R retaining ring

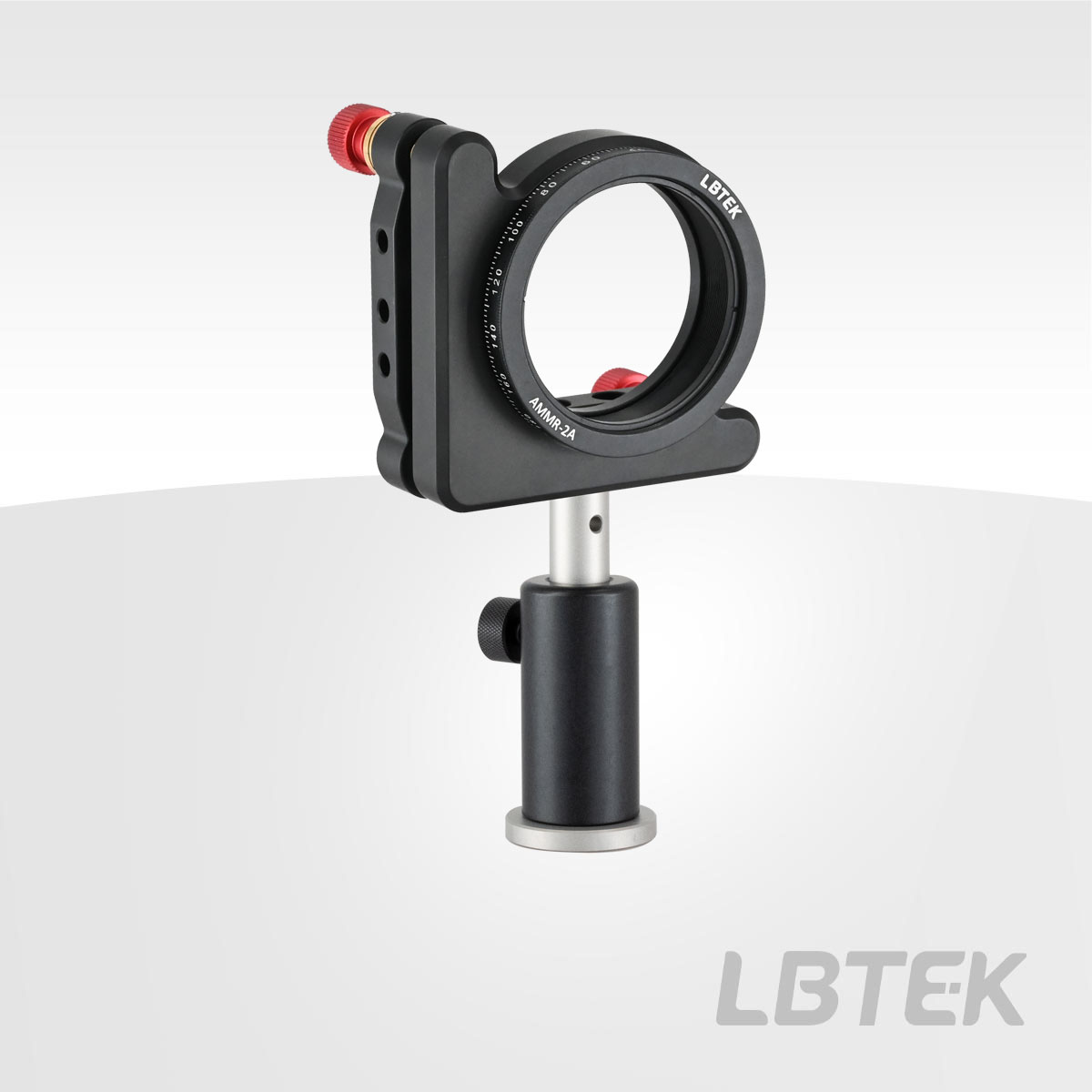

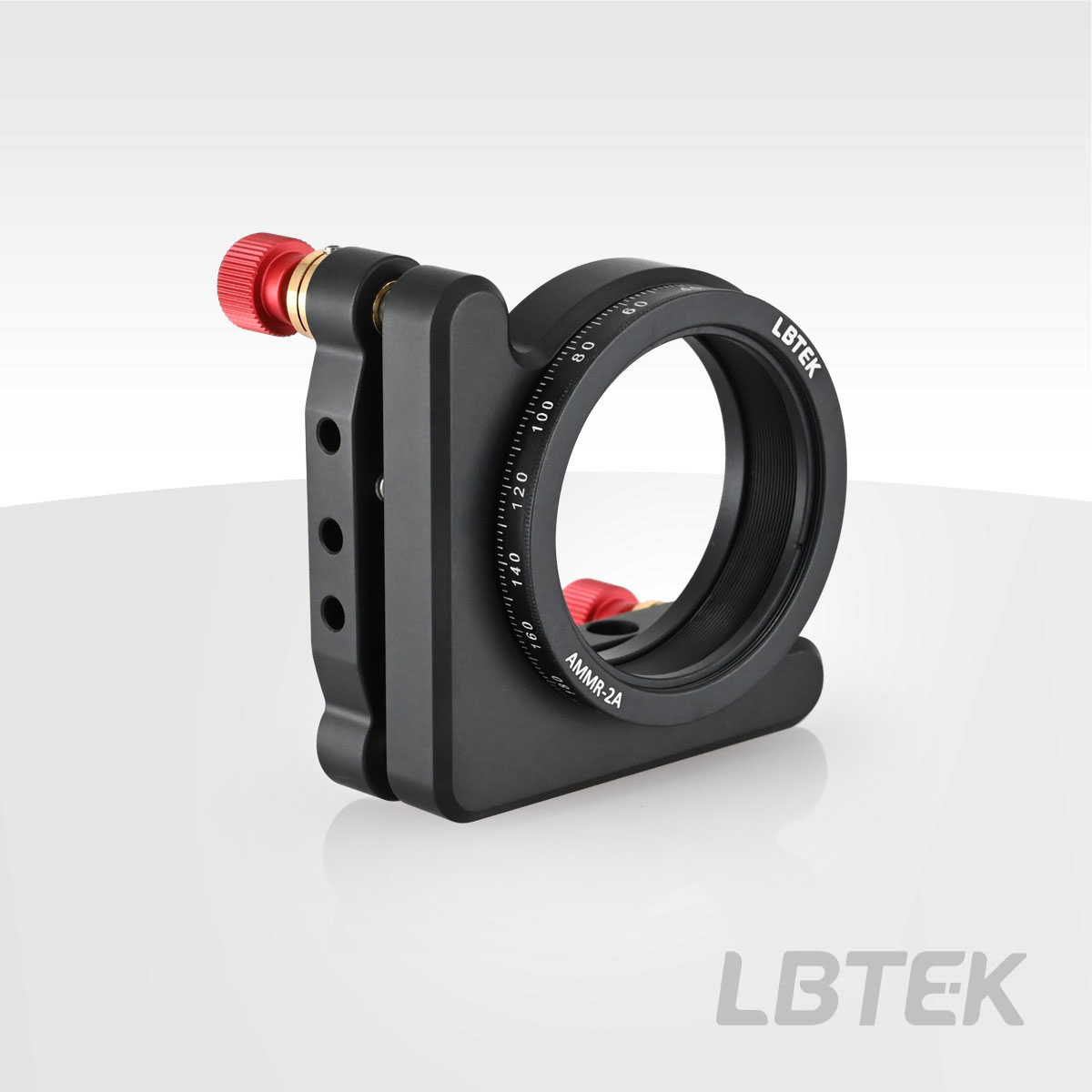

The LBTEK Optical Rotation Mount is commonly used in requiring control over the angular position and rotation of optical components. It features a central SM2 tapped hole for mounting Ø50.8 mm diameter optical components (up to 12 mm thickness) using the included SM2R retaining ring. Additionally, SM2 lens tubes can be threaded into the mount to secure thicker optics. The mount is equipped with two M6 precision adjustment screw pairs, each featuring an M3 locking screw in the threaded bushing. These locking screws can be tightened using a 1.5 mm hex wrench to secure the adjustment mechanism. The rotation of the mount can be fixed using an M4 locking screw, which can be adjusted with a 2.0 mm hex wrench. The back plate includes six M4 countersunk holes for attaching optical posts, enabling both left- and right-handed mounting. Purchasing the LBTEK Optical Rotation Mount includes one 2.0 mm hex wrench.
Product Model | Applicable optical element diameter | Maximum applicable thickness of optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AMMR-2A | Ø50.8 mm | 12 mm | $167.35 | 7 weeks |
