Product Description

For mounting D-shaped optical components with a diameters of 25.4 mm/12.7 mm
Maximizing clear aperture to avoid blocking other beams in beam-splitting
Mounted horizontally or vertically
Left-handed/right-handed

The LBTEK D-Shaped Optical Mount is designed for mounting D-shaped optical components, offering three options: left-handed, right-handed, and fixed. The optical component is secured by two rubber-tipped screws on the back of the D-shaped optical mount. The LBTEK D-Shaped Optical Mount features a compact design that maximizes the clear aperture, preventing obstruction of other beams in beam-splitting. The D-Shaped Optical Mount allows angular adjustment via two or three precision adjustment screw pairs, providing a ±4° adjustment range. The AMM3 series includes three precision adjustment screw pairs, with threaded bushings featuring a locking mechanism. The locking screws can be secured using a 2.0 mm hex wrench. Additionally, the D-Shaped Optical Mount has one M4 countersunk/threaded mounting hole on either the side or the bottom. When purchasing the LBTEK D-Shaped Optical Mount in the 1-inch series, two M4 socket head cap screws and one 1.5 mm hex wrench are included. The 0.5-inch series comes with a 1.5 mm hex wrench and a 2.0 mm hex wrench.

Attribute

Material6061-T6 aluminum alloy

Surface treatmentBlack anodized

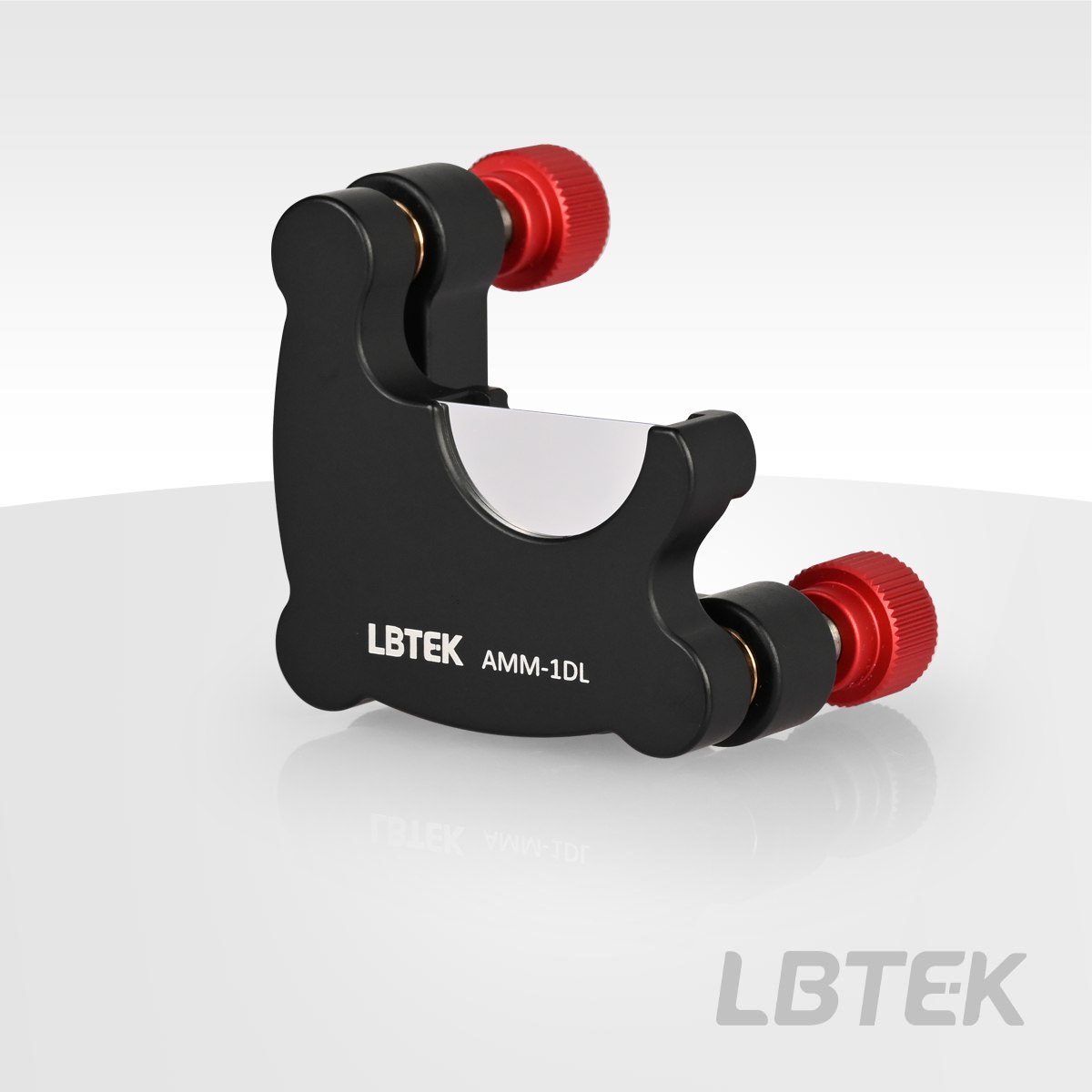

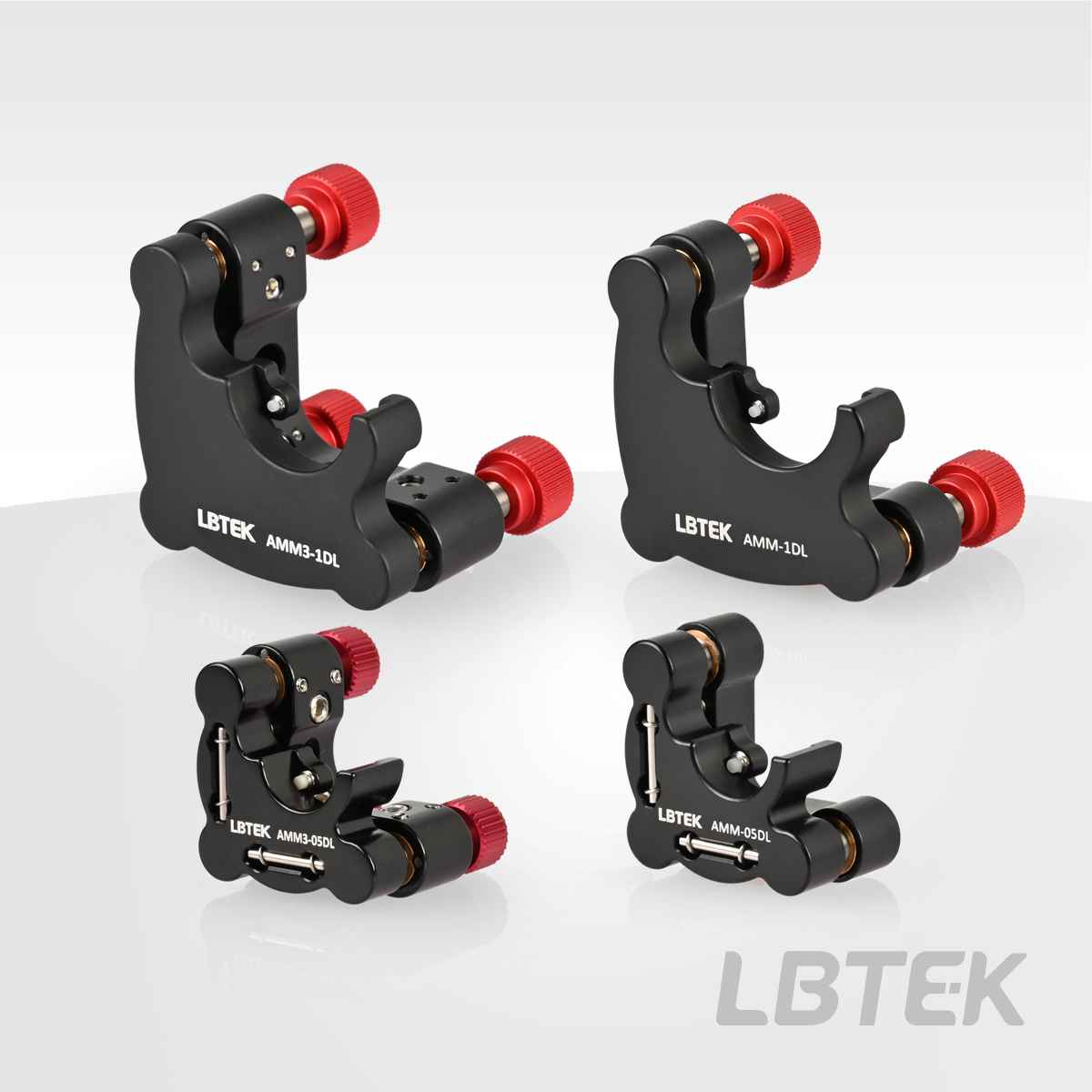

D-Shaped Optical Mounts, Left-Handed

For D-shaped optical components with diameters of 25.4 mm/12.7 mm
Left-handed mounting

LBTEK D-Shaped Optical Mounts, designed for mounting D-shaped optical components with diameters of 25.4 mm/12.7 mm. The optical component is secured by two rubber-tipped screws on the back of the D-shaped optical mount. There is one M4 countersunk/tapped mounting hole on either the side or bottom of the D-shaped optical mount. When purchasing the LBTEK D-Shaped Optical Mount 1-inch series, it comes with 2 M4 socket head cap screws and a 1.5 mm hex key. The 0.5-inch series includes a 1.5 mm hex key and a 2.0 mm hex key.

D-Shaped Optical Mounts are commonly used for D-shaped optical components.

Product Model	Applicable optical component size	Maximum applicable thickness of optical components	Unit Price	Lead Time
AMM3-1DL	Ø25.4 mm, D-shaped	6 mm	$85.5	5 weeks
AMM-1DL	Ø25.4 mm, D-shaped	6 mm	$80.41	6 weeks
AMM3-05DL	Ø12.7 mm, D-shaped	6 mm	$68.51	5 weeks
AMM-05DL	Ø12.7 mm, D-shaped	6 mm	$60.14	6 weeks

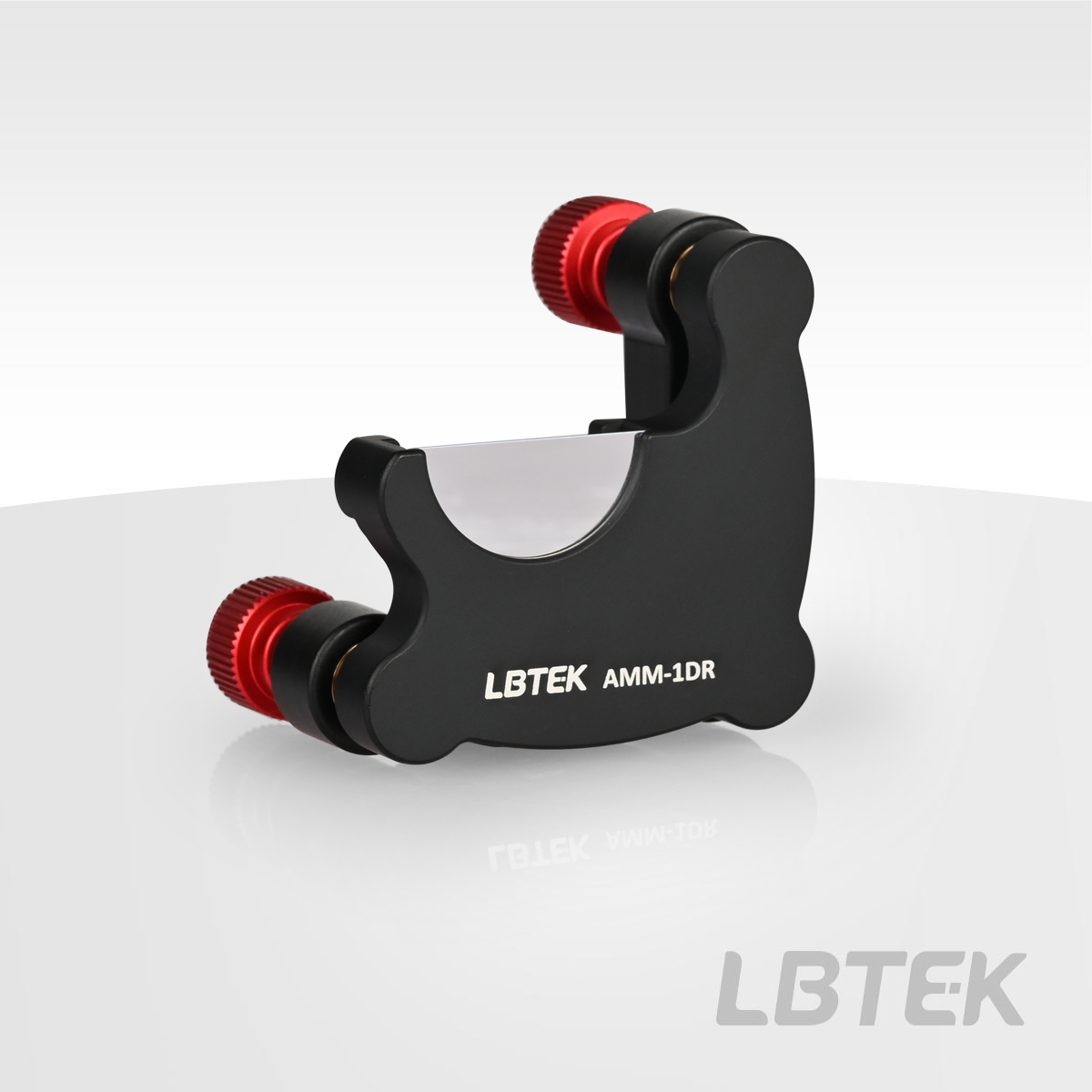

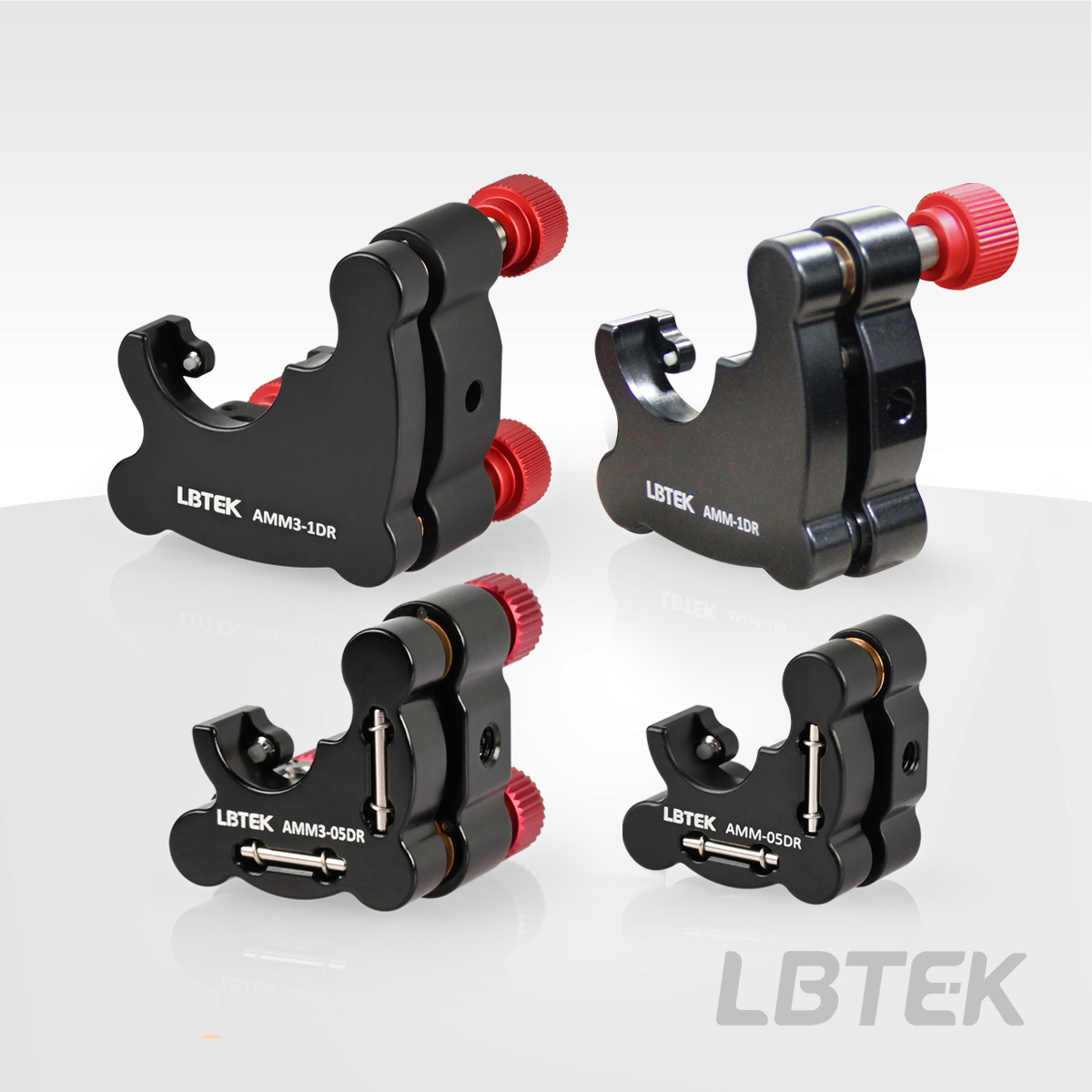

D-Shaped Optical Mounts, Right-Handed

For D-shaped optical components with diameters of 25.4 mm/12.7 mm
Right-handed mounting

LBTEK D-Shaped Optical Mount, designed for mounting D-shaped optical components with diameters of 25.4 mm/12.7 mm. The optical component is secured by two rubber-tipped screws on the back of the D-shaped optical mount. There is one M4 countersunk/tapped mounting hole on either the side or bottom of the D-shaped optical mount. When purchasing the LBTEK D-Shaped Optical Mount 1-inch series, it comes with 2 M4 socket head cap screws and a 1.5 mm hex key. The 0.5-inch series includes a 1.5 mm hex key and a 2.0 mm hex key.

D-Shaped Optical Mounts are commonly used for D-shaped optical components.

Product Model	Applicable optical component size	Maximum applicable thickness of optical components	Unit Price	Lead Time
AMM3-1DR	Ø25.4 mm, D-shaped	6 mm	$85.5	5 weeks
AMM3-05DR	Ø12.7 mm, D-shaped	6 mm	$68.51	5 weeks
AMM-05DR	Ø12.7 mm, D-shaped	6 mm	$60.14	6 weeks
AMM-1DR	Ø25.4 mm, D-shaped	6 mm	$80.41	6 weeks

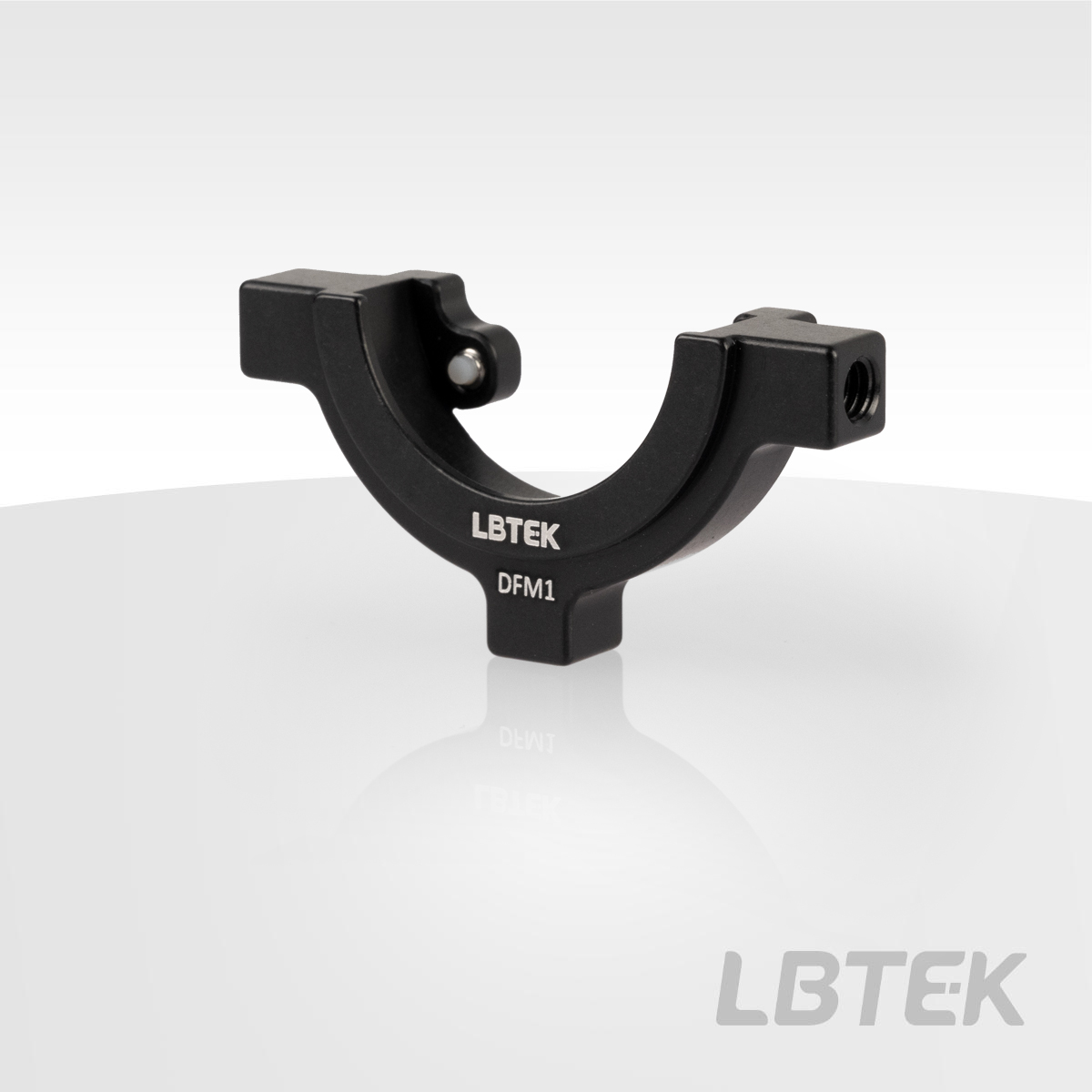

Fixed D-Shaped Optical Mounts

D-shaped mirrors can be installed
Mounted horizontally or vertically
Maximum thickness of applicable optical components: 6.1mm

LBTEK Fixed D-Shaped Optical Mount, designed for mounting D-shaped optical components with a maximum thickness of 6.1 mm and Ø25.4 mm. The optical component is secured by two M3 rubber-tipped screws on the back of the mount. This mount can be installed either horizontally or vertically, with M4 threaded mounting holes. For space-constrained applications, this mount can also be used to install Ø25.4 mm round flat optical components.

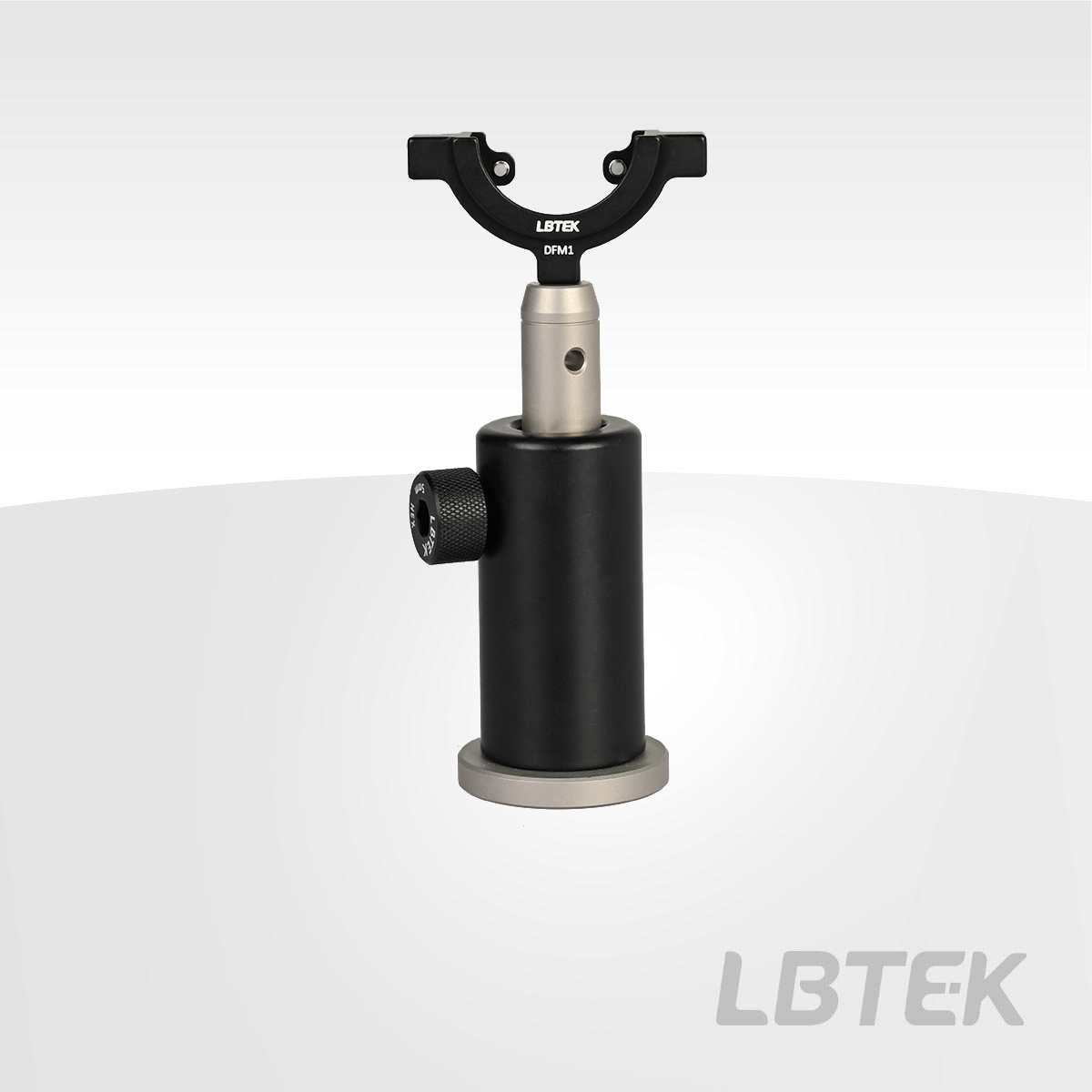

Fixed D-shaped optical mount with post

	Product Model	Applicable optical component size	Maximum applicable thickness of optical components	Unit Price	Compare	Lead Time
	DFM1	Ø25.4 mm	6.1 mm	$41.05		5 weeks
