Product Description

For optical components with diameters of 12.7 mm, 25.4 mm, and 50.8 mm
The clear-edge design allowing close-proximity beams to pass through the exposed outer radius of the optical component without obstruction from the front plate of the mount
Supporting both left-handed and right-handed mounting

LBTEK Clear-Edge Optical Mount for optical components with diameters of 12.7 mm, 25.4 mm, and 50.8 mm, compatible with both left and right-handed installations. The optical components are secured via the mount's rubber-tipped screws, and the clear-edge design ensures unobstructed close-proximity beam reflection without obstruction from the mount's front plate. The AMM3 series mount offers an angular adjustment range of ±4°, featuring an increased backplate thickness for enhanced stability compared to LBTEK's Standard Two-Axis Optical Mounts. It includes three precision adjustment screw pairs, with threaded bushings equipped with a locking mechanism. These locking screws can be secured using a 2.0 mm hex key. The ACMM series mount provides a ±5° angular adjustment range and supports quick-replacement adjusters, accommodating various adjustment screws, micrometers, and electric actuators.

Attribute

Material6061-T6 aluminum alloy

Surface treatmentBlack anodized

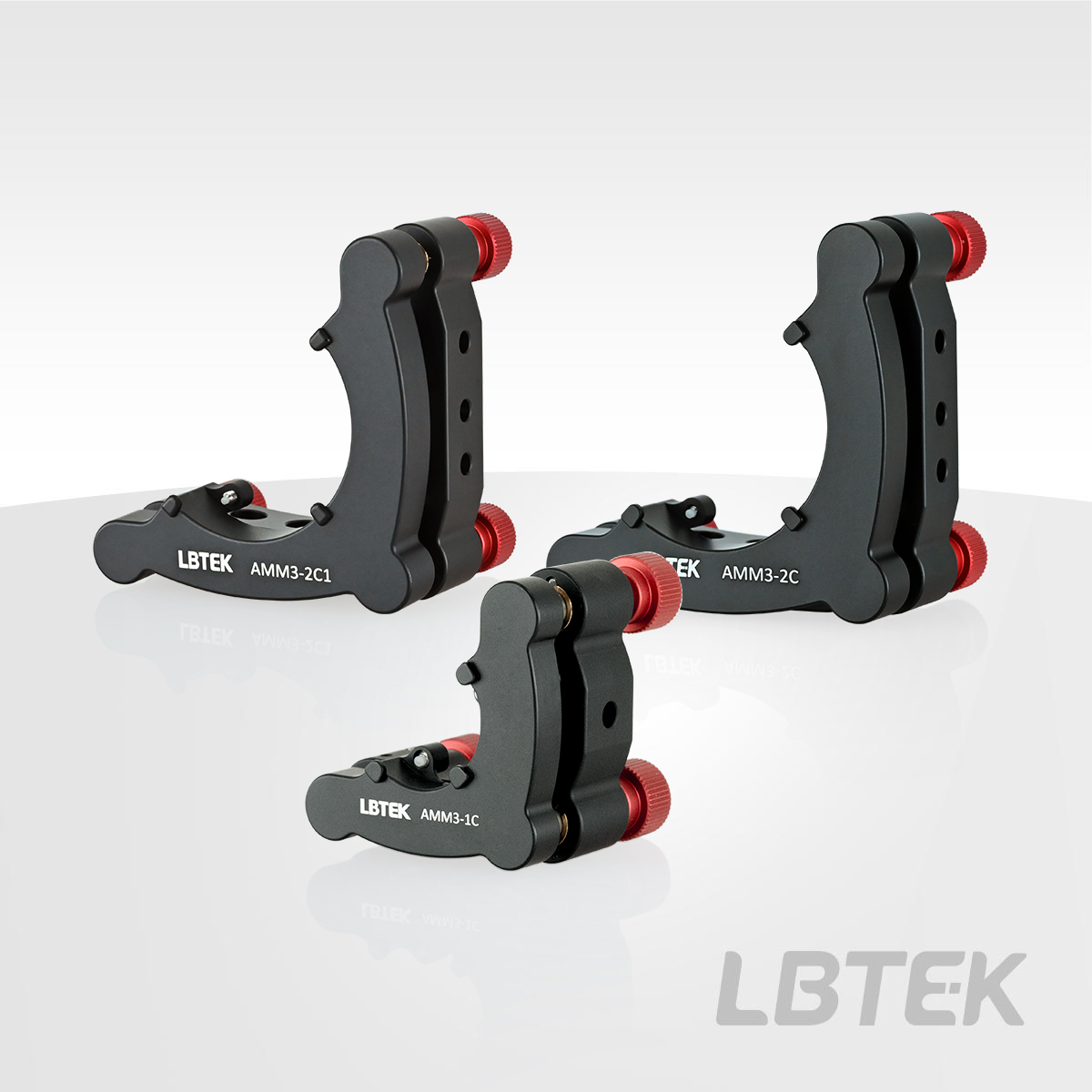

Clear-Edge Optical Mount

For mounting optical components with Ø25.4 mm or Ø50.8 mm diameter
AMM3-1C applicable to optical components with thickness range of 2.5~6.5 mm
AMM3-2C applicable to optical components with thickness range of 8.0~12.2 mm
AMM3-2C1 applicable to optical components with thickness range of 9.0~13.0 mm
Left-handed or right-handed mounting

LBTEK Clear-Edge Optical Mount, designed for optical components with diameters of 25.4 mm and 50.8 mm. The optical components are secured by two rubber-tipped screws on the back of the edge-free optical mount. Each side or bottom of the Clear-Edge Optical Mount features an M4 countersunk mounting hole. Purchasing the LBTEK Clear-Edge Optical Mount 1-inch and 2-inch series includes two M4 socket head cap screws and one each of 1.5 mm and 2.0 mm hex keys.

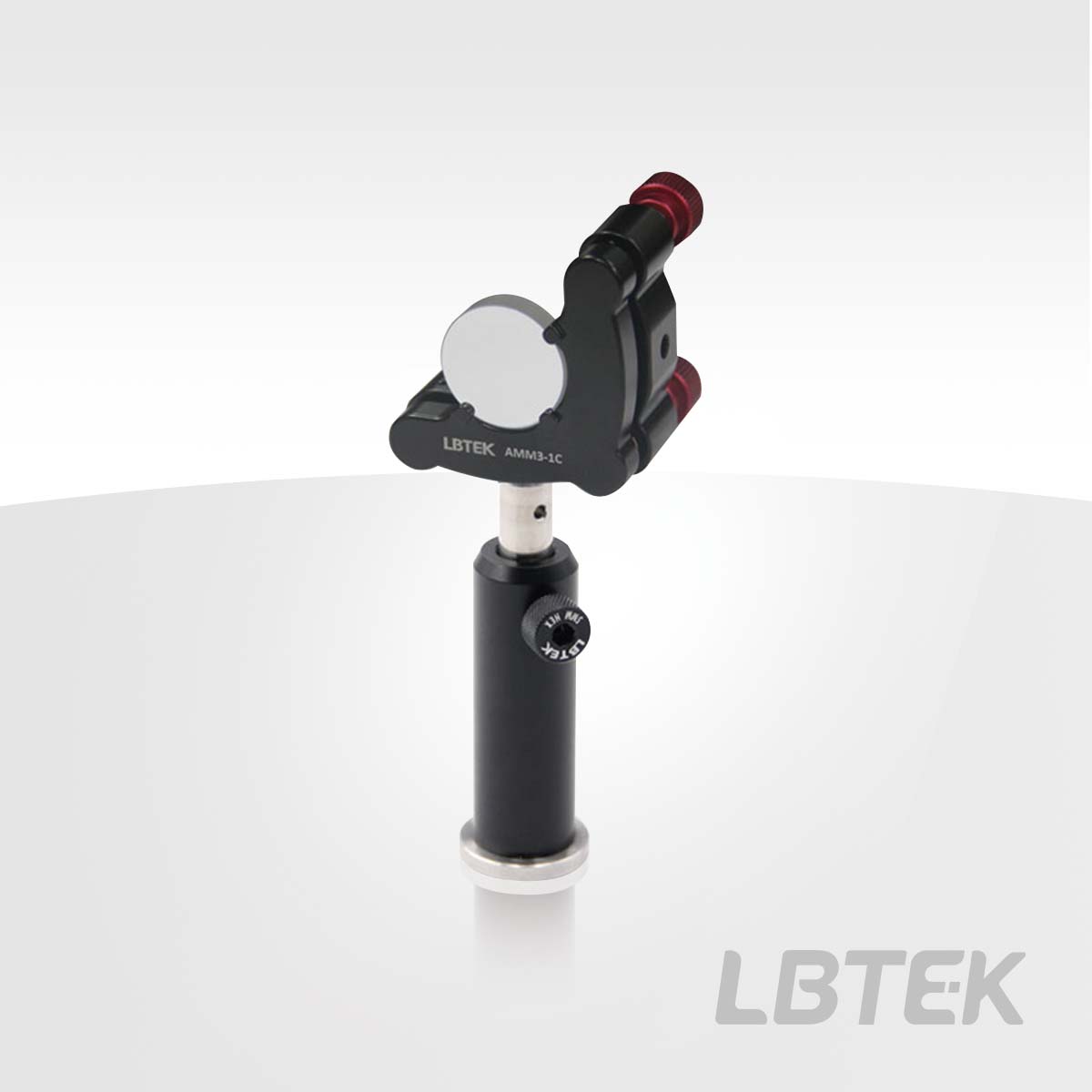

Clear-Edge Optical Mounts are commonly used for Ø25.4 mm optical components.

Product Model	Applicable optical component size	Applicable optical element thickness	Unit Price	Lead Time
AMM3-2C1	Ø50.8 mm	9.0~13.0 mm	$111.91	5 weeks
AMM3-2C	Ø50.8 mm	8.0~12.2 mm	$107.21	6 weeks
AMM3-1C	Ø25.4 mm	2.5~6.5 mm	$101.72	6 weeks

Half-Inch Clear-Edge Optical Mount

For optical components with a diameter of 12.7 mm
Applicable to optical components with a minimum thickness of 3.0mm
Left-handed and right-handed mounting

LBTEK Clear-Edge Optical Mount, side-tightening type, designed for mounting optical components with a diameter of 12.7 mm. The optical component is placed from the rear plate direction into the smooth bore hole of the front plate of the mount, then secured with a side rubber-tipped screw. The mount features one M4 threaded hole on either the side or the bottom. Purchasing the LBTEK Clear-Edge Optical Mount 0.5-inch Series includes a complimentary 2.0 mm hex key.

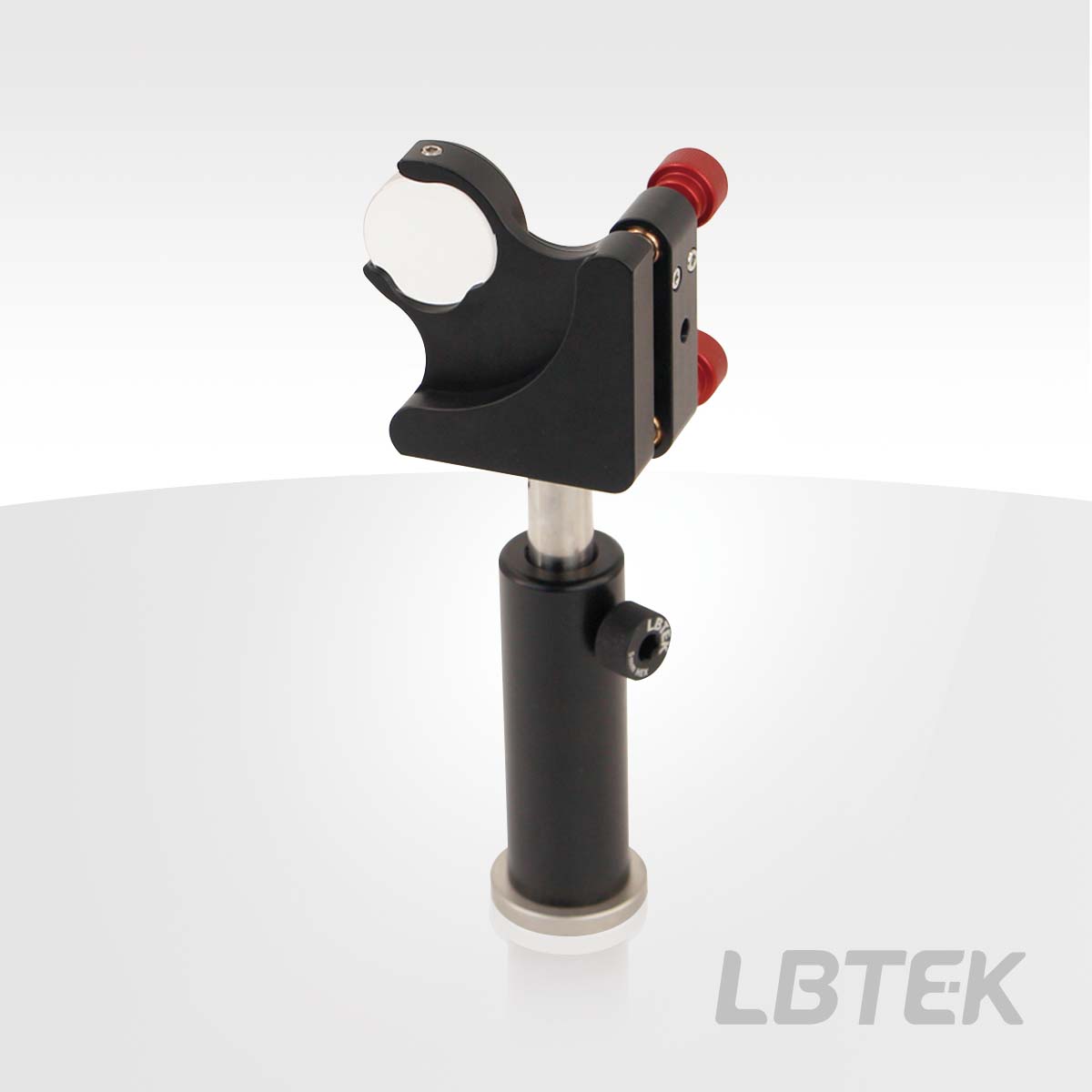

Clear-Edge Optical Mounts are commonly used for Ø12.7 mm optical components.

	Product Model	Applicable optical component size	Minimum applicable thickness for optical components	Unit Price	Compare	Lead Time
	AMM3-05C	Ø12.7 mm	3.0 mm	$65.5		6 weeks

Center-Type Clear-Edge Mounts, Set Screw Type, Surface Centerline Aligning with the Center of the Post's Mounting Hole

Material: 6061-T6 aluminum alloy
Two precision adjusters
Secured with M4 rubber-tipped set screws
Optical component mounting holes featuring an open design
Surface centerline aligning with the center of the post's mounting hole

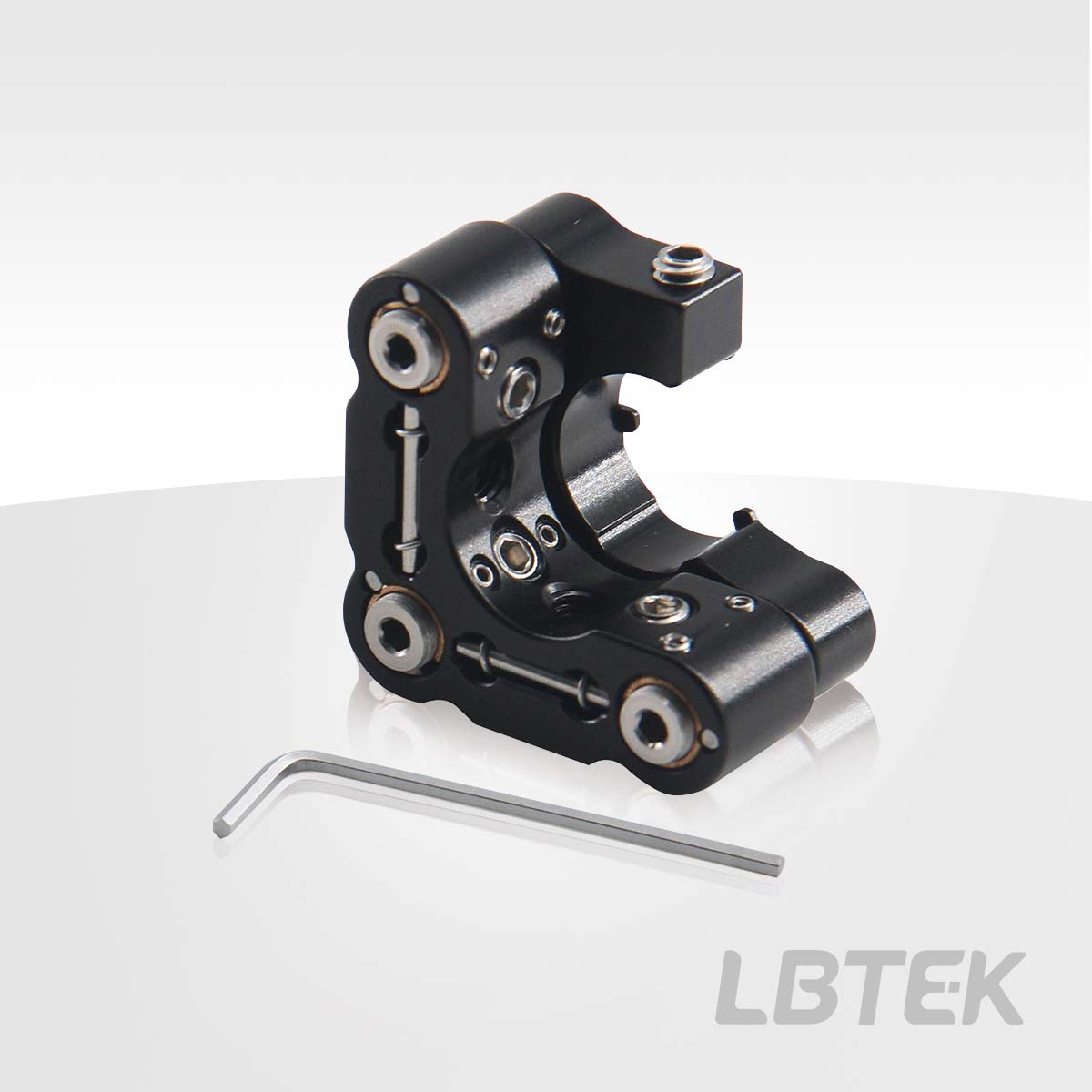

LBTEK AMMC-2C Center-Type Clear-Edge Mount, featuring a smooth bore without threads and a semi-open design, allows the beam to reflect from one mount to another at a small incident angle θ. Optical components are secured using set screws. The mount base is equipped with both M4 countersunk holes and M6 threaded holes for compatibility—M4 countersunk holes connect to optical posts with M4 threaded holes, while M6 threaded holes connect to posts with M6 threaded holes. The centerline of the optical component mounting surface aligns with the center of the post's mounting hole, simplifying the beam alignment process.

The AMMC-2C product is commonly used for mounting optical components such as mirrors.

	Product Model	Applicable optical element diameter	Minimum applicable thickness for optical components	Unit Price	Compare	Lead Time
	AMMC-2C	Ø50.8 mm	2 mm	$89.82		6 weeks

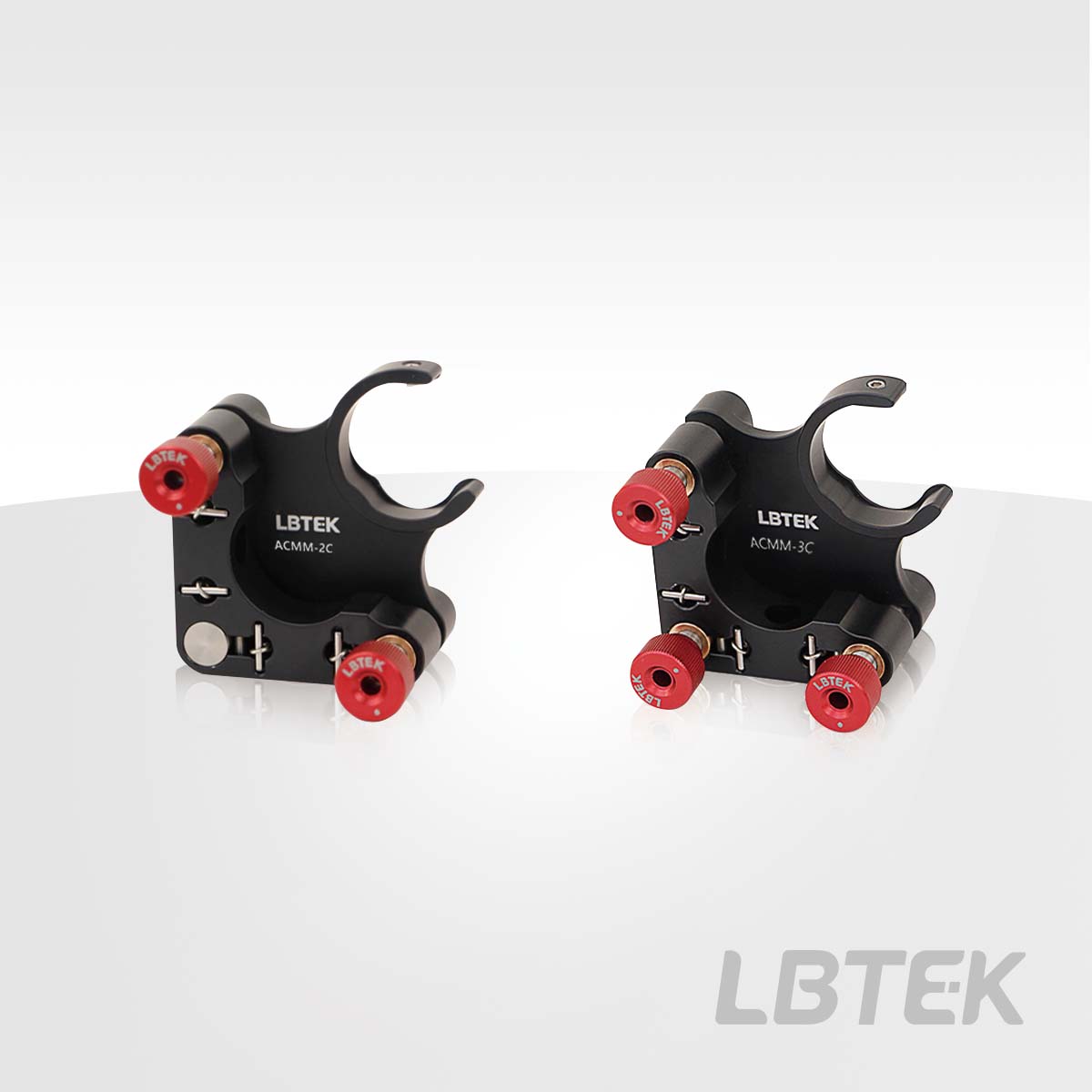

Clear-Edge Corner Optical Mounts

Optical components could be placed in narrow positions.
Gimbal movement with kinematic stability
For Ø25.4 mm optical components

The LBTEK Clear-Edge Corner Optical Mount can tilt optical components by adjusting two adjacent actuators without translating their surfaces. By positioning the center of the optical component at the corner where the actuator axes intersect and making equal adjustments to two adjacent actuators, the mount enables movement in any direction. This series of mounts allows for quick replacement of adjusters to accommodate various types of adjustment screws, micrometers, and motorized actuators. Convenient side clearance mounting holes compatible with M4 screws provide faster, more precise, and more secure installation. Each mount features one M4 threaded hole on either the side or the bottom. The purchase of an LBTEK Clear-Edge Corner Optical Mount includes one 2.0 mm hex key.

Clear-Edge Corner Optical Mounts Are Commonly Used for Ø25.4 mm Optical Components.

	Product Model	Applicable optical element diameter	Adjuster specifications/quantity	Unit Price	Compare	Lead Time
	ACMM-3C	Ø25.4 mm	M6×0.25/3 pcs	$111		7 weeks
	ACMM-2C	Ø25.4 mm	M6×0.25/2 pcs	$97.66		7 weeks
