- Angle range: ±4°
- Knobless adjuster, reducing space occupation
- Two M4 tapped holes on the back plate for vertical and horizontal post mounting
- For 1-inch round or rectangular optical components
- Angle range: ±4°
- Dimensions: 25.4 mm × 33.2 mm × 27.9 mm
- Knobless adjuster, reducing space occupation
- Two M4 tapped holes on the back plate for vertical and horizontal post mounting
- Front plate features a rectangular slot for mounting rectangular optical components with height of 25.4 mm and thickness ≥3 mm

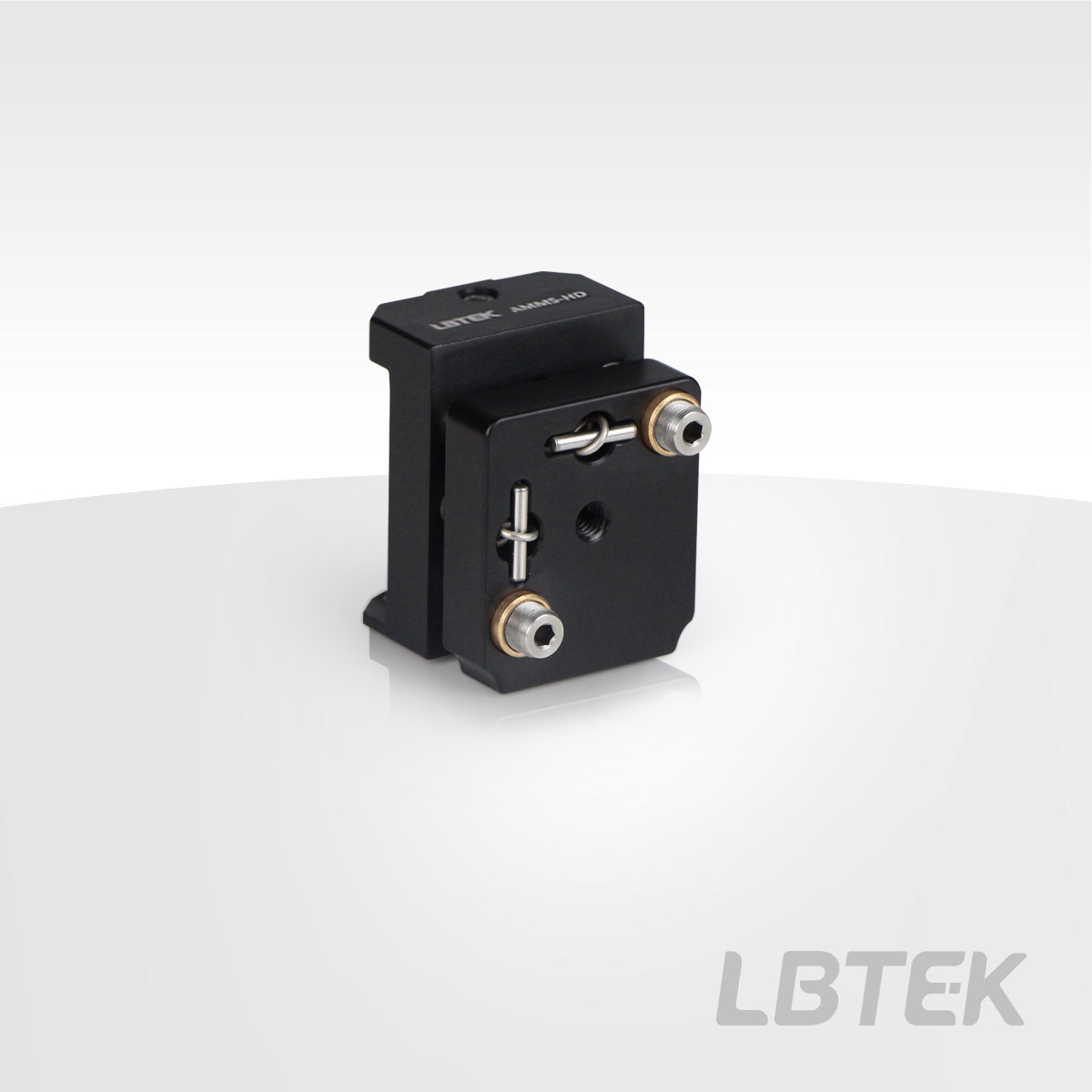

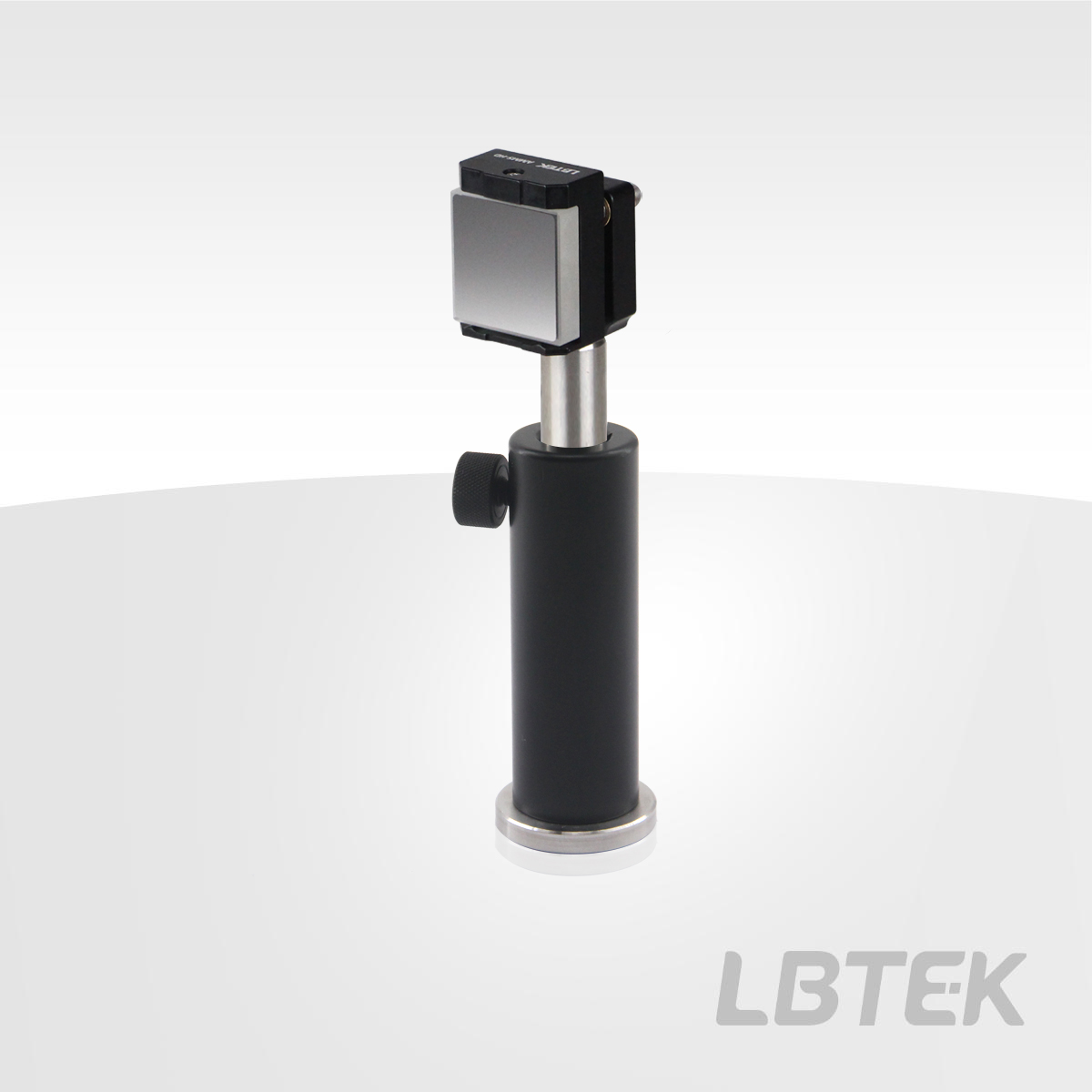

The LBTEK Rectangular Optical Mounts is specially designed for 1-inch-high rectangular optical components in confined spaces. The rectangular optic can be mounted in the slot and secured with a rubber-tipped screw. The mount features M4 tapped mounting holes on the bottom and sides, allowing connection and support using 12.7 mm stainless steel optical posts or other connecting components.
The AMMS-HD Rectangular Optical Mount is used for rectangular optical components with a height of 25.4 mm.
Product Model | Rear panel mounting screw holes | Applicable optical component size | Minimum applicable thickness for optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| AMMS-HD | M4 | 25.4 mm | 3 mm | $53.87 | today | Add Cart |
- Angle range: ±4°
- Dimensions: 25 mm × 27.5 mm × 21 mm
- Knobless adjuster, reducing space occupation
- Two M4 tapped holes on the back plate for vertical and horizontal post mounting
- Front plate with M6 tapped hole, compatible with our FMH series fixed mounts for 1-inch optical components

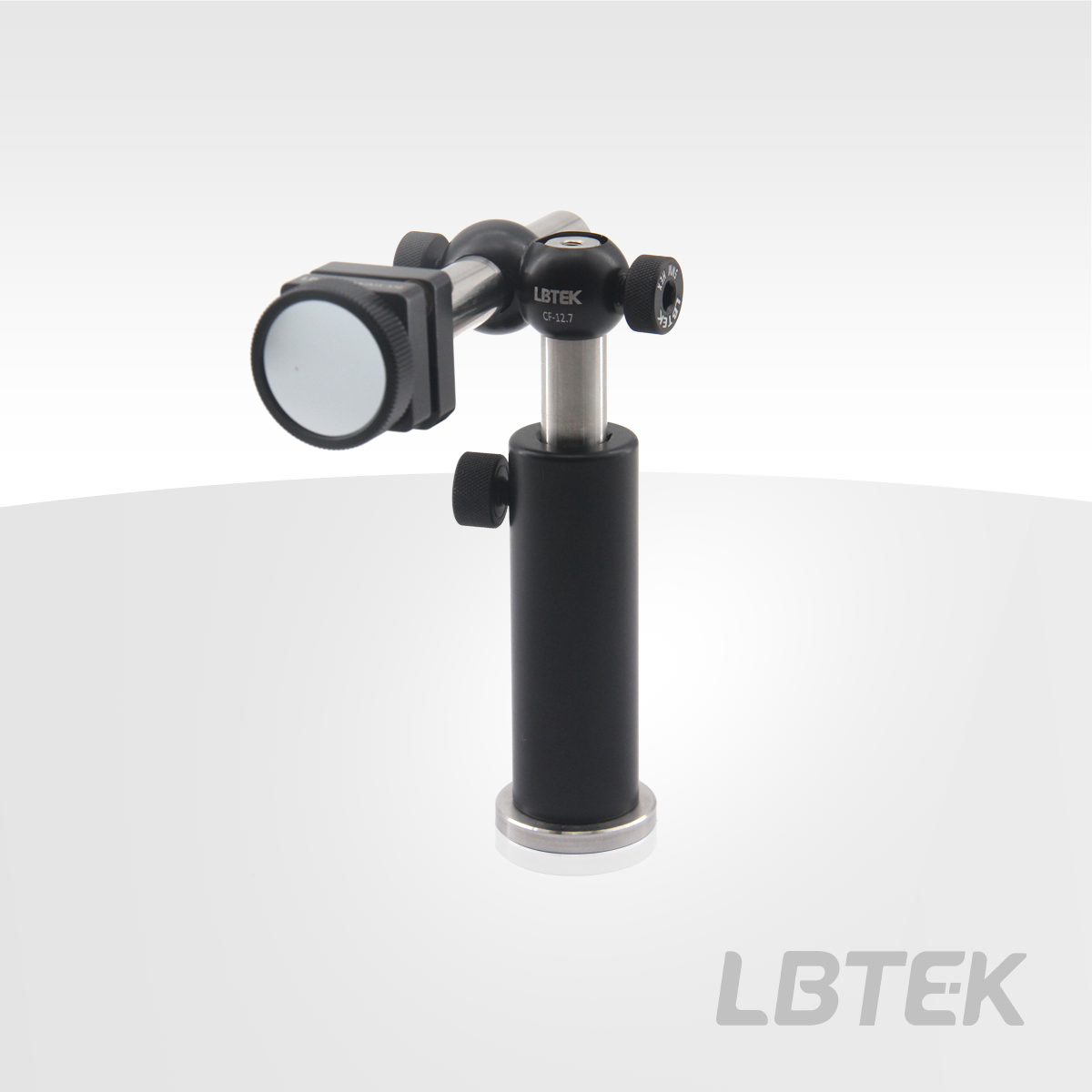

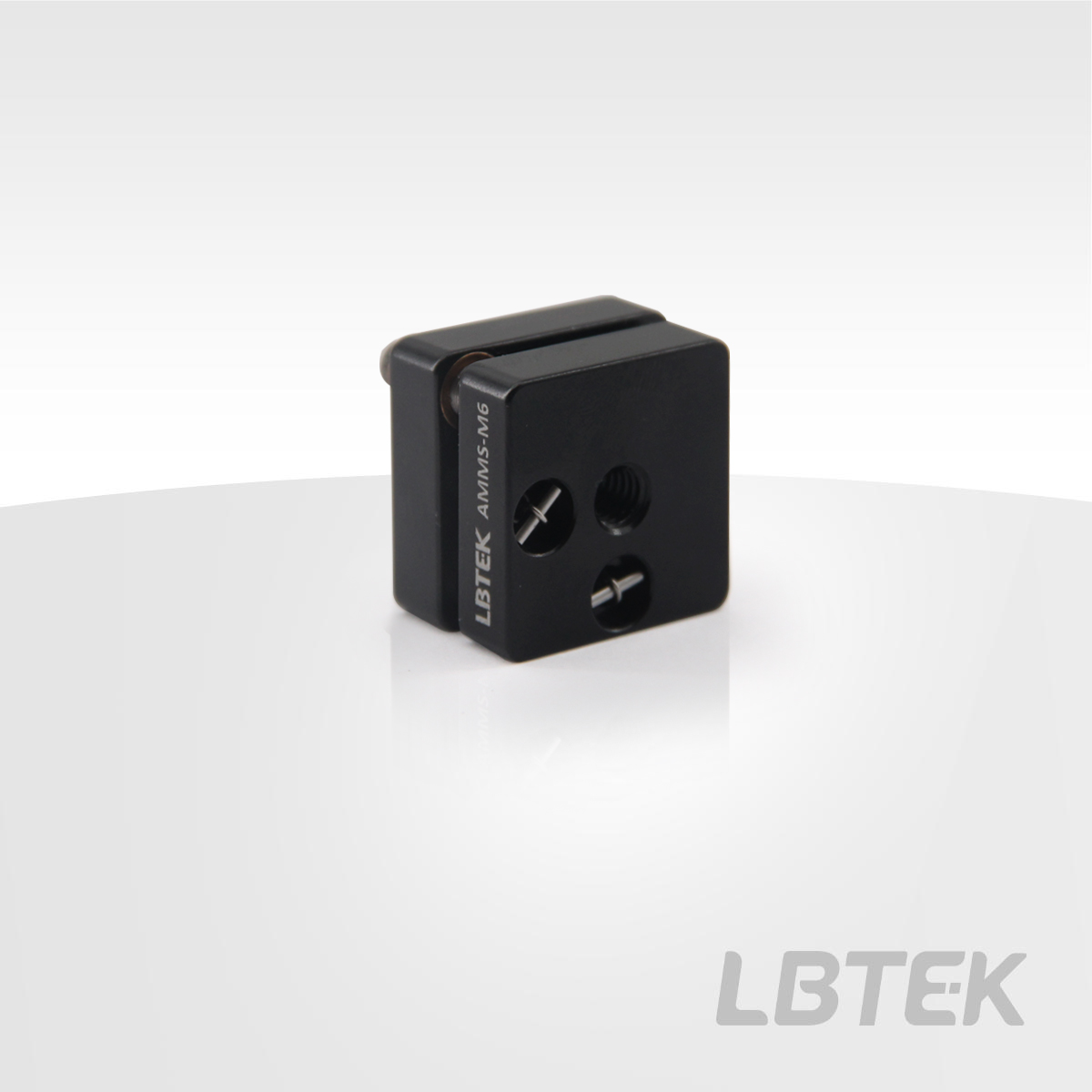

The LBTEK Compact Optical Mount is designed for confined spaces and can be installed with FMH series products to hold 1-inch optical components. The mount features M4 tapped mounting holes on the bottom and sides, allowing connection and support via 12.7 mm stainless steel optical posts or other connecting accessories.

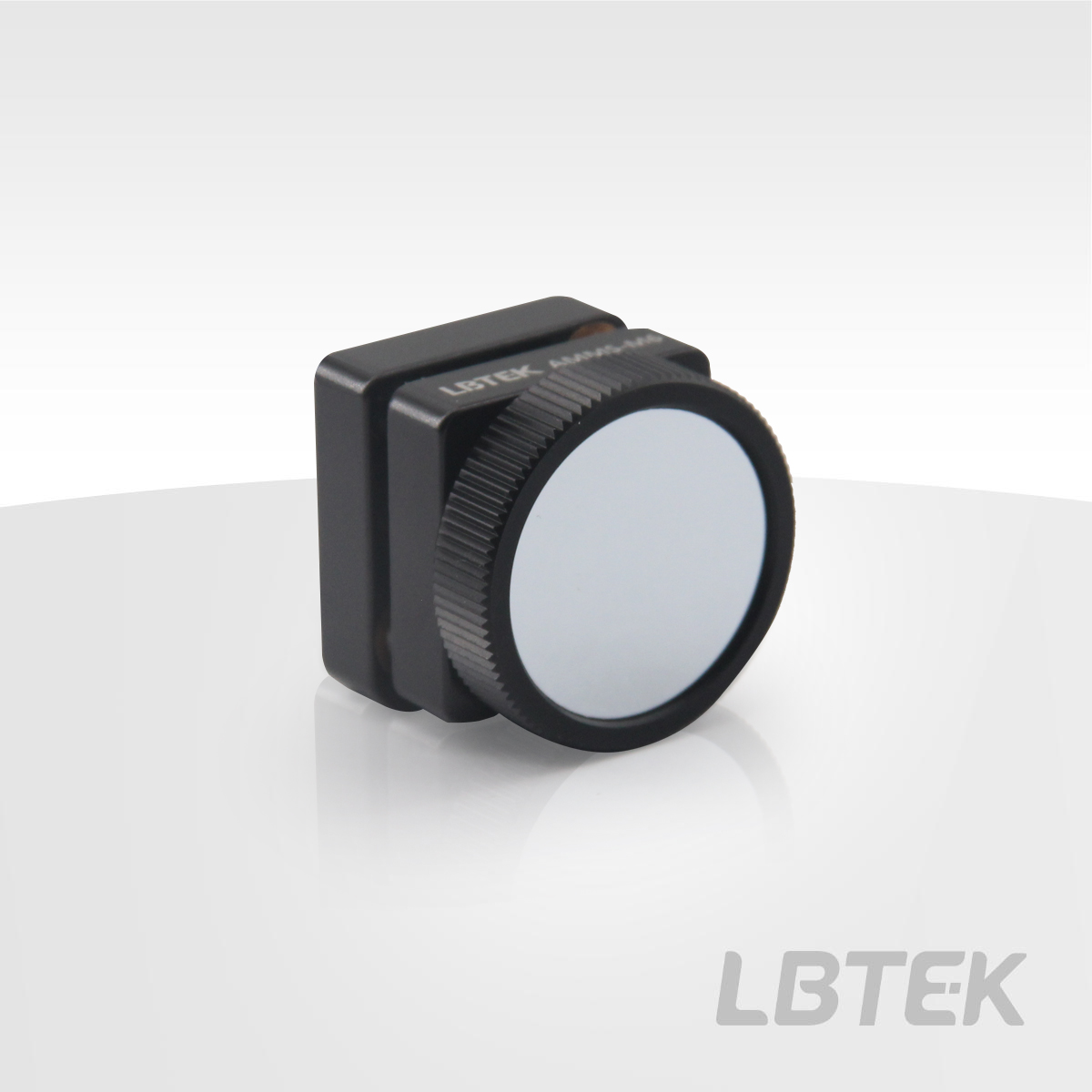

The AMMS-M6 Compact Optical Mount is for FMH series mirror holders and 25.4 mm optical components.
Product Model | Rear panel mounting screw holes | Optical axis center height | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AMMS-M6 | M4 | 15 mm | $39.75 | today | Add Cart |
- Optical element mounting method: Threaded gland type, nylon set screw type
- Installable optical element diameter: 25.4 mm, 12.7mm
- Two thickness options available

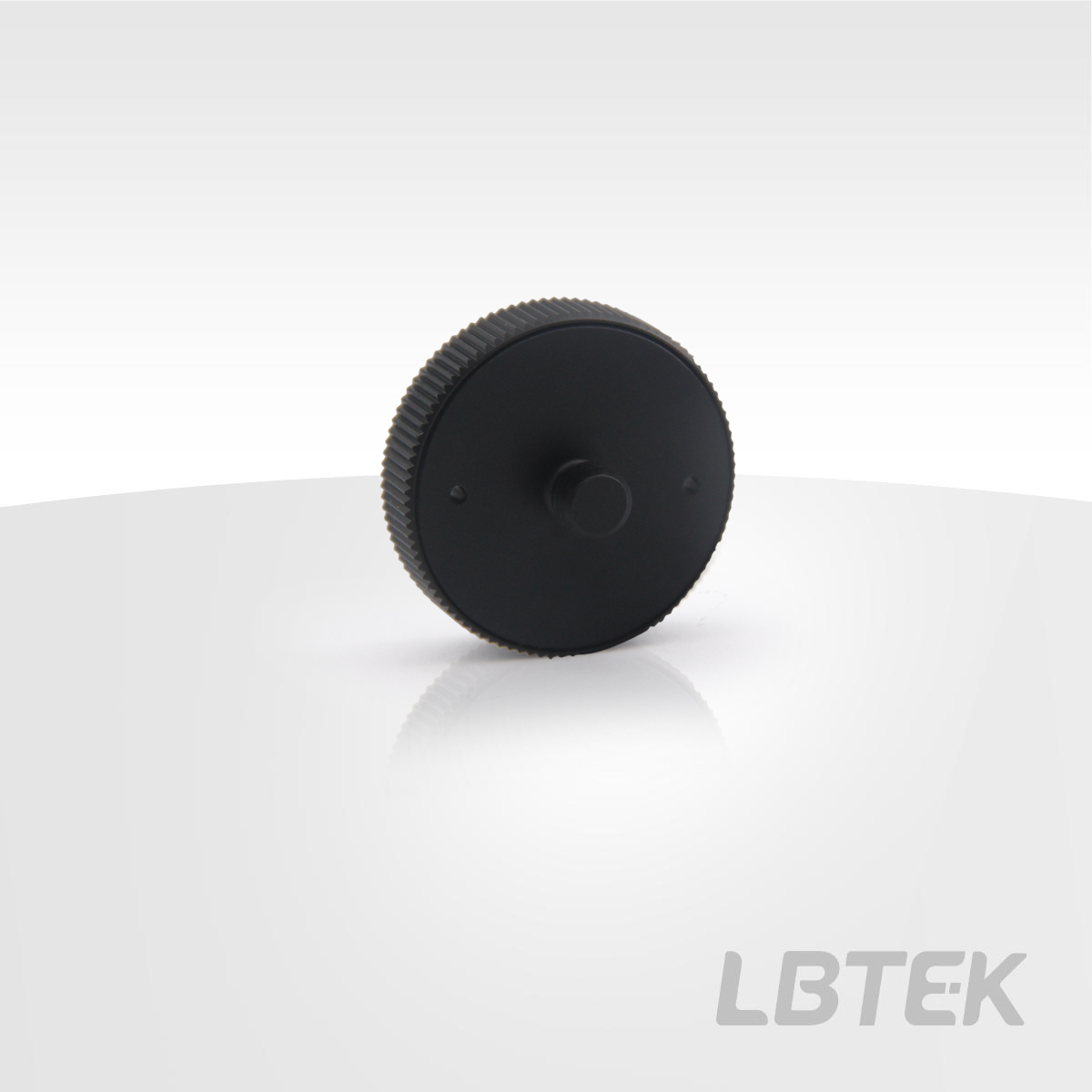

The FMH25/FMH25T/FMH12 fixed mount can be installed on the front panel of the AMMS-A6 compact mount for use. The mount features an M6 external stud that can be screwed into the front panel of the AMMS-A6 mount. The knurled cap and nylon set screw are used to secure the optical component within the mount. The FMH25/FMH12 can accommodate mirrors with thicknesses ranging from 2.5 mm (0.10 inches) to 6.1 mm (0.24 inches), while the FMH25T can accommodate mirrors with thicknesses from 6.0 mm (0.23 inches) to 10.0 mm (0.39 inches).
Product Model | Applicable optical element diameter | Applicable optical element thickness | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| FMH25T | 25.4 mm | 6.0~10.0 mm | $15.82 | today | Add Cart | ||
| FMH25 | 25.4 mm | 2.5~6.1 mm | $14.25 | today | Add Cart | ||
| FMH12 New | 12.7 mm | 2.5~6.1 mm | $14.25 | 6 weeks | Add Cart |
