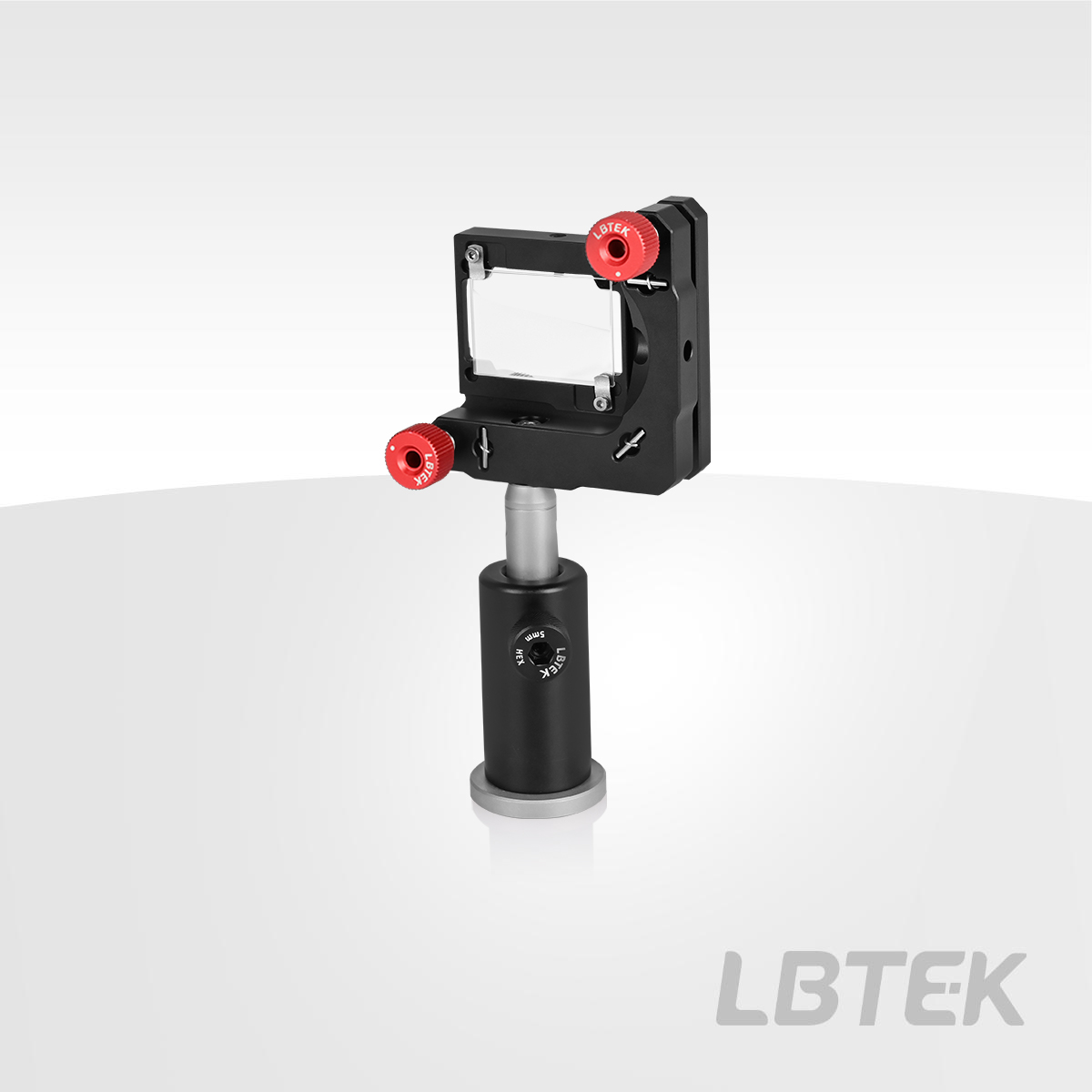

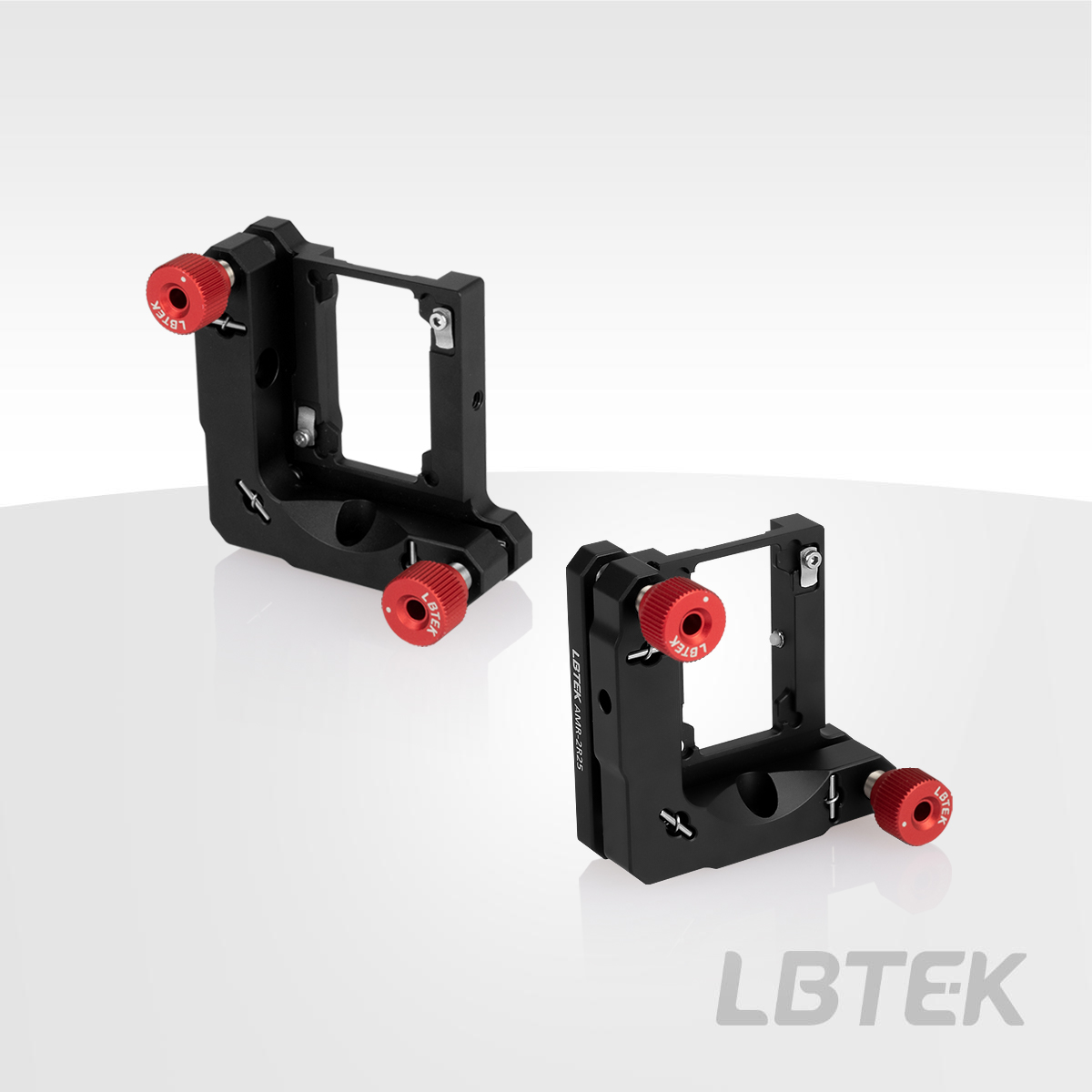

The front plate of the AMR-2R25 optical mount features a dual-compatibility structural design, accommodating optical elements of different sizes and thicknesses. For 25 mm × 36 mm optical elements with a thickness of 1 mm, the back of the front plate is specially designed with a mounting frame incorporating spring clips. Adjustment can be performed using a ball-head screwdriver or hex key, ensuring a precise and controllable installation process. This effectively prevents damage to thin optical components (such as dichroic mirrors, non-polarizing/polarizing beam splitters) caused by mechanical stress.

For rectangular optical elements measuring 25 mm × 50 mm with a thickness of no less than 3 mm (such as diffraction gratings), secure fixation is achieved via the M4 nylon set screws located on the front side of the front plate. The nylon material further reduces the risk of scratching the optical surface, balancing clamping force with component safety.

This design balances installation flexibility, operational convenience, and component protection capability, making it suitable for various precision optical experiments and system integration scenarios.

The LBTEK Rectangular Precision Optical Mount utilizes adjustment screws to press the flexure clamp against the optical component, securely holding optical components. It is commonly used for mounting rectangular optical components with dimensions of 25.4 mm × 25.4 mm, and can accommodate optical components with a minimum thickness of 3.0 mm. The mount offers an angular adjustment range of ±4° and can be installed in either left-handed or right-handed. The S-type precision optical mount adjusts the angle through three M6×0.25 precision threaded pairs (with locking function). The mount is equipped with three M6×0.25-22KLB precision threaded pairs, where the threaded bushing features a flexure clamp mechanism. The locking screw can be secured using a 2.0 mm hex key. Purchasing the LBTEK Rectangular Precision Optical Mount includes one 2.0 mm hex key and two M4 socket head cap screw.

LBTEK Precision Rectangular Optical Mount, which uses adjustment screws to press the flexure clamp against the optical component. The mount base features a Ø4.2 through-hole for right-hand installation, designed to connect with optical posts. The minimum thickness of available optical components is 3.0 mm. Equipped with 2 precision adjustment thread pairs (M5X025-14). Purchase of LBTEK Precision Optical Mount 0.5-inch Series includes 1 free 2.0 mm hex key and 1 M4 thin-head hex socket screw.

LBTEK 3D Rectangular Optical Mount, designed for mounting and adjusting rectangular optical components with a height not exceeding 30 mm and thickness no less than 3 mm. It provides ±4° angular adjustment range across three axes (pitch, yaw, and rotation), featuring a threaded bushing with a flexure clamp mechanism. Purchase includes 1 free 2.0 mm hex key, 1 free 3 mm hex key, and 2 M4 socket head cap screws.
