- Thicker backplate for enhanced stability
- Adjustable angle range ±4°
- Adjusting screws to press the flexure clamp against the optic or using set screws to secure the optic
- 2D and 3D adjustment options available
- Applicable optical component size: 25.4 mm × 25.4 mm
- Minimum thickness for mounting optical components: 3.0 mm
- Adjustable angle range ±4°, 0.4° per rotation
- Adjusting screws to press the flexure clamp against the optical component
- Left-handed or right-handed available
- Lockable adjuster

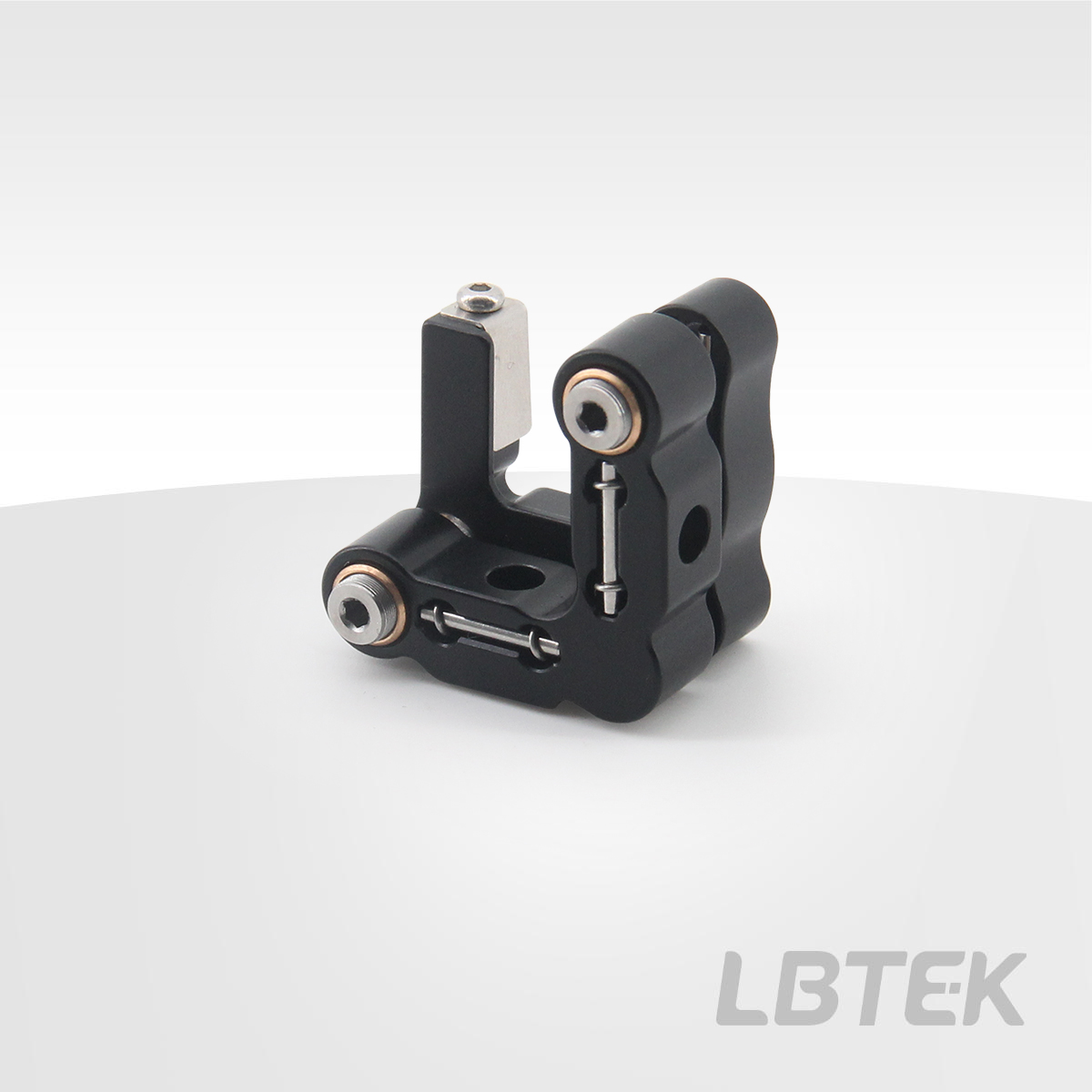

The LBTEK Rectangular Precision Optical Mount utilizes adjustment screws to press the flexure clamp against the optical component, securely holding optical components. It is commonly used for mounting rectangular optical components with dimensions of 25.4 mm × 25.4 mm, and can accommodate optical components with a minimum thickness of 3.0 mm. The mount offers an angular adjustment range of ±4° and can be installed in either left-handed or right-handed. The S-type precision optical mount adjusts the angle through three M6×0.25 precision threaded pairs (with locking function). The mount is equipped with three M6×0.25-22KLB precision threaded pairs, where the threaded bushing features a flexure clamp mechanism. The locking screw can be secured using a 2.0 mm hex key. Purchasing the LBTEK Rectangular Precision Optical Mount includes one 2.0 mm hex key and two M4 socket head cap screw.
Product Model | Applicable optical component size | Minimum applicable thickness for optical components | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AMM3-1SR | 25.4 mm×25.4 mm | 3.0 mm | $89.17 | 6 weeks | |||
| AMM3-1SL | 25.4 mm×25.4 mm | 3.0 mm | $89.17 | 6 weeks |
- Applicable optical component height: 12.7 mm
- Minimum thickness for mounting optical components: 3.0 mm
- Adjustable angle range ±4°, 0.72° per rotation
- Including 2 thin-head hex socket screws

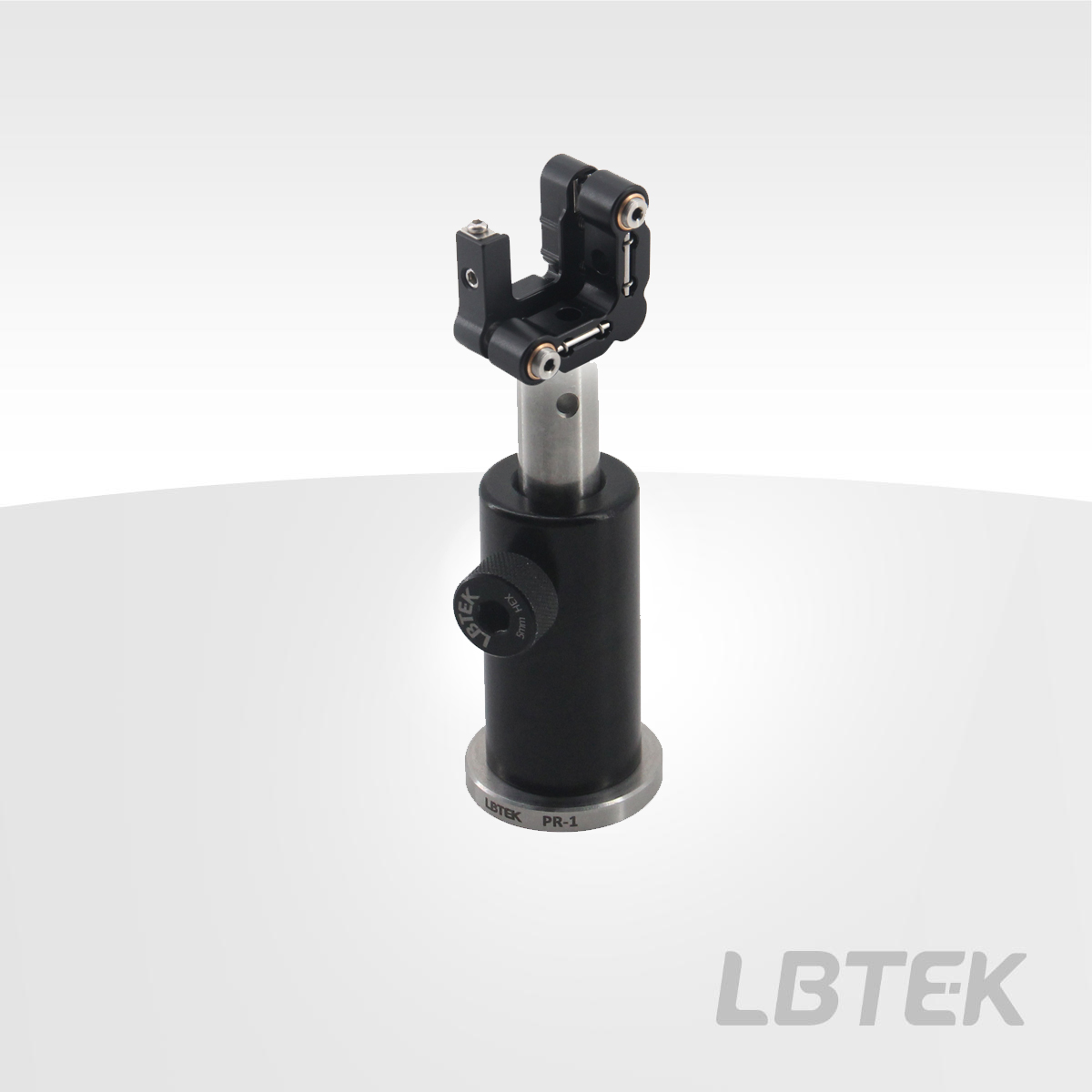

LBTEK Precision Rectangular Optical Mount, which uses adjustment screws to press the flexure clamp against the optical component. The mount base features a Ø4.2 through-hole for right-hand installation, designed to connect with optical posts. The minimum thickness of available optical components is 3.0 mm. Equipped with 2 precision adjustment thread pairs (M5X025-14). Purchase of LBTEK Precision Optical Mount 0.5-inch Series includes 1 free 2.0 mm hex key and 1 M4 thin-head hex socket screw.
Product Model | Applicable optical component size | Minimum optical element thickness | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AMM-05SR-SP | 12.7 mm×12.7 mm | 3.0 mm | $70.47 | 6 weeks |
- Applicable optical component height range: 23~30 mm
- Minimum thickness for mounting optical components: 3.0 mm
- Adjustable angle range ±4°, 0.38° per rotation
- Adjuster can be locked
- Optical components secured with M4 rubber-tipped screws

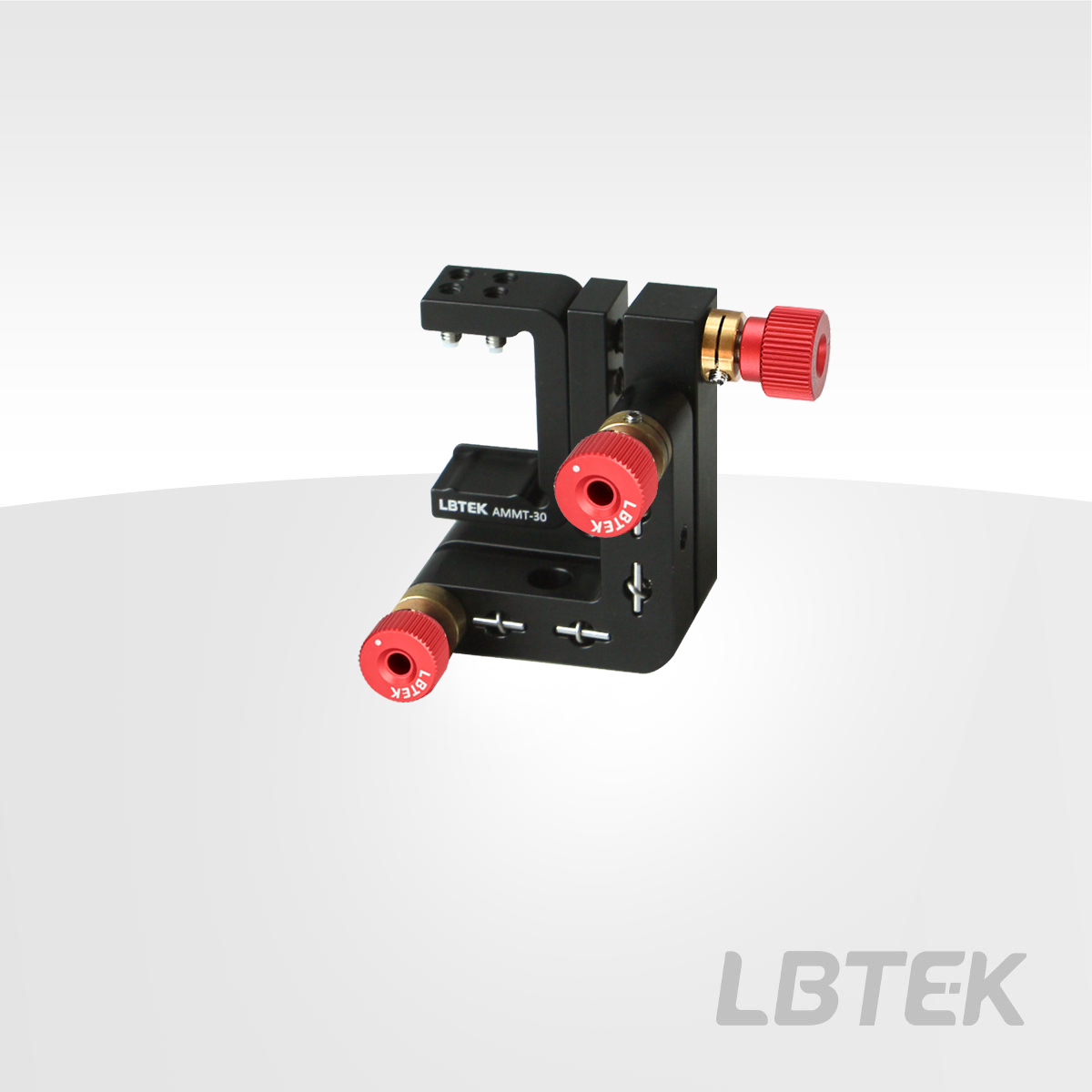

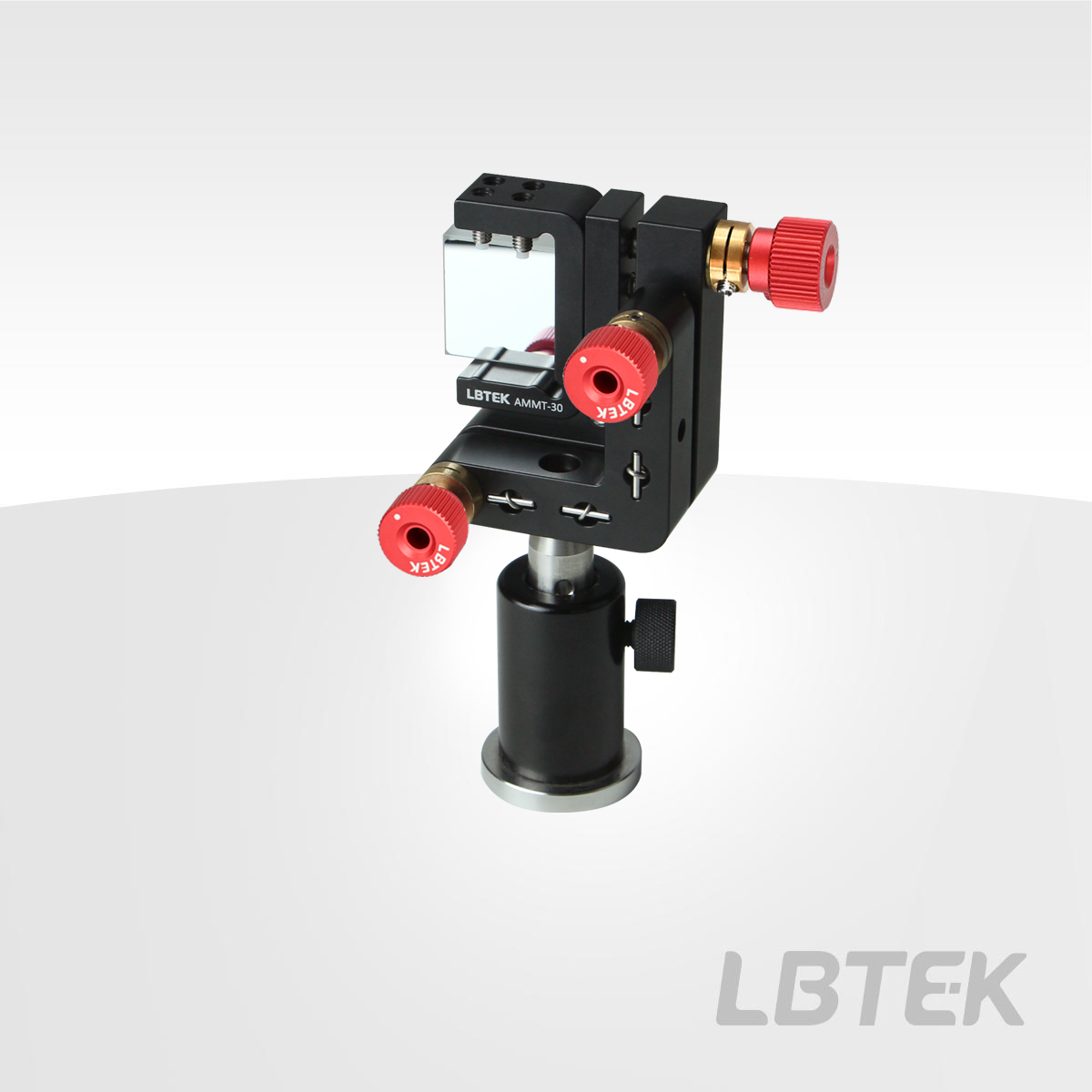

LBTEK 3D Rectangular Optical Mount, designed for mounting and adjusting rectangular optical components with a height not exceeding 30 mm and thickness no less than 3 mm. It provides ±4° angular adjustment range across three axes (pitch, yaw, and rotation), featuring a threaded bushing with a flexure clamp mechanism. Purchase includes 1 free 2.0 mm hex key, 1 free 3 mm hex key, and 2 M4 socket head cap screws.
Product Model | Applicable height range for optical components | Minimum optical element thickness | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|
| AMMT-30 | 23~30 mm | 3.0 mm | $163.16 | 7 weeks |
