- All filter element diameters are 25.4 mm
- The packaging box kit is stored independently with compartments for easy carrying
- The turret-style mounting kit uses a stress-free snap ring for easy installation
- Box dimensions: 230×180×50 mm
- Slot diameter: 30.5 mm
- Absorptive and reflective kits available

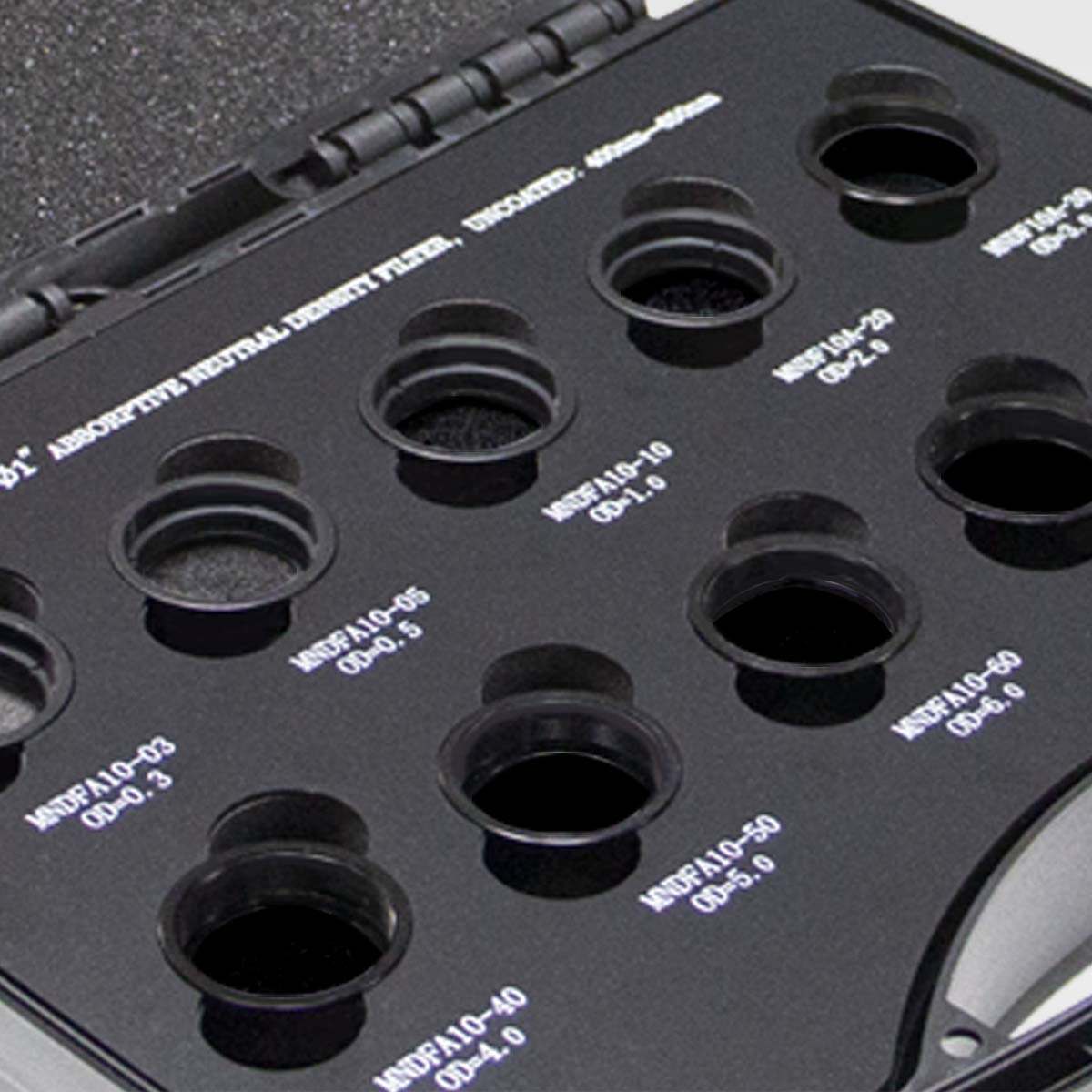

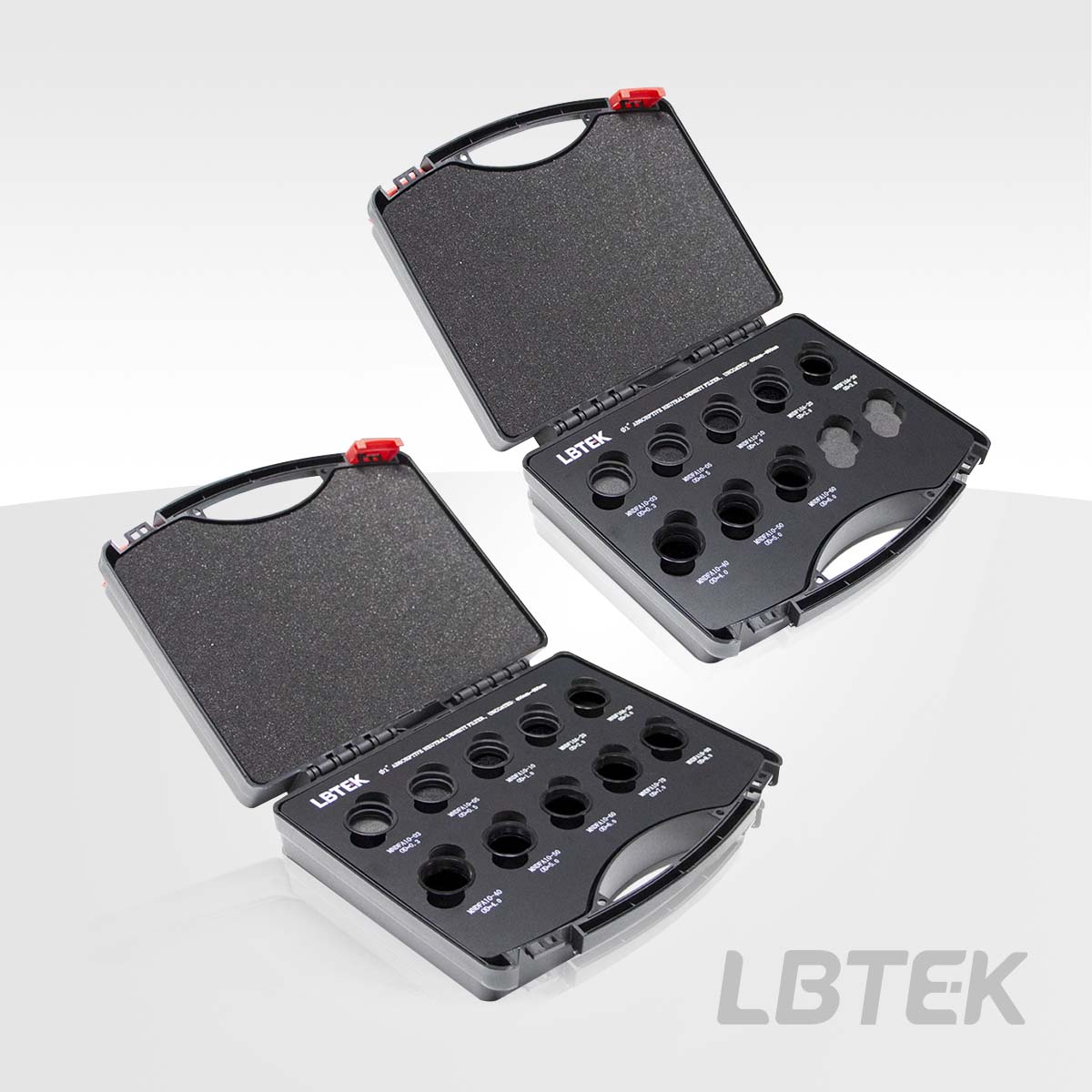

The LBTEK filter kit includes commonly used OD (0.1-8.0) filters, currently offering both absorption-type and reflection-type filter kits as options. LBTEK also provides custom configuration services, such as the number of filters, size, OD, etc. For specific customization requirements, please contact LBTEK technical support.
Product Model | Type | OD | Quantity | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| NDFR10LK-8-C | Reflective | 0.2-4.0 | 8PCS | $512.24 | today | Add Cart | ||
| NDFA10LK-8-A | Absorptive | 0.3-5.0 | 8PCS | $512.24 | today | Add Cart | ||
| NDFA10LK-8-B | Absorptive | 0.3-5.0 | 8PCS | $512.24 | today | Add Cart | ||
| NDFA10LK-7-C | Absorptive | 0.3-4.0 | 7PCS | $447.79 | Contact | Add Cart | ||
| NDFR10LK-8 | Reflective | 0.2-4.0 | 8PCS | $484.92 | today | Add Cart | ||
| NDFA10LK-10 | Absorptive | 0.3-8.0 | 10PCS | $424.12 | today | Add Cart | ||
| NDFA10LK-10-NIR New | Absorption type | 0.1-6.0 | 10 PCS | $451.06 | 4 weeks | Add Cart |
- Box size: 230×180×50 mm
- Slot diameter: 25.4 mm
- Spectral FWHM (Full Width at Half Maximum): 25±3 nm or 50±5 nm

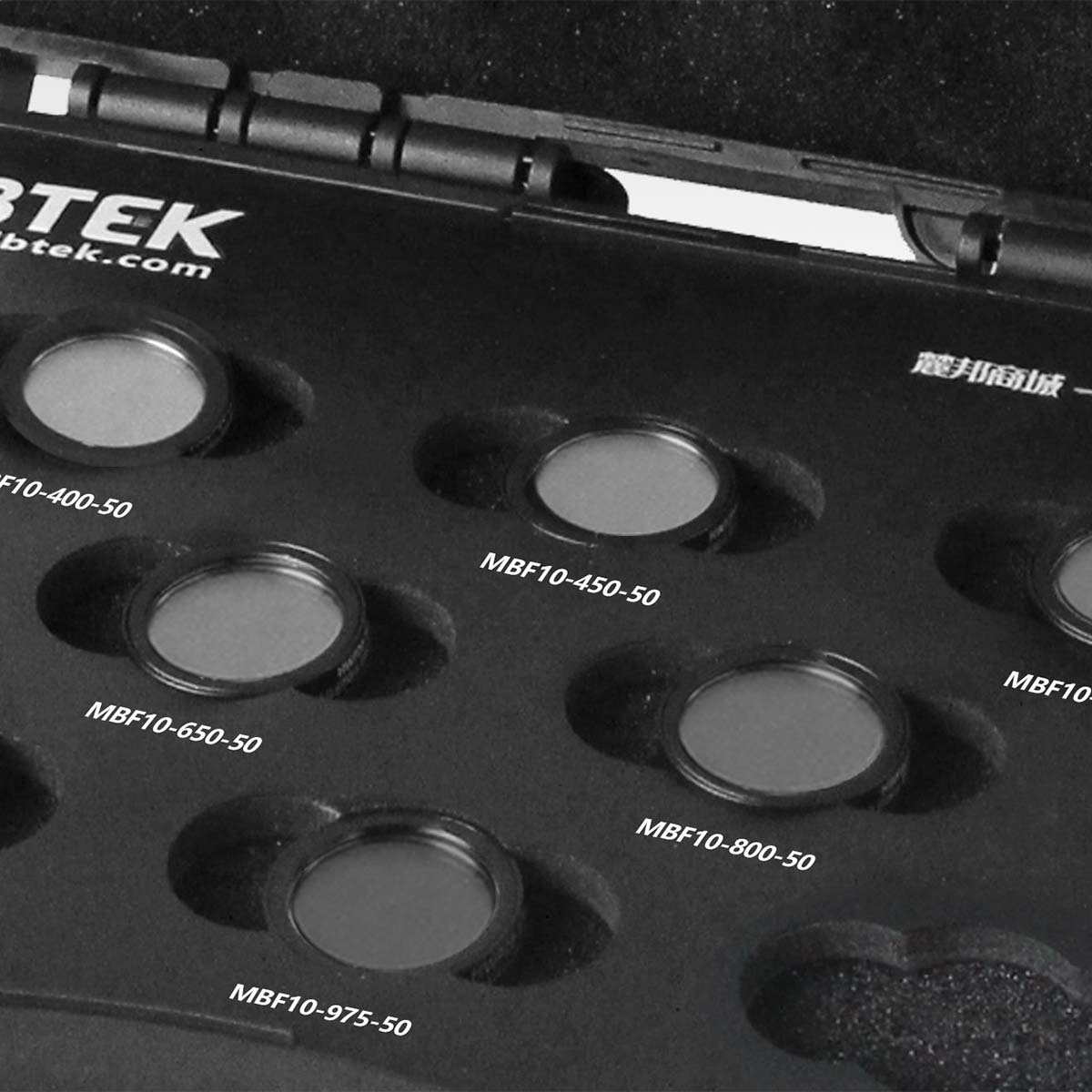

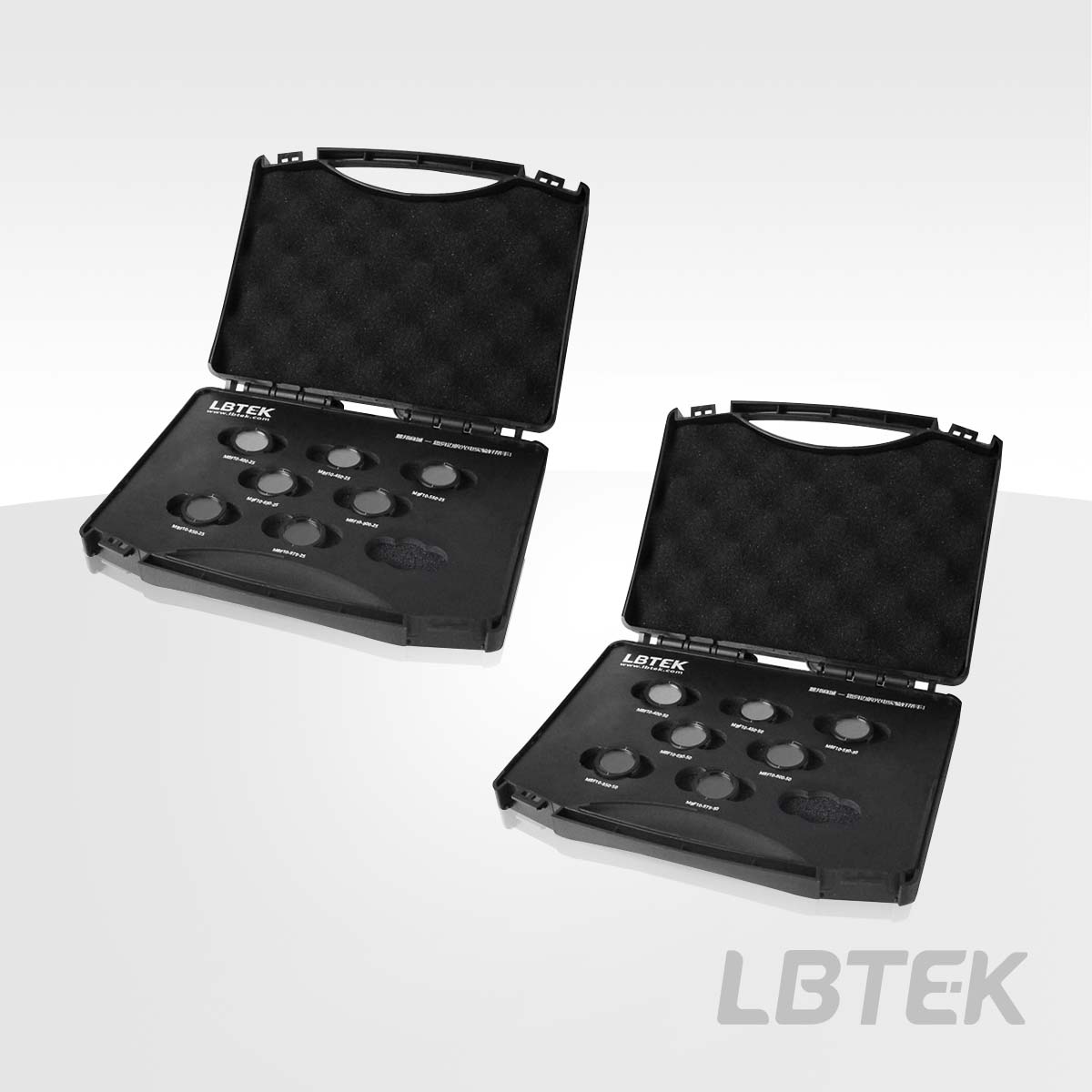

The LBTEK Bandpass Filter Kits includes filters with different wavelengths and FWHMs. Currently, filter kits with spectral FWHM of 25±3 nm and 50±5 nm are available. LBTEK also offers customizable filter combinations, such as filter quantity and size. For specific customization requirements, please contact LBTEK Technical Support.
Bandpass filters with model numbers
Product Model | Diameter | FWHM | Quantity | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| MBF10-BOX-50-7 | 25.4 mm | 50±3 nm | 7PCS | $1,232.63 | Contact | Add Cart | ||
| MBF10-BOX-25-7 | 25.4 mm | 25±3 nm | 7PCS | $1,232.63 | today | Add Cart |
- Box size: 230×180×50 mm
- Slot diameter: 25.4 mm
- Visible light or infrared light optional

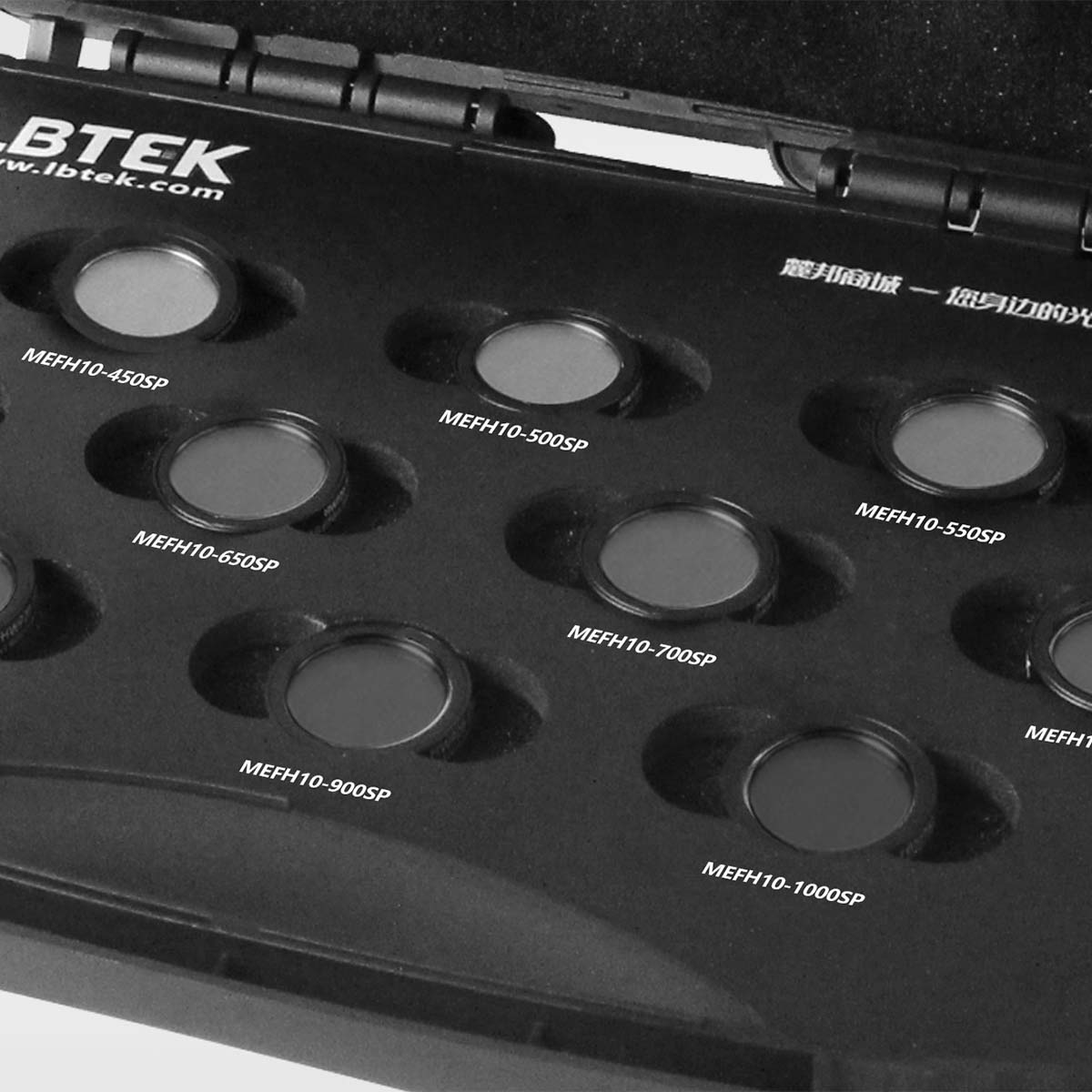

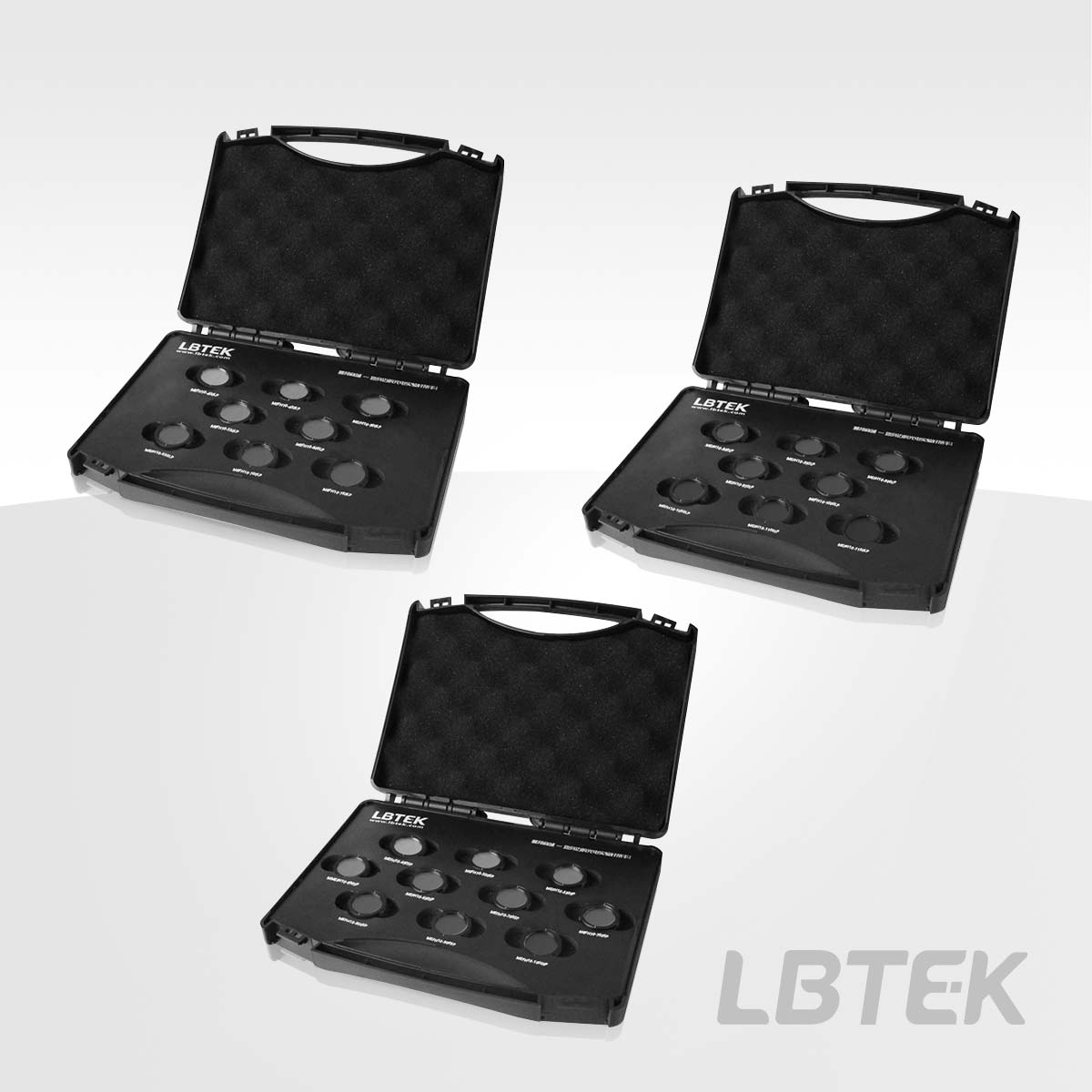

The LBTEK Quality Edgepass Filter Kits includes 10 or 8 mounted shortpass or longpass filters. Currently, we offer optional filter kits for visible or infrared light. LBTEK also offers customizable filter combinations, such as filter quantity and size. For specific customization requirements, please contact LBTEK Technical Support.
Edgepass filters with model numbers
Product Model | Diameter | Quantity | Type | Start (Stop) Wavelength | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|---|
| MEFH10-BOXSP-10 | 25.4 mm | 10PCS | Short-pass filter | 450-1000 nm | $1,130.00 | today | Add Cart | ||
| MEFH10-BOXLLP-8 | 25.4 mm | 8PCS | Long-pass filter | 800-1150 nm | $907.34 | Contact | Add Cart | ||
| MEFH10-BOXSLP-8 | 25.4 mm | 8PCS | Long-pass filter | 400-750 nm | $907.34 | today | Add Cart |
- Number of sets: 6 PCS
- OD value: 0.3~6.0
- Absorption type and reflection type optional
LBTEK Rotary Filter Wheel Kits include commonly used OD (0.3-6.0) filters, currently offering both absorption and reflection filter kits as options. LBTEK also provides custom configuration services, such as the number of filters, size, OD, etc. For specific customization requirements, please contact LBTEK technical support.
The filter wheel kit is compatible with 30mm coaxial systems.
Product Model | Type | OD | Quantity | Unit Price | Compare | Lead Time | ||
|---|---|---|---|---|---|---|---|---|
| NDFAFWM6C-1060 New | Absorption type | 1.0-6.0 | 6 PCS | $305.00 | today | Add Cart | ||
| NDFAFWM6C-1060-A New | Absorption type | 1.0-6.0 | 6 PCS | $434.00 | today | Add Cart | ||
| NDFAFWM6C-1060-B New | Absorption type | 1.0-6.0 | 6 PCS | $434.00 | today | Add Cart | ||
| NDFAFWM6C-0340-C New | Absorption type | 0.3-4.0 | 6 PCS | $437.00 | 5 weeks | Add Cart | ||
| NDFAFWM6C-1060-NIR New | Absorption type | 1.0-6.0 | 6 PCS | $361.00 | Contact | Add Cart | ||
| NDFRFWM6C-0340 New | Reflective | 0.3-4.0 | 6 PCS | $401.24 | 5 weeks | Add Cart | ||
| NDFRFWM6C-0340-C New | Reflective | 0.3-4.0 | 6 PCS | $361.00 | 5 weeks | Add Cart |
