Product Description

All filter element diameters are 25.4 mm
The packaging box kit is stored independently with compartments for easy carrying
The turret-style mounting kit uses a stress-free snap ring for easy installation

LBTEK organizes filters of the same shape into a filter kit set. The outer box of the kit with packaging is made of selected PP material, featuring a wave sponge on the upper cover and a partitioned sponge liner in the lower box. The filters can be stored and organized separately in compartments. The outer box is sturdy, pressure-resistant, and provides good protection. All filters in the kit are installed and fixed in standard sleeves, and the surface of the partitioned sponge liner is marked with product models for easy identification and storage by users. For the turret-mounted filter kit, stress-free retaining rings are used to install bare chips, with numbers marked on the side representing OD values, allowing for convenient switching as needed during use.

Neutral Density Filter Kit

Box dimensions: 230×180×50 mm
Slot diameter: 30.5 mm
Absorptive and reflective kits available

The LBTEK filter kit includes commonly used OD (0.1-8.0) filters, currently offering both absorption-type and reflection-type filter kits as options. LBTEK also provides custom configuration services, such as the number of filters, size, OD, etc. For specific customization requirements, please contact LBTEK technical support.

Filter kit with model and OD markings

Product Model	Type	OD	Quantity	Unit Price	Lead Time
NDFR10LK-8-C	Reflective	0.2-4.0	8PCS	$512.24	Contact
NDFA10LK-8-A	Absorptive	0.3-5.0	8PCS	$512.24	Contact
NDFA10LK-8-B	Absorptive	0.3-5.0	8PCS	$512.24	today
NDFA10LK-7-C	Absorptive	0.3-4.0	7PCS	$447.79	today
NDFR10LK-8	Reflective	0.2-4.0	8PCS	$484.92	today
NDFA10LK-10	Absorptive	0.3-8.0	10PCS	$424.12	today
NDFA10LK-10-NIR New	Absorption type	0.1-6.0	10 PCS	$451.06	Contact

Bandpass Filter Kits

Box size: 230×180×50 mm
Slot diameter: 25.4 mm
Spectral FWHM (Full Width at Half Maximum): 25±3 nm or 50±5 nm

The LBTEK Bandpass Filter Kits includes filters with different wavelengths and FWHMs. Currently, filter kits with spectral FWHM of 25±3 nm and 50±5 nm are available. LBTEK also offers customizable filter combinations, such as filter quantity and size. For specific customization requirements, please contact LBTEK Technical Support.

Bandpass filters with model numbers

	Product Model	Diameter	FWHM	Quantity	Unit Price	Compare	Lead Time
	MBF10-BOX-50-7	25.4 mm	50±3 nm	7PCS	$1232.63		Contact
	MBF10-BOX-25-7	25.4 mm	25±3 nm	7PCS	$1232.63		today

Edgepass Filter Kits

Box size: 230×180×50 mm
Slot diameter: 25.4 mm
Visible light or infrared light optional

The LBTEK Quality Edgepass Filter Kits includes 10 or 8 mounted shortpass or longpass filters. Currently, we offer optional filter kits for visible or infrared light. LBTEK also offers customizable filter combinations, such as filter quantity and size. For specific customization requirements, please contact LBTEK Technical Support.

Edgepass filters with model numbers

Product Model	Diameter	Quantity	Type	Start (Stop) Wavelength	Unit Price	Lead Time
MEFH10-BOXSP-10	25.4 mm	10PCS	Short-pass filter	450-1000 nm	$1130	today
MEFH10-BOXLLP-8	25.4 mm	8PCS	Long-pass filter	800-1150 nm	$907.34	today
MEFH10-BOXSLP-8	25.4 mm	8PCS	Long-pass filter	400-750 nm	$907.34	today

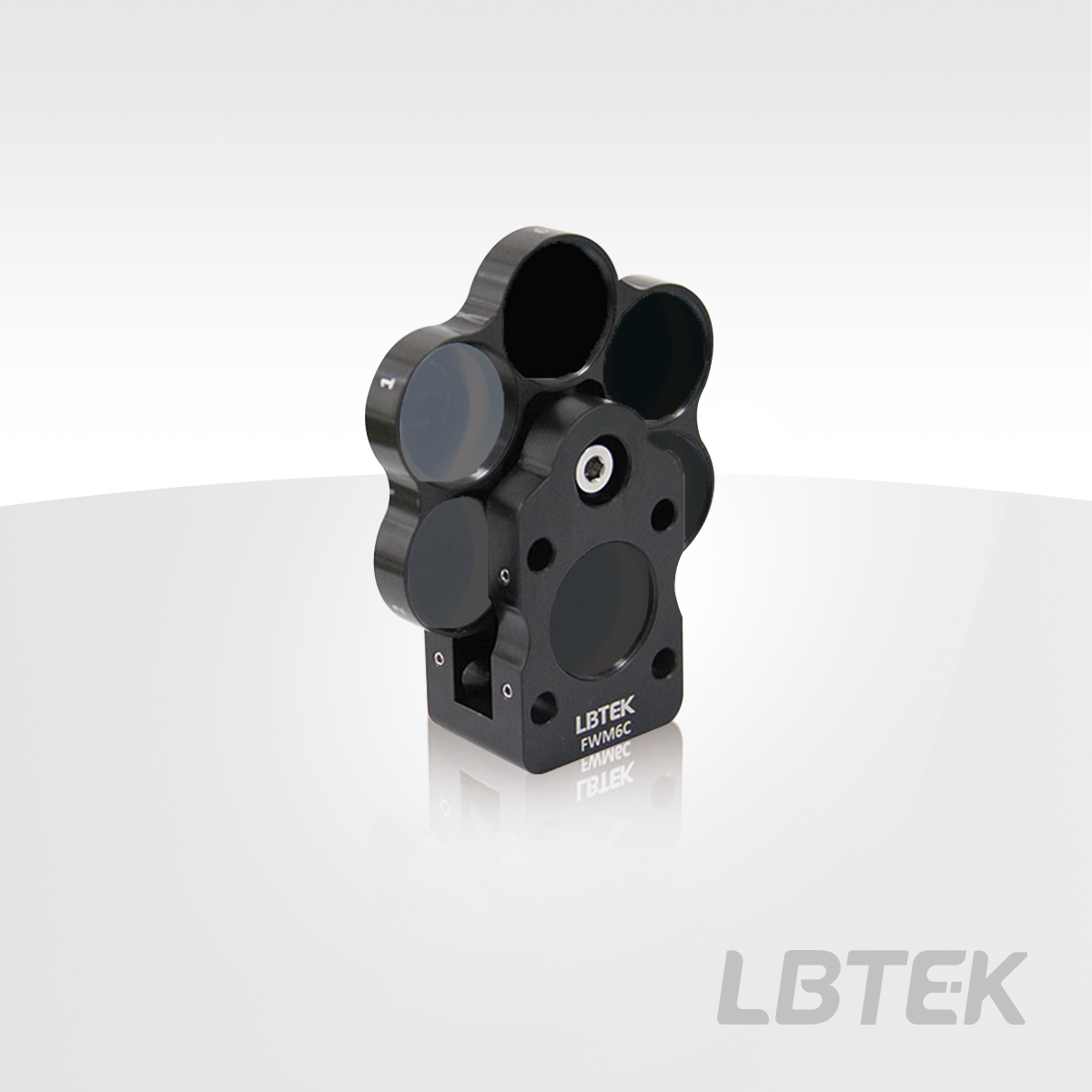

Neutral Density Filter Kit, Turret Mounted

Number of sets: 6 PCS
OD value: 0.3~6.0
Absorption type and reflection type optional

LBTEK Rotary Filter Wheel Kits include commonly used OD (0.3-6.0) filters, currently offering both absorption and reflection filter kits as options. LBTEK also provides custom configuration services, such as the number of filters, size, OD, etc. For specific customization requirements, please contact LBTEK technical support.

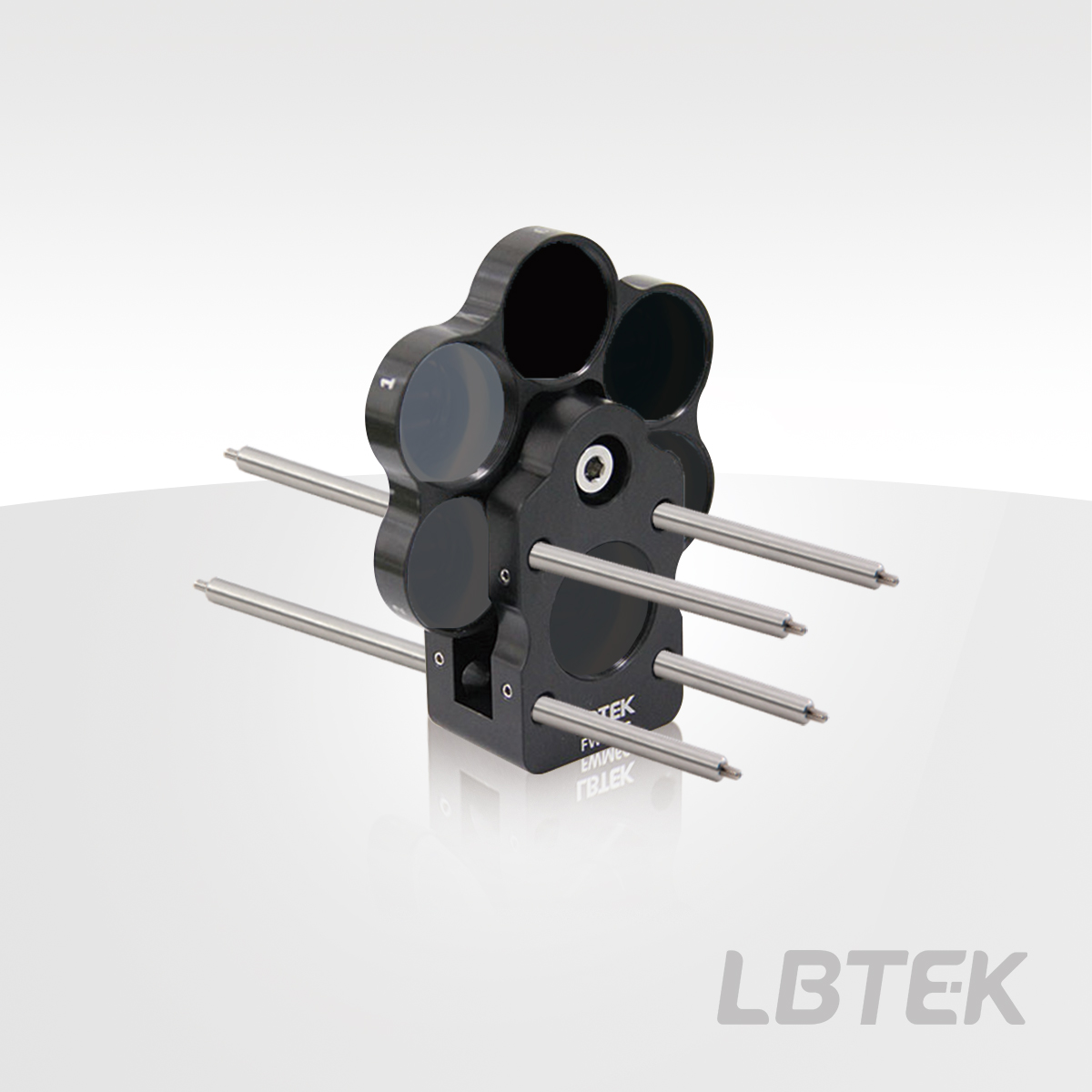

The filter wheel kit is compatible with 30mm coaxial systems.

Product Model	Type	OD	Quantity	Unit Price	Lead Time
NDFAFWM6C-1060 New	Absorption type	1.0-6.0	6 PCS	$305	6 weeks
NDFAFWM6C-1060-A New	Absorption type	1.0-6.0	6 PCS	$434	6 weeks
NDFAFWM6C-1060-B New	Absorption type	1.0-6.0	6 PCS	$434	6 weeks
NDFAFWM6C-0340-C New	Absorption type	0.3-4.0	6 PCS	$437	6 weeks
NDFAFWM6C-1060-NIR New	Absorption type	1.0-6.0	6 PCS	$361	Contact
NDFRFWM6C-0340 New	Reflective	0.3-4.0	6 PCS	$401.24	6 weeks
NDFRFWM6C-0340-C New	Reflective	0.3-4.0	6 PCS	$361	6 weeks
