LBTEK Laser Beam Expander Adapters are suitable for mounting and adapting LZBE series variable magnification laser beam expanders. They can be adapted to optical components such as adjustment mounts, coaxial systems, etc. with Ø2" light wall holes or SM2 tapped holes. The clamped part is fixed and mounted with an M4 rubber head set screw on the side to prevent the clamped part from rotating and sliding, ensuring that the center of the clamp is aligned with the optical axis. The M4 rubber head set screw can be adjusted and locked with a 2.0 mm hex key.

The LBTEK Laser Beam Expander Mount is specifically designed for use with the LZBE series of variable magnification laser beam expanders, which can be fixed to a breadboard or optical table. To install this series of beam expanders, you need to pass through the inner ring of the mount to install them. The top lateral locking screw can elastically deform the mount to lock the mount without damaging the tube due to the screw being too long during installation. The mount has an M4 tapped mounting hole at the bottom, which can be supported by a Ø12.7 mm stainless steel optical post or other connector. A 3.0 mm hex key is included for locking.

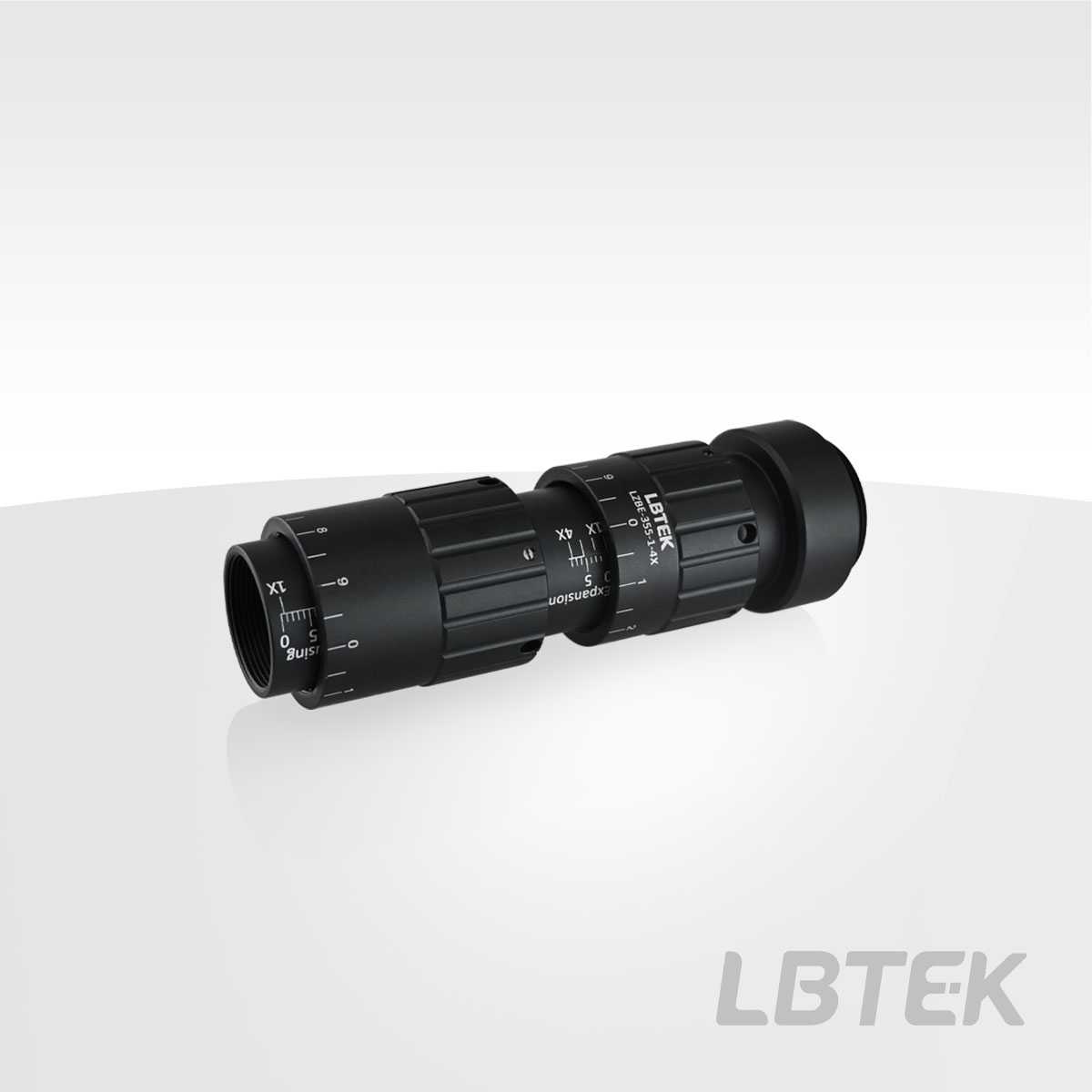

The optical element of LBTEK 1X-4X variable magnification laser beam expander is made of ultraviolet fused quartz (UVFS), which is optimized for diffraction limit. The lens group has a Galilean structure and no internal focus, which meets the application requirements of most scientific research and industrial scenarios. The beam expander can be installed in the optical system by holding it with a clamp and locking it with a rubber head screw. The standard working wavelength is 355 nm, 532 nm, and 1064 nm, and the magnification of the incident laser beam size can be adjusted from 1X to 4X. ※Due to the replacement of the old and new versions, there are differences in the glossiness of the housing, but it does not affect the size specifications and optical performance.

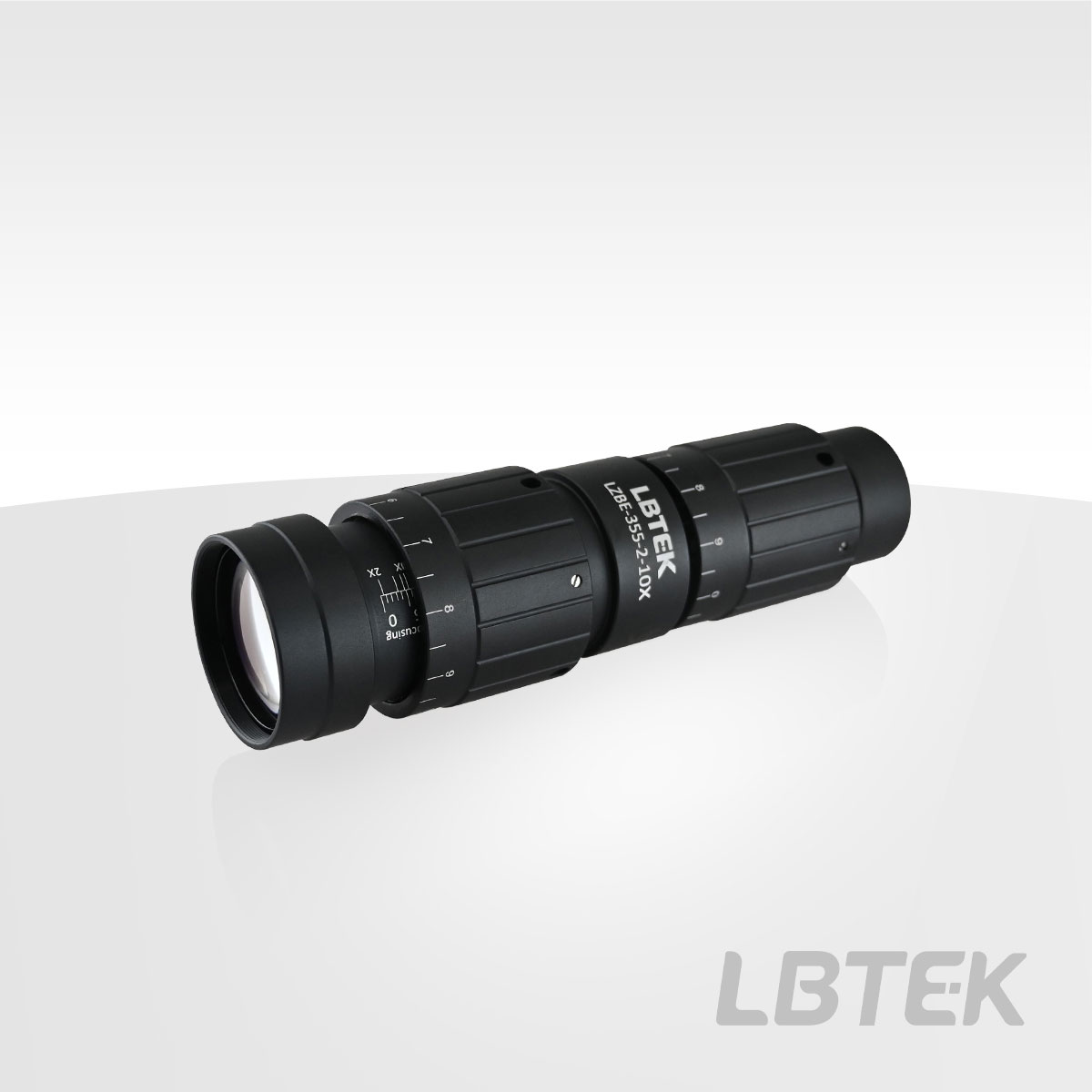

The optical element of the LBTEK 2X-10X variable-magnification laser beam expander is made of ultraviolet fused quartz (UVFS), which is optimized for the diffraction limit. The lens group has a Galilean structure and no internal focus, which meets the application requirements of most scientific research and industrial scenarios. The beam expander can be installed in the optical system by holding it with a clamp and locking it with a rubber-head screw. The standard operating wavelength is 355 nm, 532 nm, and 1064 nm, and the incident laser beam size can be adjusted to a magnification of 2X-10X. ※Due to the replacement of the old and new versions, there are differences in the glossiness of the housing, but it does not affect the size specifications and optical performance.
