Product Description

OD value adjustable through rotating the angle
Ø50 mm filter wheel
Continuous and stepped options available
Applicable for 240 - 1200 nm

The LBTEK Neutral Density Filter Wheel for 30 mm coaxial systems features a UV fused silica base with a metal (Inconel) coating. Continuous and steped neutral density filters are available. The continuous neutral density filters have OD ranges of 0.04-2.0, 0.04-4.0, or 0.04-6.0, while the step-index neutral density filters have OD ranges of 0.04 to 1.0 or 0.04 to 3.0. The filters have a diameter of 50 mm and are mounted on a rotating lever arm for easy removal from the optical path. The filter wheel features 30 mm coaxial mounting plates on both sides, which include internally SM1-threaded ports and four through holes for integration into coaxial systems. Additionally, an M4 tapped hole is located on the bottom for mounting to 12.7 mm series posts and accessories.

Attribute

Filter diameter50 mm

Continuously Variable Neutral Density Filter Wheel for 30 mm Coaxial Systems

Substrate Material: UV Fused Silica
Coating: Inconel
Rotatable with swivel lever arm
Compatible with SM1 lens tubes and 30 mm cage systems
M4 threaded holes on bottom

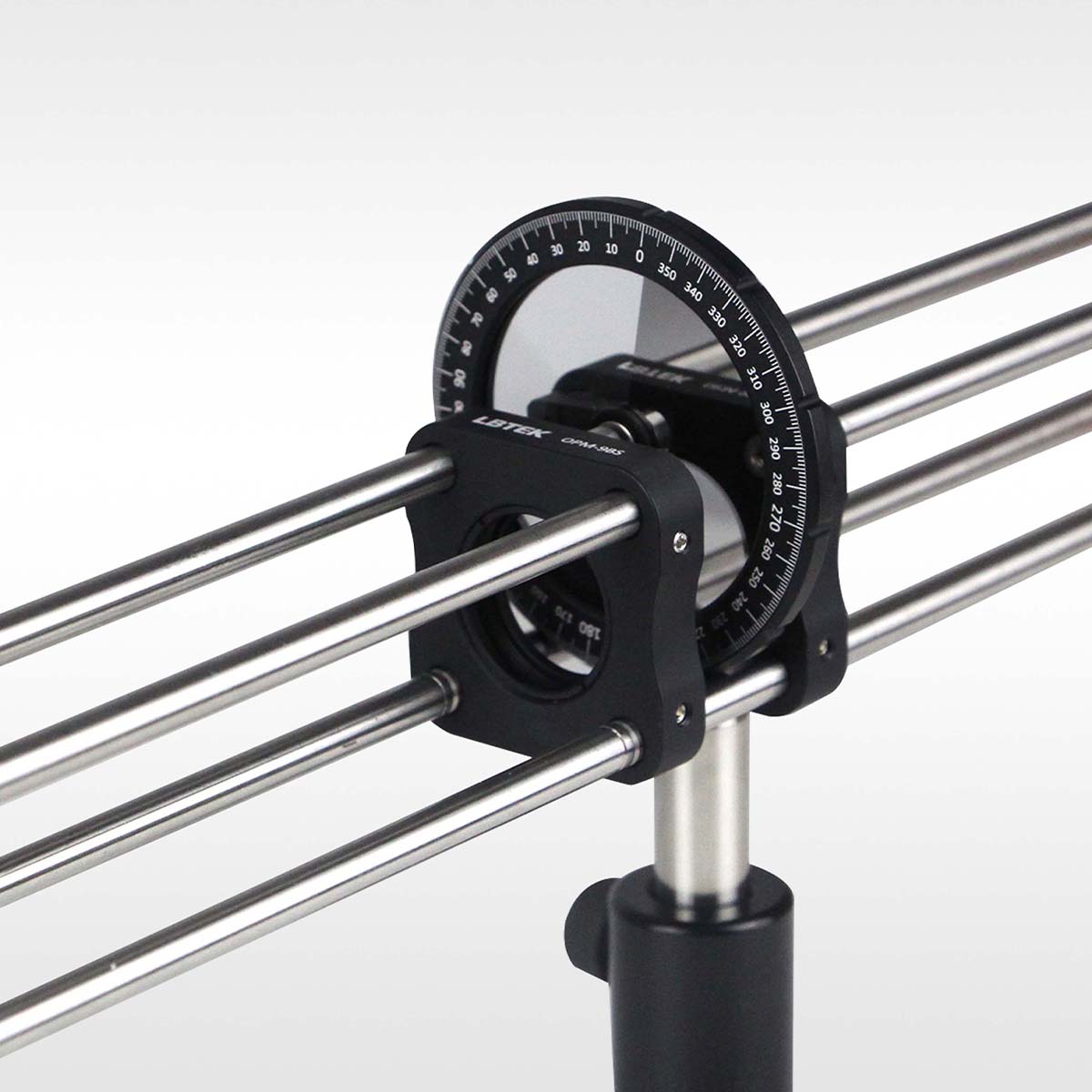

The LBTEK continuous neutral density filter wheel is designed for 30 mm coaxial systems, with precision engineering to minimize the impact on the optical element's clear aperture. The coated side is marked with a scale, and for optimal performance, it is recommended to have light incident from this side. It is compatible with both SM1 lens tubes and 30 mm coaxial systems. Additionally, the coaxial plate features an M4 threaded hole at the bottom for mounting to our 12.7 mm series posts and accessories.

Neutral Density Filter Wheel for 30 mm Coaxial System

Product Model	Filter diameter	OD value range	Filter thickness	Unit Price	Lead Time
CNDFR-50C-6M	Ø50 mm	0.04 (uncoated) -6.0	2.0 mm	$555	4 weeks
CNDFR-50C-4M	Ø50 mm	0.04 (uncoated) - 4.0	2.0 mm	$477.86	4 weeks
CNDFR-50C-2M	Ø50 mm	0.04 (uncoated) - 2.0	2.0 mm	$477.86	4 weeks

Stepped Neutral Density Filter Wheel for 30 mm Coaxial Systems

Substrate Material: UV Fused Silica
Coating: Inconel
Rotatable with swivel lever arm
Compatible with SM1 lens tubes and 30 mm cage systems
M4 threaded holes on bottom

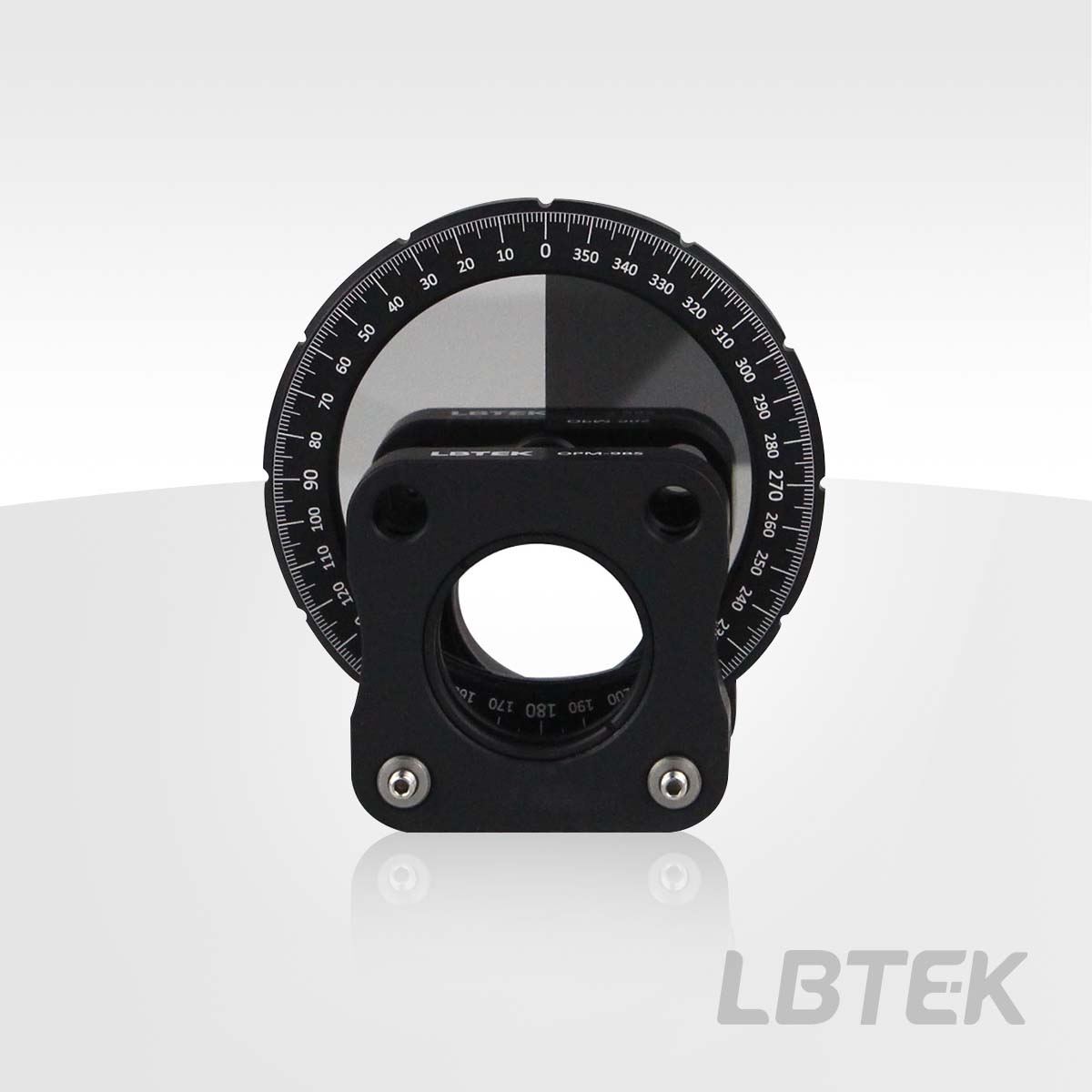

The LBTEK Stepped Neutral Density Filter Wheel is designed for 30 mm coaxial systems, with precision engineering to minimize the impact on the optical element’s clear aperture. The side with the scale is coated, and for optimal performance, it is recommended to have light incident from this side. It is compatible with both SM1 lens tubes and 30 mm coaxial systems. Additionally, the coaxial plate features an M4 threaded hole at the bottom for mounting to our 12.7 mm series posts and accessories.

Neutral Density Filter Wheel for 30 mm Coaxial System

	Product Model	Filter diameter	OD value range	Filter thickness	Unit Price	Compare	Lead Time
	CNDFR-50S-3M	Ø50 mm	0.04 (uncoated) - 3.0	2.0 mm	$907.87		4 weeks
	CNDFR-50S-1M	Ø50 mm	0.04 (uncoated) - 1.0	2.0 mm	$907.87		4 weeks
