Product Description

Liquid crystal polymer/N-BK7 window material, sandwich flat structure with chamfer
Liquid crystal molecule fast axis orientation with cubic phase distribution, λ/2 retardation
Polarization-dependent, applicable to generate Airy beams
Airy beams with transverse self-accelerating characteristics, self-healing properties, and non-diffracting features
Operating wavelength λ: 633 nm
Flexible customization of parameter specifications available

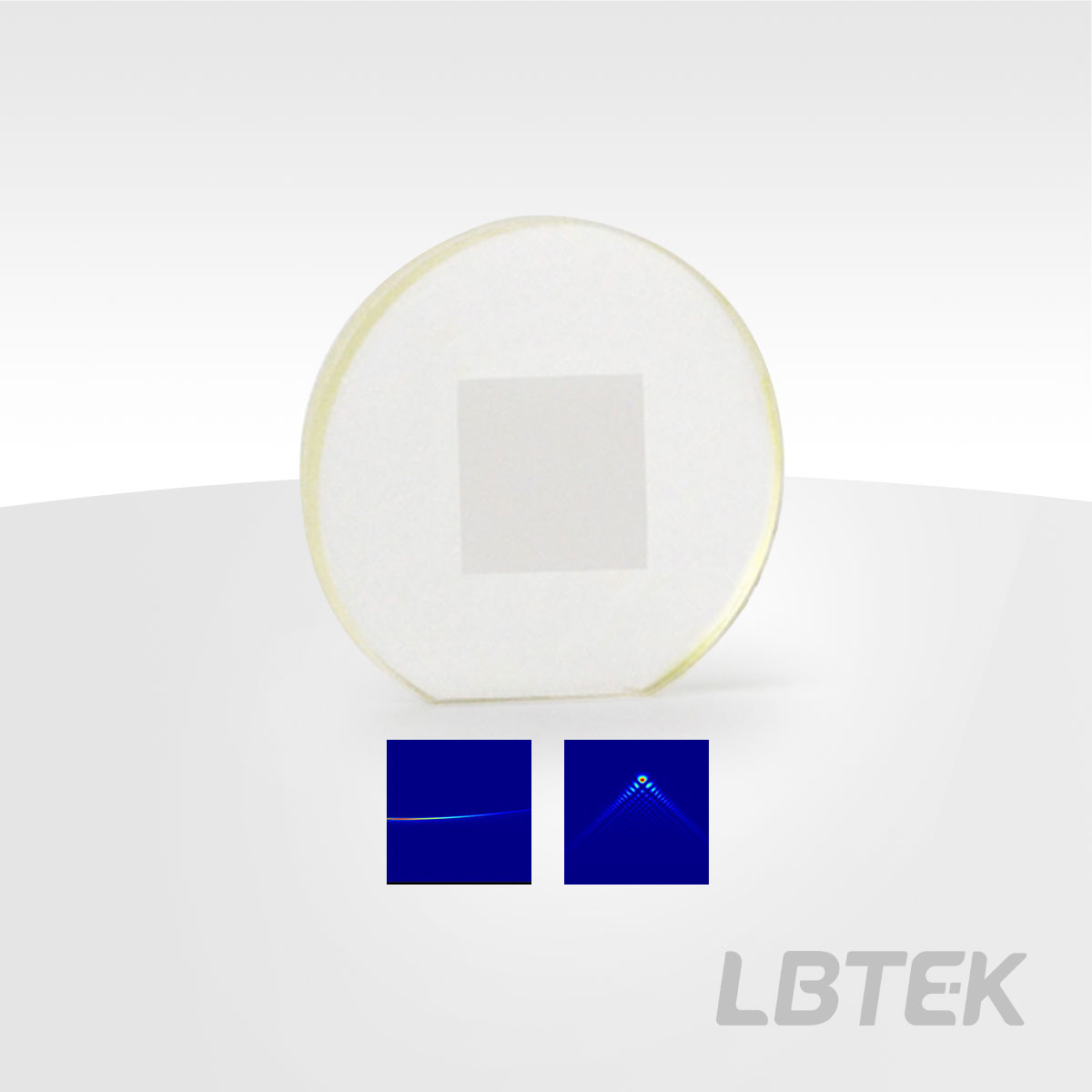

The Airy beam converter provided by LBTEK is a two-dimensional, first-order Airy beam converter (Airy Beam Converter, AB). It is fabricated based on liquid crystal polymer material (Liquid Crystal Polymers, LCP) and N-BK7 window substrates, presenting a sandwich structure of "front and rear glass substrates with an intermediate LCP functional film layer," without a housing, and featuring a single-sided 1.5 mm chamfer. In the LCP layer, the liquid crystal polymer molecules form a cubic phase distribution, providing the same λ/2 retardation across the entire device plane, making it a single-wavelength device. The Airy beam converter is a polarization-dependent component that can be used to convert Gaussian beams into Airy beams with transverse self-accelerating, self-healing, and non-diffracting properties. Its applications in particle manipulation, material processing, microscopic imaging, and optical detection have been extensively studied. LBTEK offers standard Airy beam converters with a working wavelength of 633 nm, also supporting flexible customization of parameter specifications to meet diverse user needs in different application scenarios. For details, please consult LBTEK Technical Support.

Attribute

Surface Parallelism

Component MaterialLiquid Crystal Polymer/N-BK7 Window Plate

Operating wavelength λ633 nm

Component sizeØ25.4×3.2 mm, a single-sided 1.5 mm chamfer

Angle of Incidence (AOI)±15 °

Clear Aperture10×10 mm

Transmission Wavefront Error＜λ/4@633 nm

Center offset＜0.5 mm

Surface finish (scratches/pits)40/20

Operating Temperature-20~80 ℃

Latencyλ/2

Anti-reflective coatingRavg＜0.5 %@400-700 nm

Delay Accuracy & Uniformity±5 nm

Transmittance＞98%

Airy Beam Converters, Two-dimensional First-order

Working Wavelength 633 nm, Coated with 400-700 nm Anti-reflection Film
Single-side 1.5 mm Chamfer, Parallel to the Edge of Clear Aperture
Clear Aperture 10×10 mm

The LBTEK 2D first-order Airy beam converter operates at a wavelength of 633 nm, with an anti-reflection coating for 400-700 nm that ensures >98% transmittance. It features a 1.5 mm wide single-side cut edge, where the cutting direction is parallel to the side of the clear aperture, serving as a marker for the output beam's geometric orientation. The device has a clear aperture of 10×10 mm.

Airy beam converter phase diagram

	Product Model	Operating wavelength λ	Unit Price	Compare	Lead Time
	LCAB25-DM-633	633 nm	$1040.18		3 weeks
