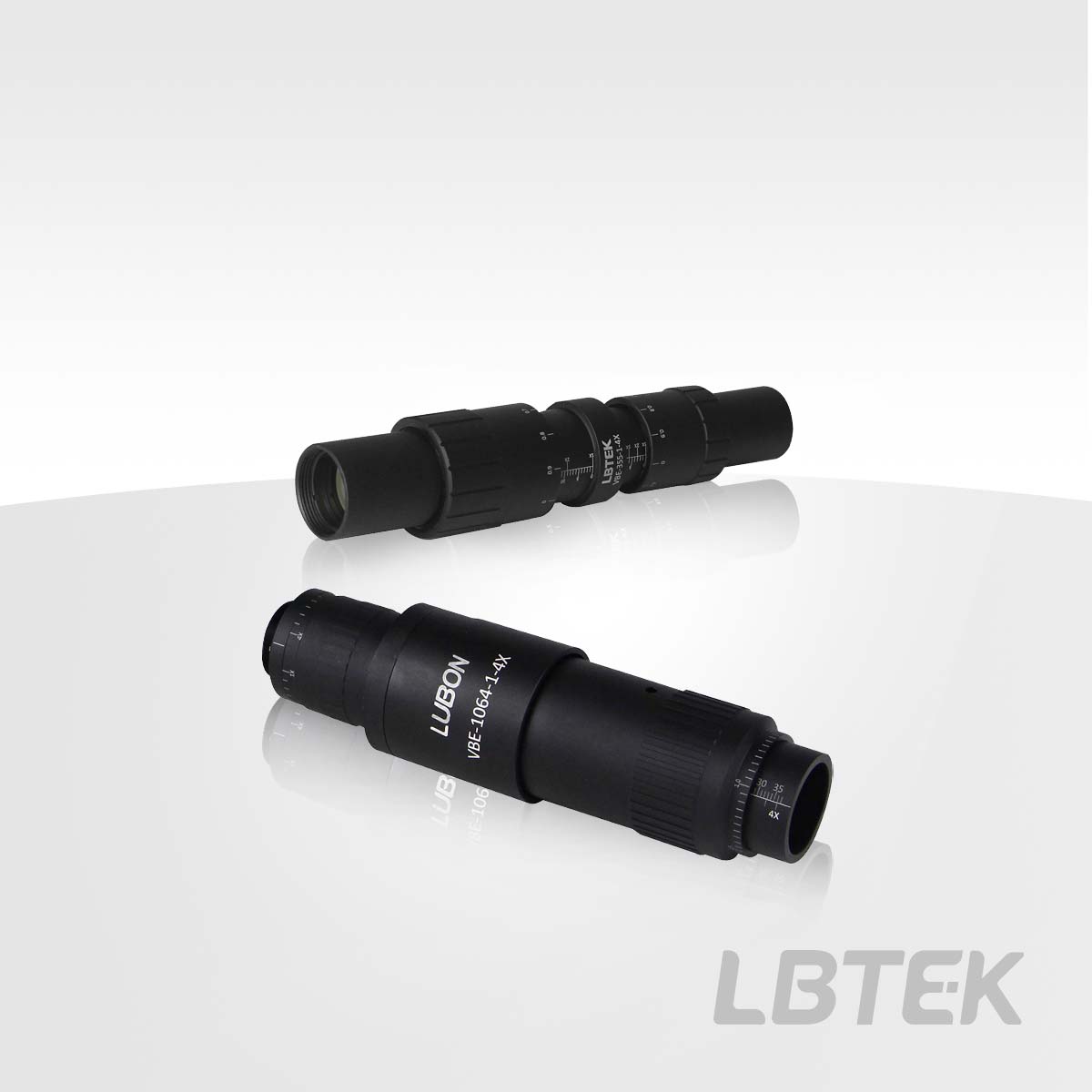

The LBTEK 1X-4X Zomm Magnification Beam Expander features optical elements made of ultraviolet fused silica (UVFS) and a design optimized for diffraction limits. The lens assembly adopts a Galilean structure and lacks an internal focus, meeting the application requirements of most scientific research and industrial scenarios. The mechanical housing for wavelengths of 532 nm and 1064 nm is a fixed-length structure, and the total length does not change with rotational adjustment. It is designed with M4 threaded holes for convenient installation in optical systems and can also be clamped using a clamp. The beam expander for wavelengths of 355 nm has a variable length structure and can be mounted using an SM1-FR or a clamp. Standard operating wavelengths are available at 355 nm, 532 nm, and 1064 nm, and the magnification of the incident laser beam size can be adjusted from 1X to 4X.

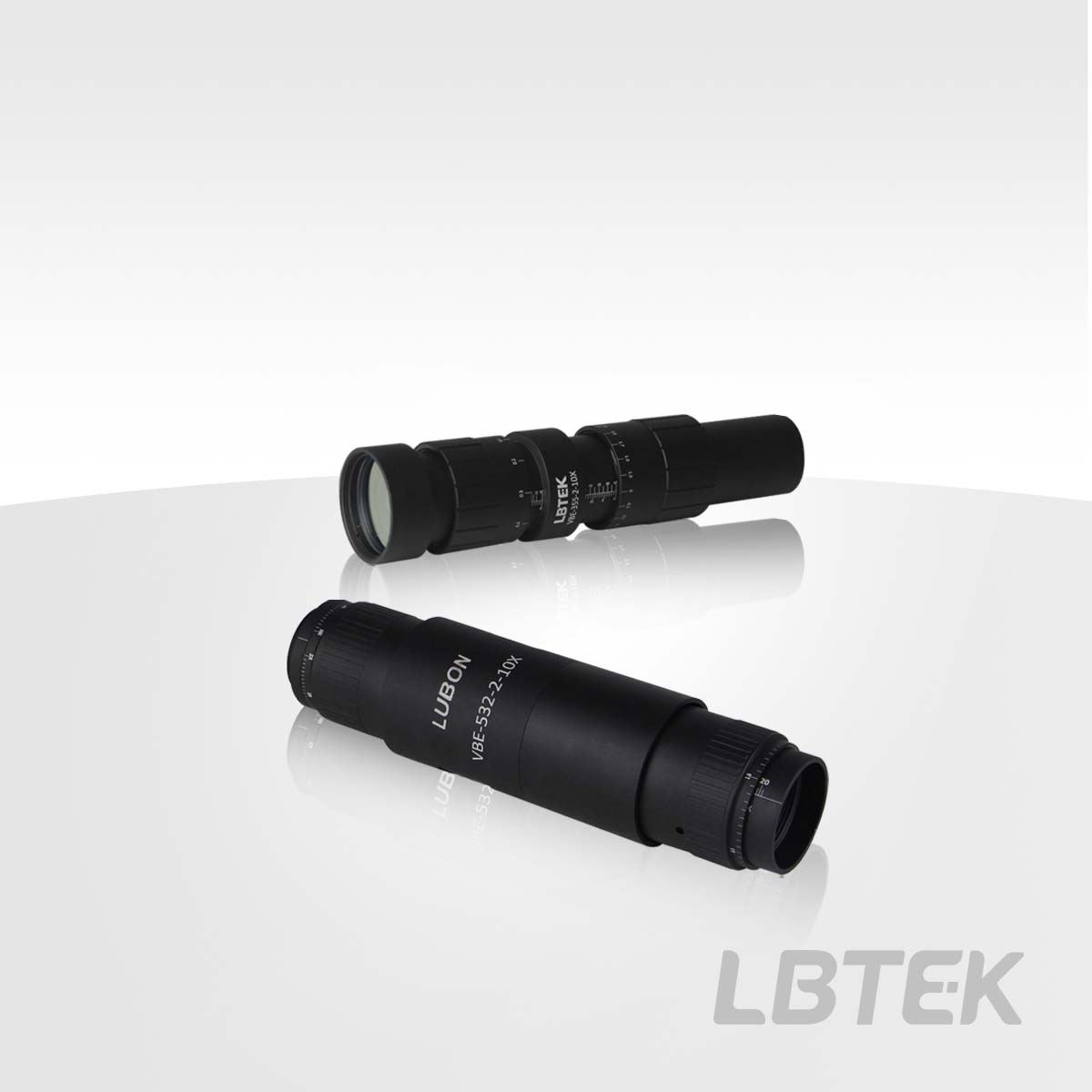

The LBTEK 2X-10X Zomm Magnification Beam Expander's optical elements are made of ultraviolet fused silica (UVFS) and are designed to optimize the diffraction limit. The lens group has a Galilean structure and no internal focus, meeting the application requirements of most scientific research and industrial scenarios. The mechanical housing of the 532 nm and 1064 nm beam expanders is a fixed-length structure, and the total length does not change with rotation adjustment. It is designed with M4 threaded holes to facilitate the product's installation in the optical system, and can also be installed by clamping. The 355 nm beam expander has a variable length structure and can be installed by clamping. The standard operating wavelengths are optional at 355 nm, 532 nm, and 1064 nm, and the incident laser beam size can be adjusted to achieve a 2X-10X magnification.

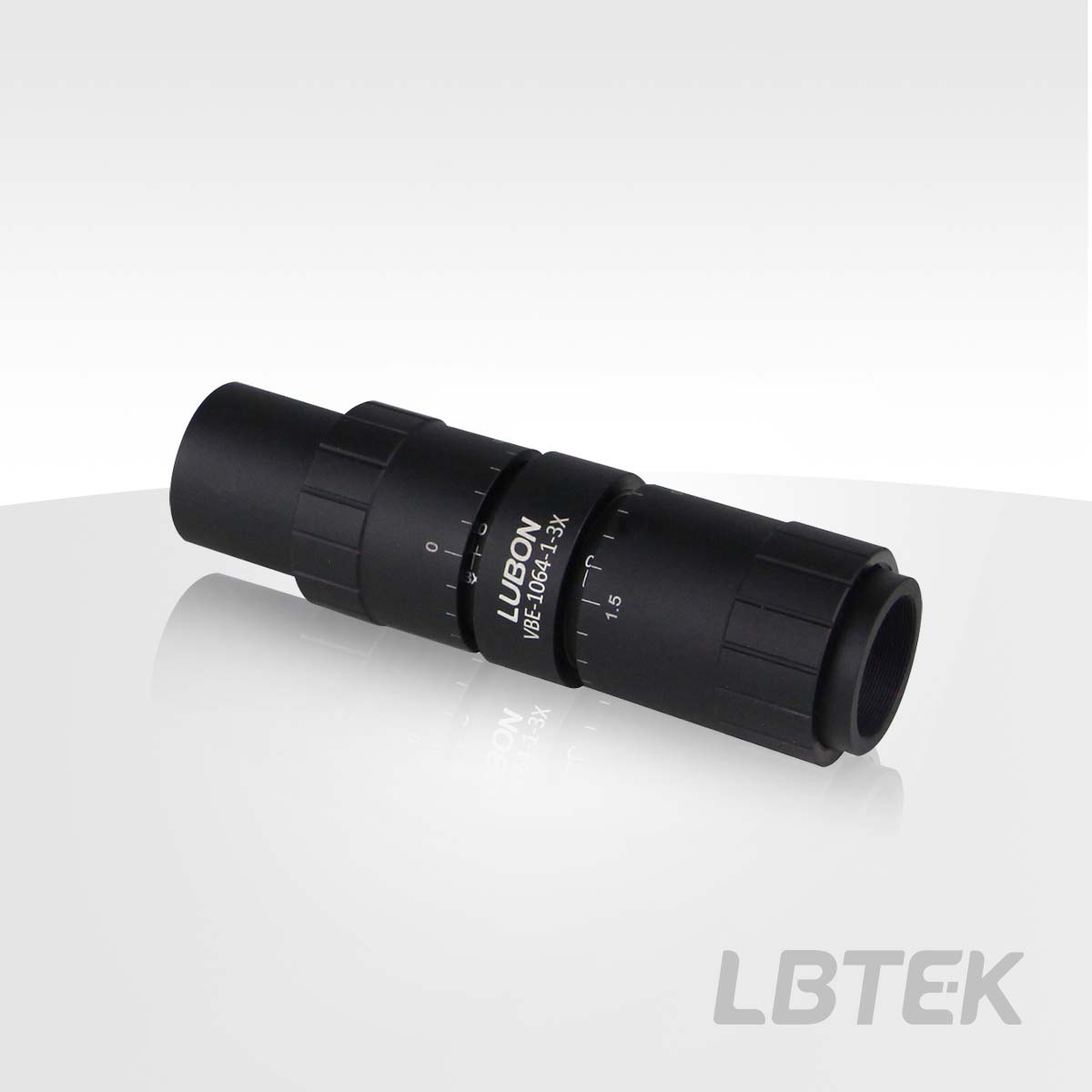

The LBTEK 1X-3X Zoom Magnification Beam Expander features optical elements made of ultraviolet fused silica (UVFS) and a diffraction-limited design. Its Galilean structure and no internal focus design make it suitable for most scientific research and industrial applications. The beam expander can be mounted within an optical system using a clamp. Standard operating wavelengths are 1064 nm and 532 nm, and it can adjust the magnification of the incident laser beam from 1X to 3X.

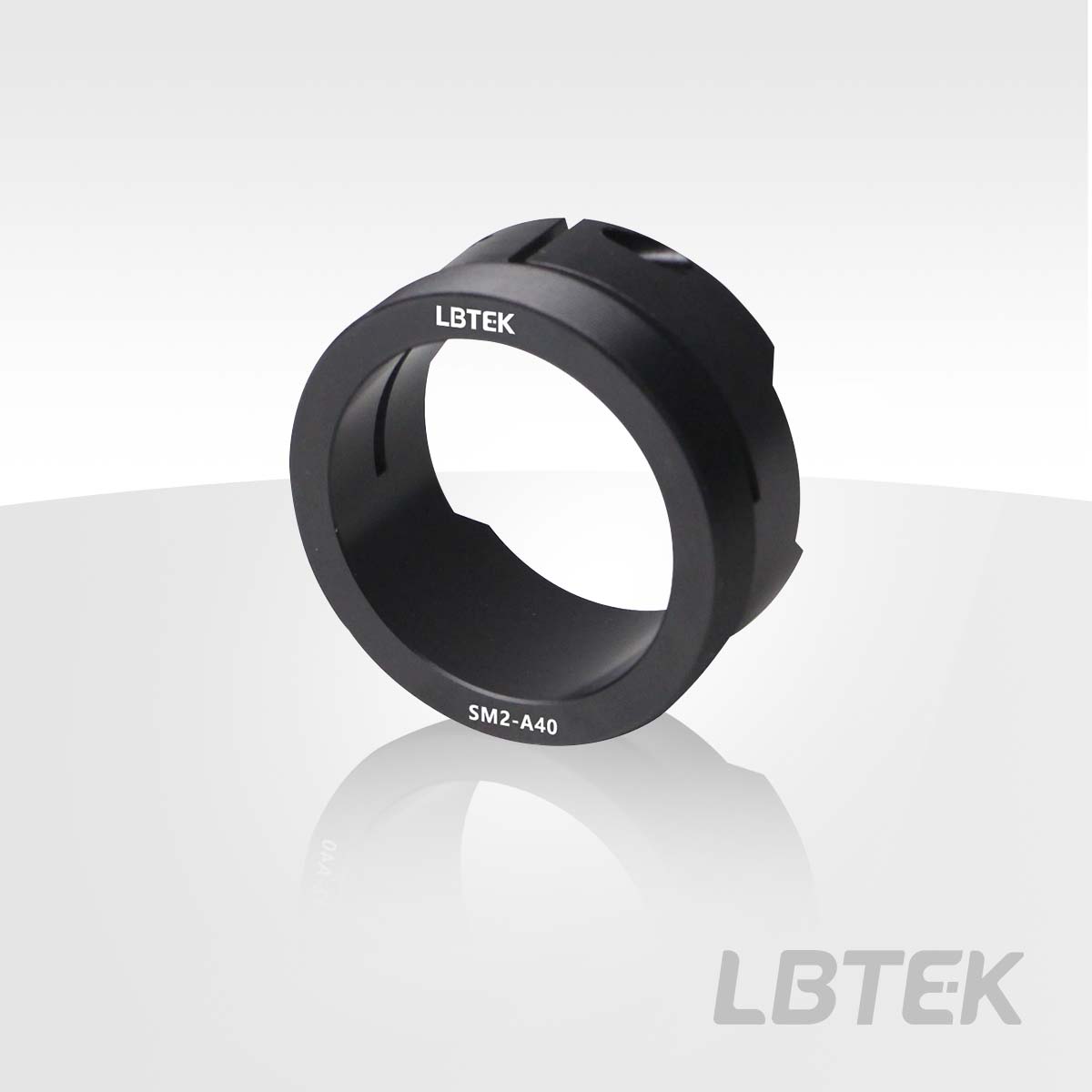

The LBTEK high-precision zoom beam expander adapter is compatible with the 1X-3X zoom beam expander series. It clamps the beam expander and allows it to be attached to optomechanical assemblies such as SM2-threaded kinematic mounts and coaxial mounting plates. The clamped component is secured with a side-mounted M2 hexagonal screw, preventing rotation and slippage and ensuring alignment of the clamp with the optical axis. The M2 hexagonal screw can be adjusted and tightened using a 1.5 mm hexagonal wrench. A grooved design on the adapter allows for rotational adjustment of the adapter's clamping position on the zoom beam expander, preventing obstruction of the beam expander's engraved lines and facilitating confirmation of magnification and alignment.
