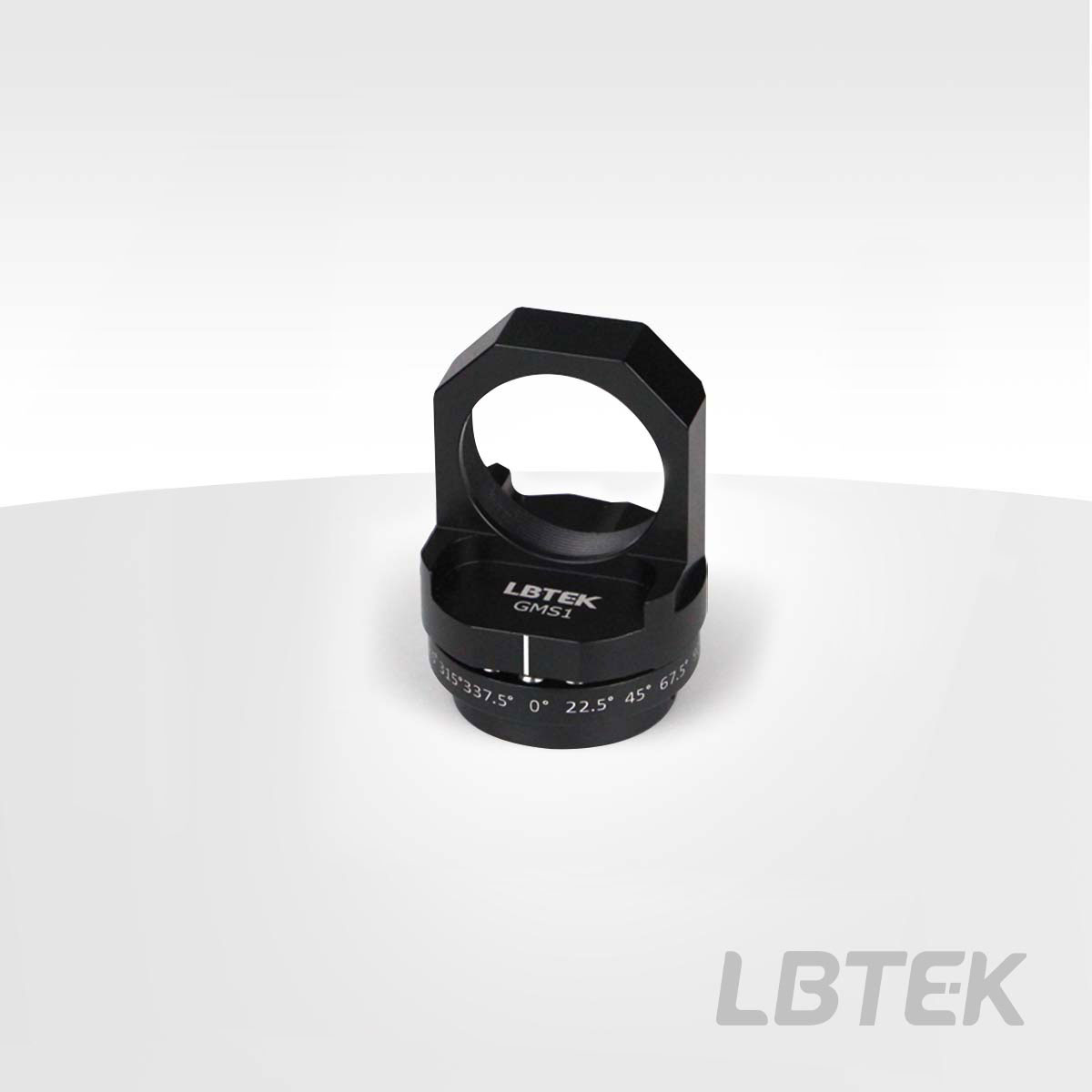

The LBTEK Indexing Mount uses a retaining ring to secure optical components with a maximum thickness of 6 mm and a diameter of Ø25.4 mm. It features 16-position indexing, with each position incremented by 22.5°. This mount is suitable for redirecting lasers to multiple targets on an optical table. The product consists of two parts: a top plate and a base plate. Neodymium magnets bond the top and base plates together. The base plate is marked with angle position scales for fast alignment, offering high precision and repeatability. When adjusted to a position, there is a distinct tactile feedback. Three M4 tapped holes in the base plate allow the mount to be secured to a post. A small through-hole is located directly below the 90° scale on the base plate, which can be adjusted using a 2 mm ball-head screwdriver to provide sufficient torque when attaching the mount to the post.

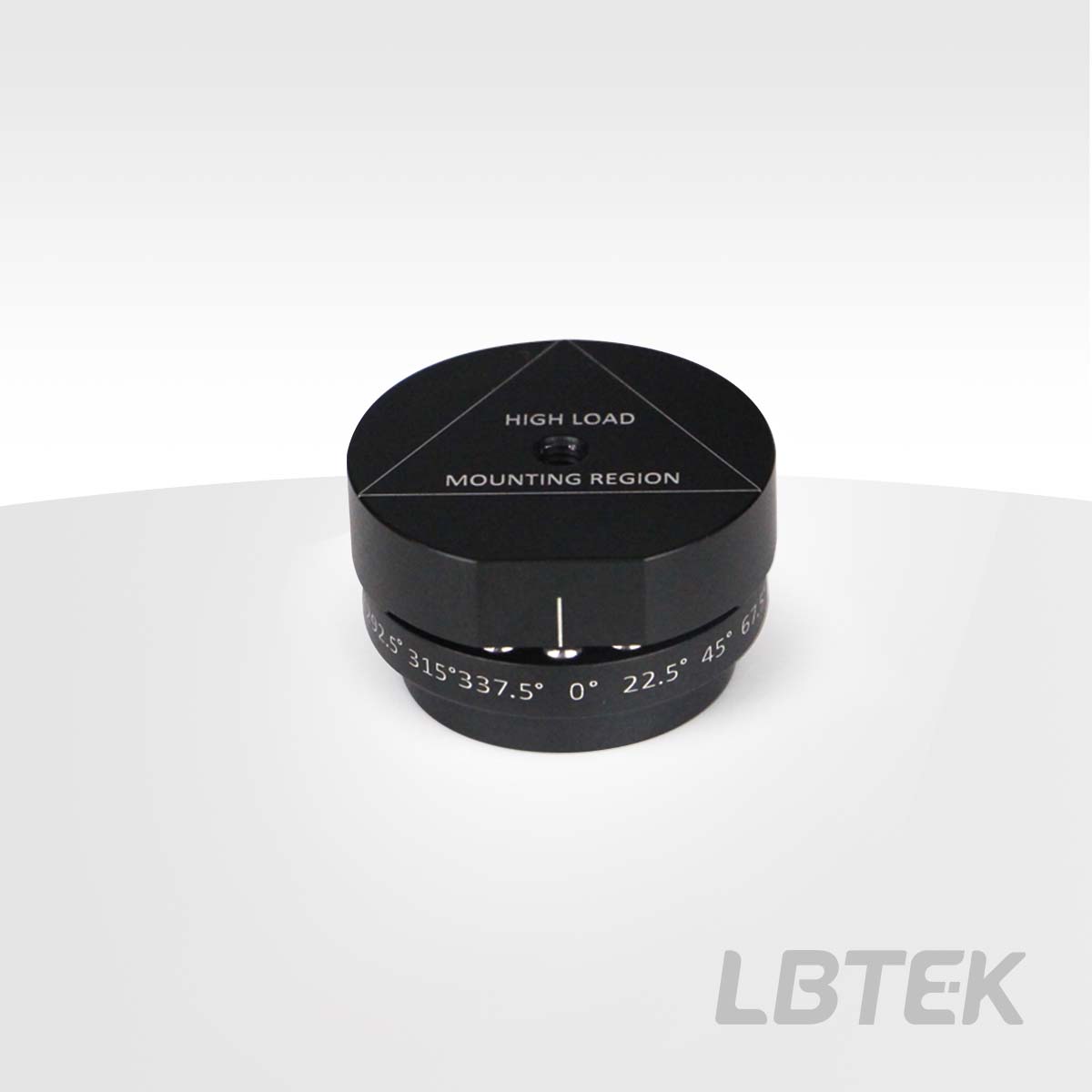

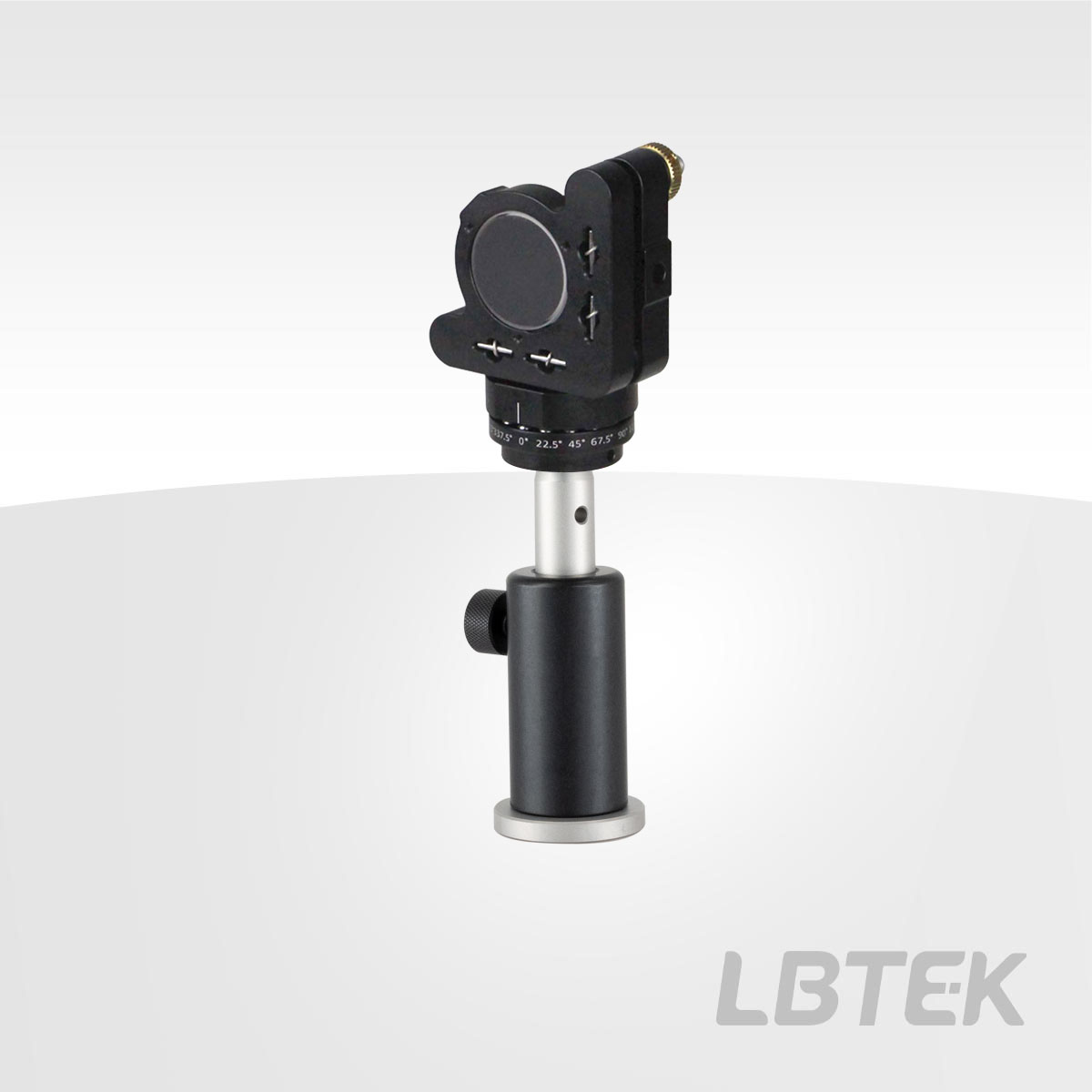

The LBTEK Indexing Mounts for optical components features 16-position indexing, with each increment of 22.5°. This mount is an ideal choice for redirecting lasers to multiple targets on an optical platform and precisely switching shared laser systems. It consists of two parts: a top plate and a base plate. Neodymium magnets secure the top plate to the base plate. The top plate is equipped with M4 tapped holes for mounting optical components, while the base plate is marked with angle position scales for fast alignment. It offers high precision and repeatability, with a distinct tactile feedback when adjusted to each position. Three M4 tapped holes on the base plate allow the mount to be fixed to a post. A small through-hole is located directly below the 90° scale on the base plate, which can be adjusted using a 2 mm ball-head screwdriver to provide sufficient torque when attaching the mount to the post.
