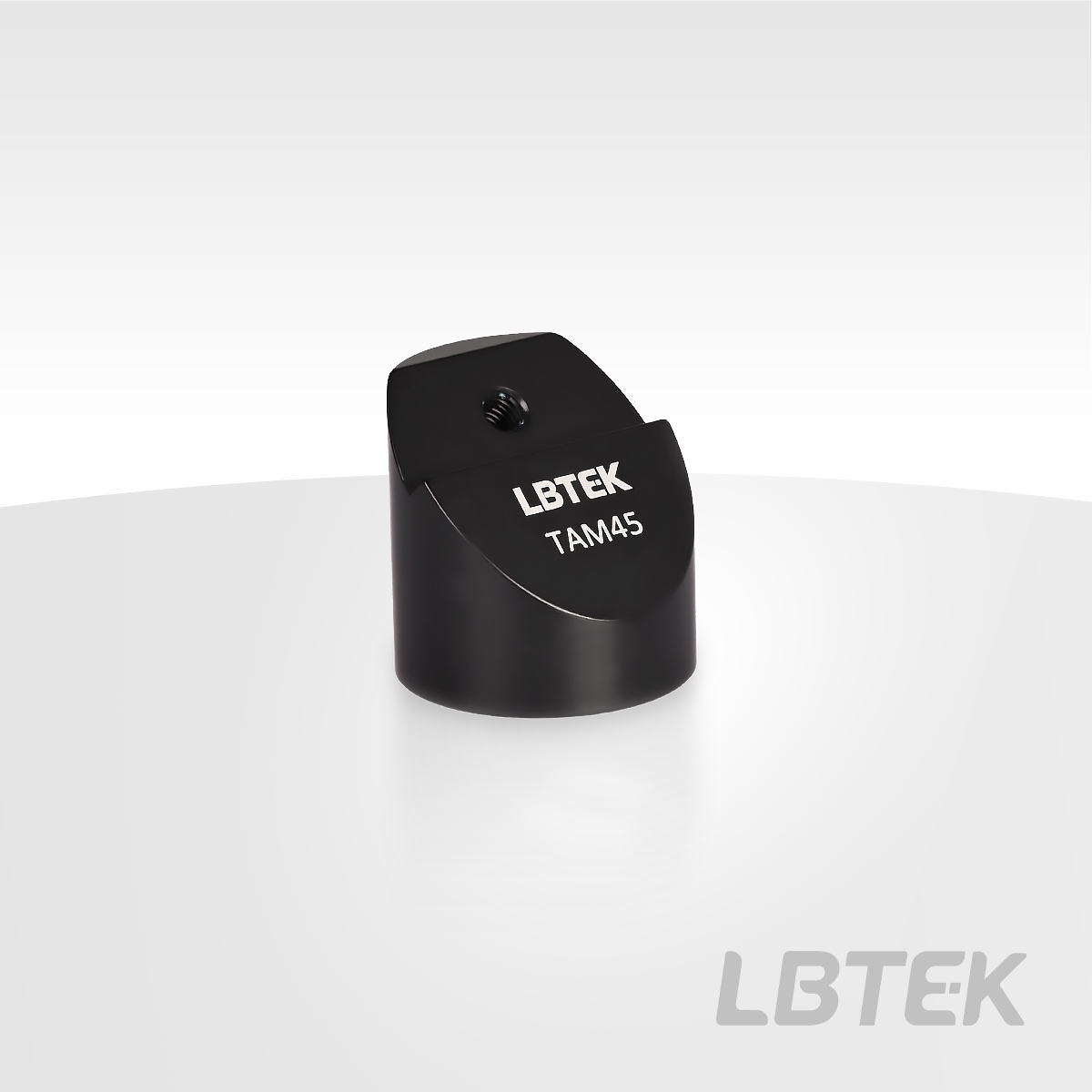

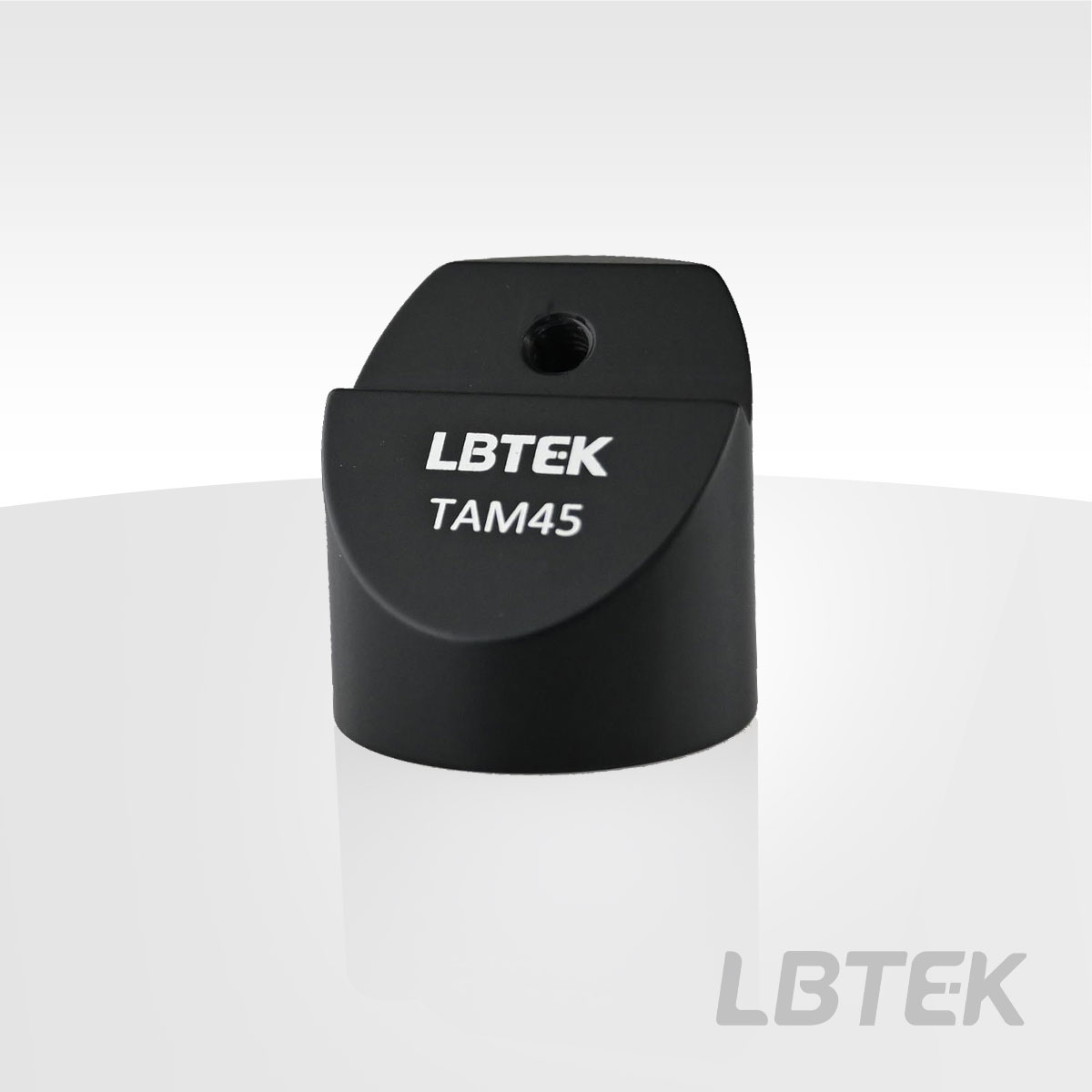

The 45° mounting adapter (dimensions Ø25.0 mm × 25.3 mm) from LBTEK is constructed from black anodized aluminum alloy, featuring an M4 tapped hole on its 45° angled surface for direct fixation of AMM series mounts using cap screws. When the AMM-1X is installed on the TAM45 with the UBPH universal rotation base, the beam height at the center of the AMM-1X lens is 56 mm from the operating stage. If the AMM-2X assembly is used, the beam height becomes 68 mm. (Note: Not recommended for use with AMM-05X as the screw assembly will interfere with the inclined surface.) The bottom of the adapter has an M6 tapped hole for mounting Ø25.0 mm posts or post holder bases. The purchase of LBTEK 45° mounting adapter comes with one M6 socket head cap screw and one M4 socket head cap screw.

BTEK 45° stainless steel mounting adapter, dimensions Ø25.0 mm×25.3 mm, made of sandblasted and passivated stainless steel. The 45° angled plane of the adapter features an M4 threaded hole for mounting the adjustment bracket, along with two φ2mm pin holes for precise installation. The bottom of the adapter has an M6 threaded hole, which can be used to mount an Ø25.0 mm post or post holder base, and includes two φ2mm pin holes for precise installation. The purchase of LBTEK's 45° stainless steel mounting adapter includes two φ2mm pins.
