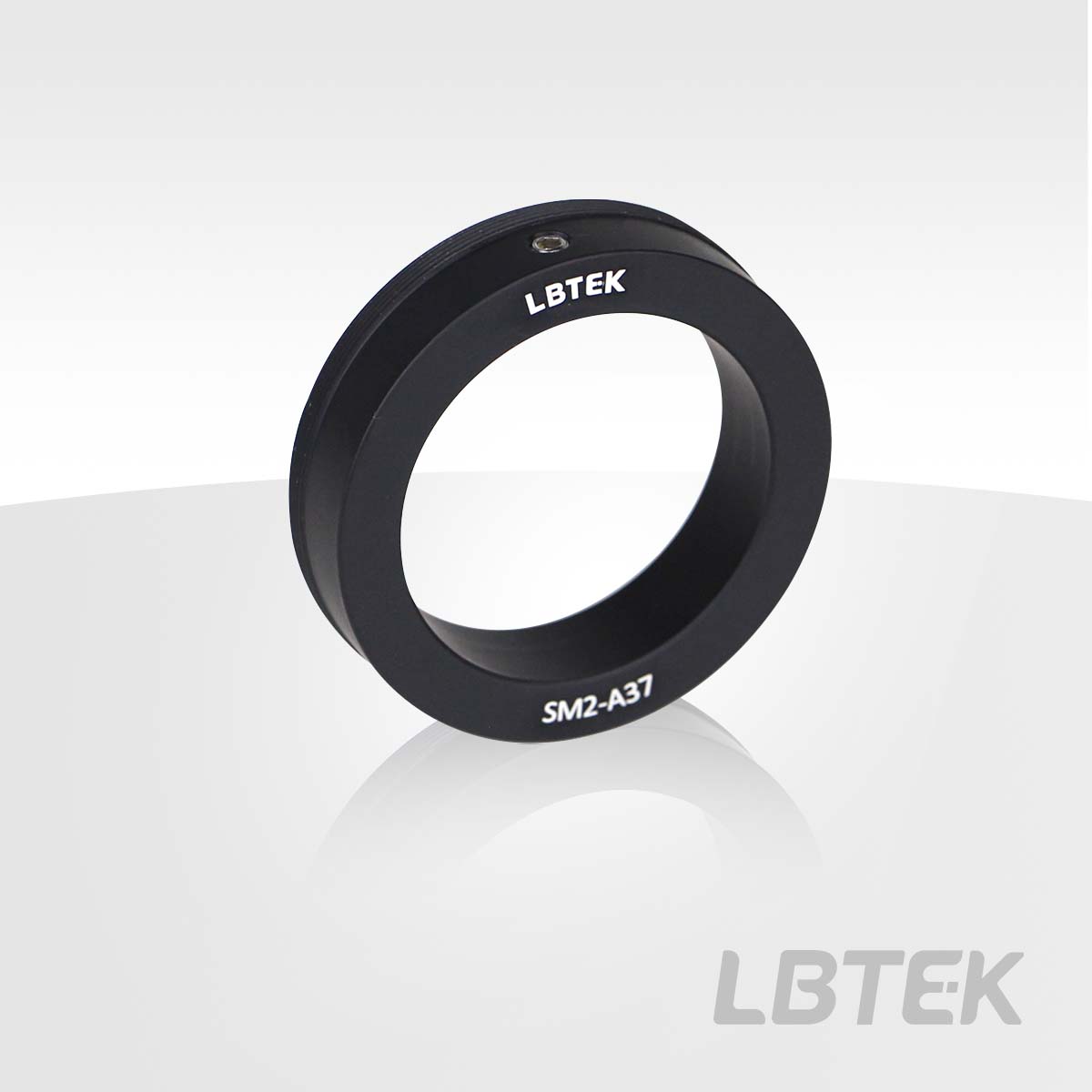

LBTEK Laser Beam Expander Adapters are suitable for mounting and adapting LZBE series variable magnification laser beam expanders. They can be adapted to optical components such as adjustment mounts, coaxial systems, etc. with Ø2" light wall holes or SM2 tapped holes. The clamped part is fixed and mounted with an M4 rubber head set screw on the side to prevent the clamped part from rotating and sliding, ensuring that the center of the clamp is aligned with the optical axis. The M4 rubber head set screw can be adjusted and locked with a 2.0 mm hex key.

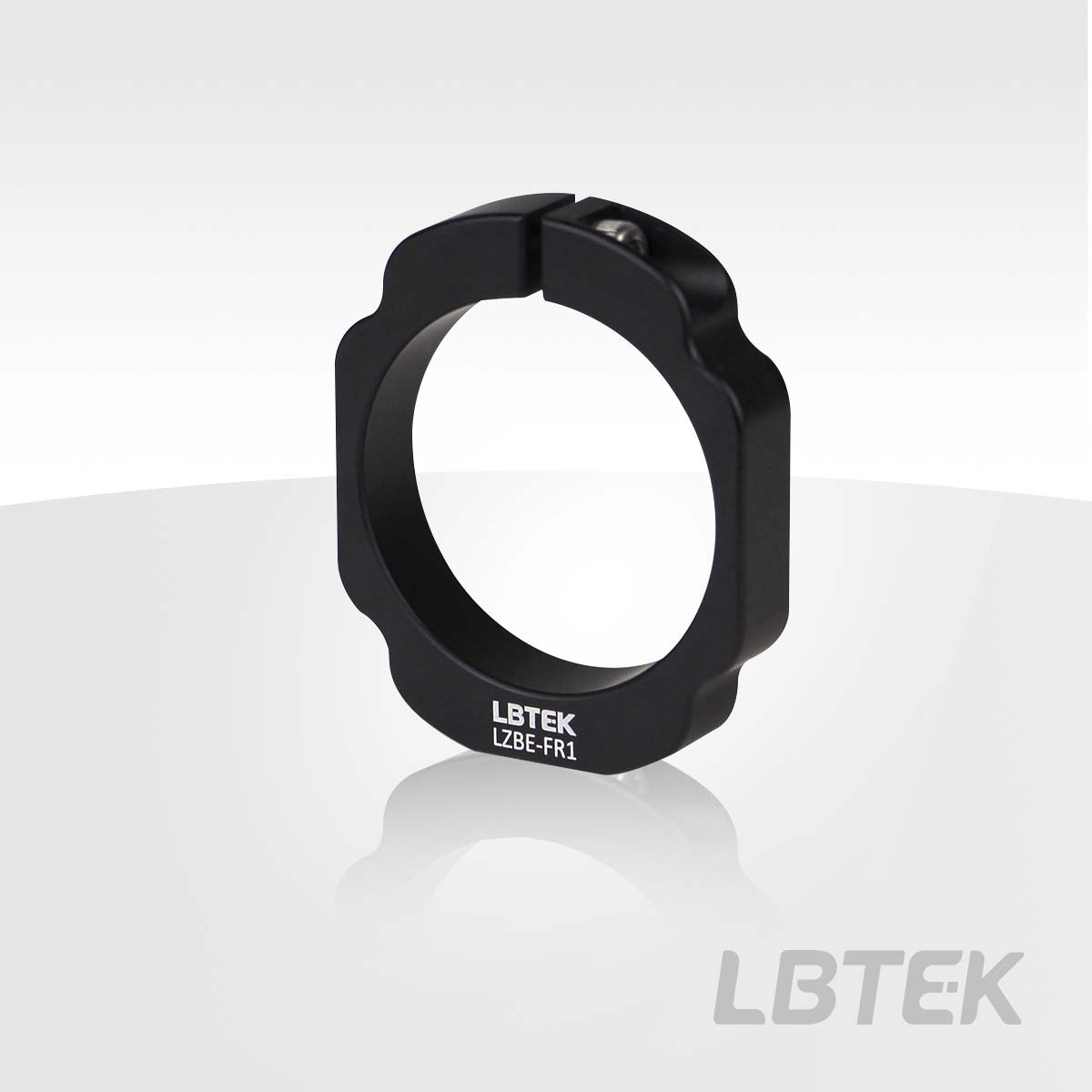

The LBTEK Laser Beam Expander Mount is specifically designed for use with the LZBE series of variable magnification laser beam expanders, which can be fixed to a breadboard or optical table. To install this series of beam expanders, you need to pass through the inner ring of the mount to install them. The top lateral locking screw can elastically deform the mount to lock the mount without damaging the tube due to the screw being too long during installation. The mount has an M4 tapped mounting hole at the bottom, which can be supported by a Ø12.7 mm stainless steel optical post or other connector. A 3.0 mm hex key is included for locking.
