Two linearly polarized light beams with a high extinction ratio obtained at the transmission end when the non-polarized light is incident in the forward direction, with an extinction ratio up to 100,000:1.

Two crystals bonded together with adhesive

Pre-installed in a black anodized mechanical housing that is non-detachable, with engraved schematic diagram of the markings indicating the incident direction. SM1 external threads engraved on one end of the housing with retaining rings for reverse locking and prism polarization direction control; with an optical arm on the other end both compatible with the LBTEK mounts for convenient use by customers..

Two orthogonally polarized light beams obtained at the transmission end when the non-polarized light is incident, with an extinction ratio up to 100,000:1.

Bonded with the adhesive when the material is calcite, optical contact process adopted when the material is α-BBO.

Pre-installed in a black anodized mechanical housing that is non-detachable. SM1 external threads engraved on one end of the housing with retaining rings for reverse locking and prism polarization direction control; with an optical arm on the other end both compatible with the LBTEK mounts.

Capable of outputting the linearly polarized light with a high extinction ratio

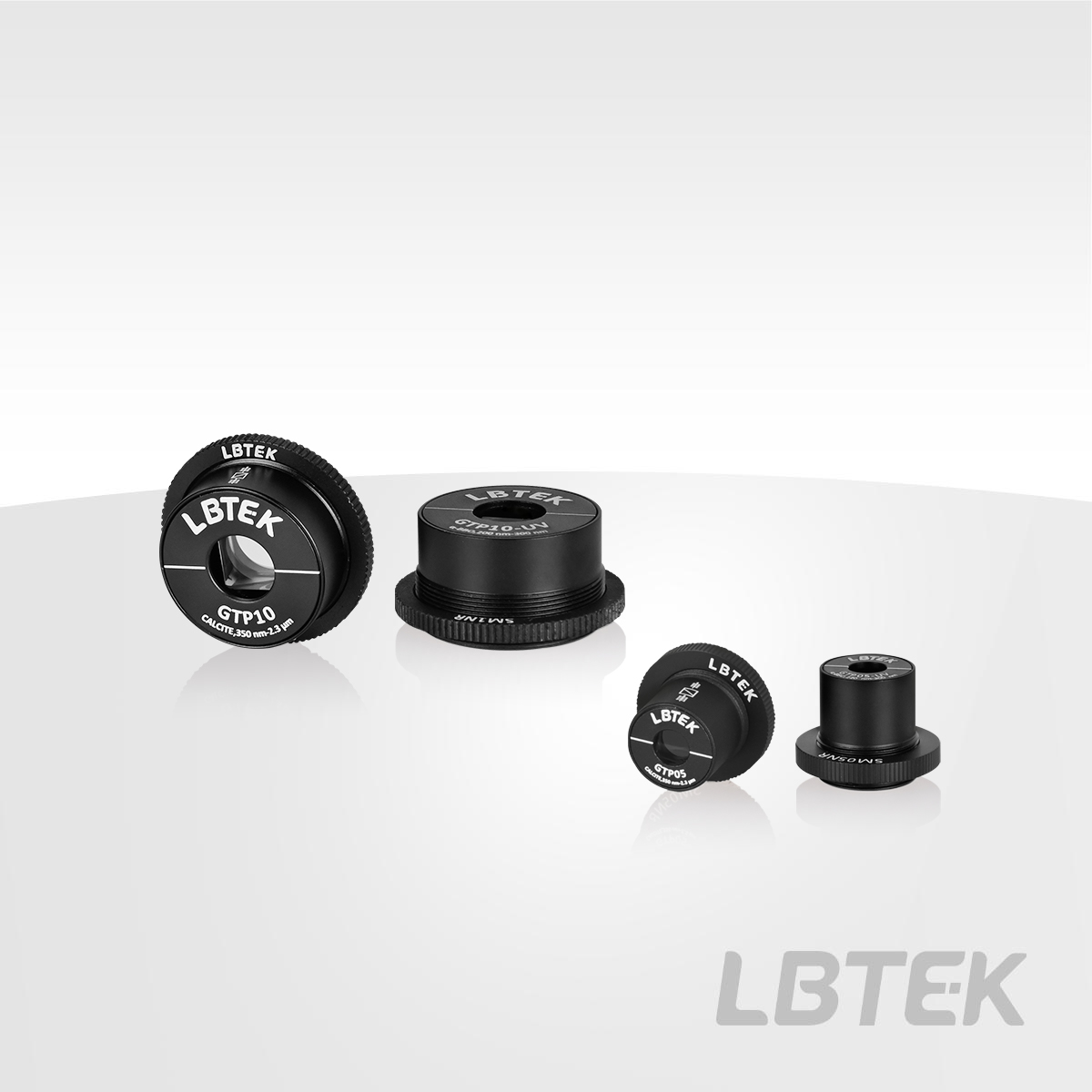

Air-spaced design for handling higher power applications

Pre-installed in a black anodized mechanical housing

A beam of linearly polarized light with a high extinction ratio obtained at the transmission port when the unpolarized light is incident, which is the extraordinary light; all ordinary light and part of the extraordinary light contained in the emergent light at the reflection port

Air-spaced design for handling higher power applications

Pre-installed in a black anodized mechanical housing
